💡 LED Machine Tool Lights
IP67 waterproof gooseneck LED work lights with magnetic base — four power options for every machining application.
- Power5W
- Brightness500 lm
- Gooseneck300 mm
- VoltageDC 12-24V
- ProtectionIP67
- Power10W
- Brightness1000 lm
- Gooseneck400 mm
- VoltageDC 12-24V
- ProtectionIP67
- Power15W
- Brightness1800 lm
- Gooseneck400 mm
- VoltageDC 12-24V
- ProtectionIP67
- Power20W
- Brightness2600 lm
- Gooseneck400 mm
- VoltageDC 24V
- ProtectionIP67
| Parameter | CNC-5W | CNC-10W | CNC-15W | CNC-20W |
|---|---|---|---|---|
| Power | 5W | 10W | 15W | 20W |
| Luminous Flux | 500 lm | 1000 lm | 1800 lm | 2600 lm |
| Color Temperature | 6000K (Daylight White) | |||
| CRI | Ra≥80 | Ra≥80 | Ra≥85 | Ra≥85 |
| Input Voltage | DC 12-24V | DC 12-24V | DC 12-24V | DC 24V |
| Protection Rating | IP67 | |||
| LED Lifespan | 50,000 hours | |||
| Gooseneck Length | 300 mm | 400 mm | 400 mm | 400 mm |
| Material | Aluminum Alloy + Stainless Steel | |||
| Mounting | Magnetic Base / Screw Fixing | |||
| Certification | CE, RoHS | |||
| Operating Temp | -20°C ~ +55°C | |||

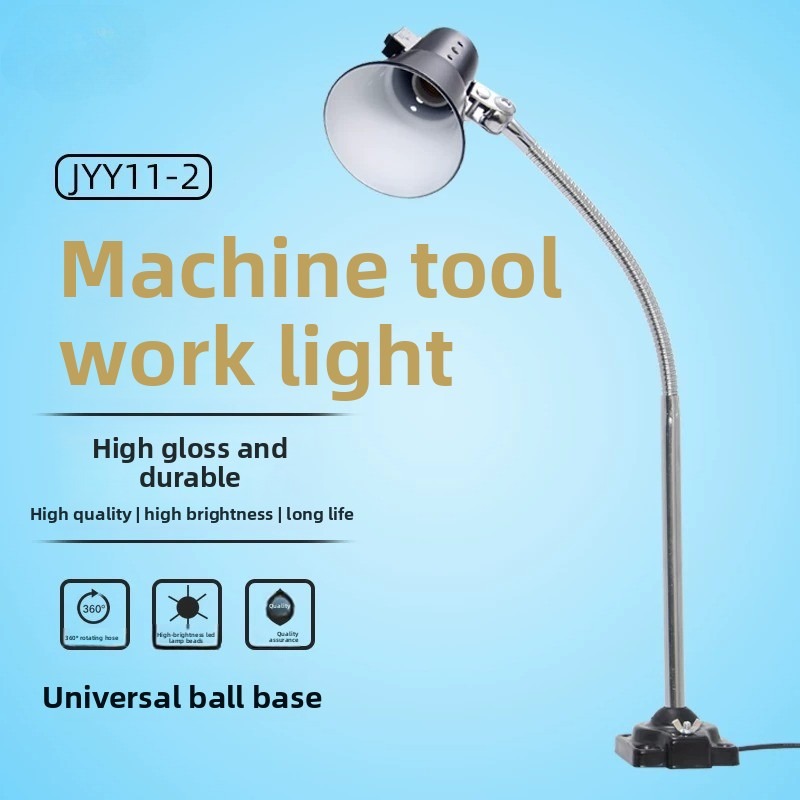

JYY11-2
LED Machine Tool Work Light — Flexible Gooseneck — E27 Base — DC24-36V

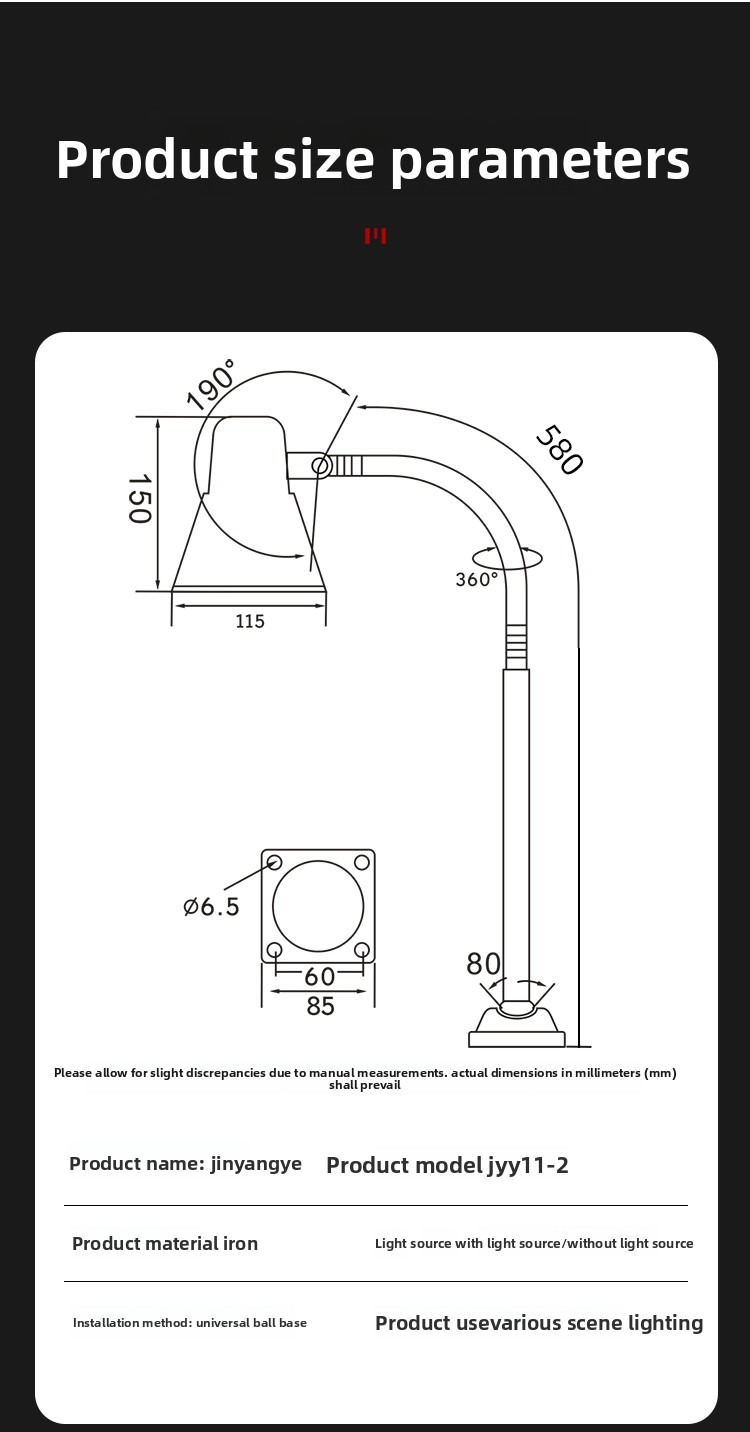

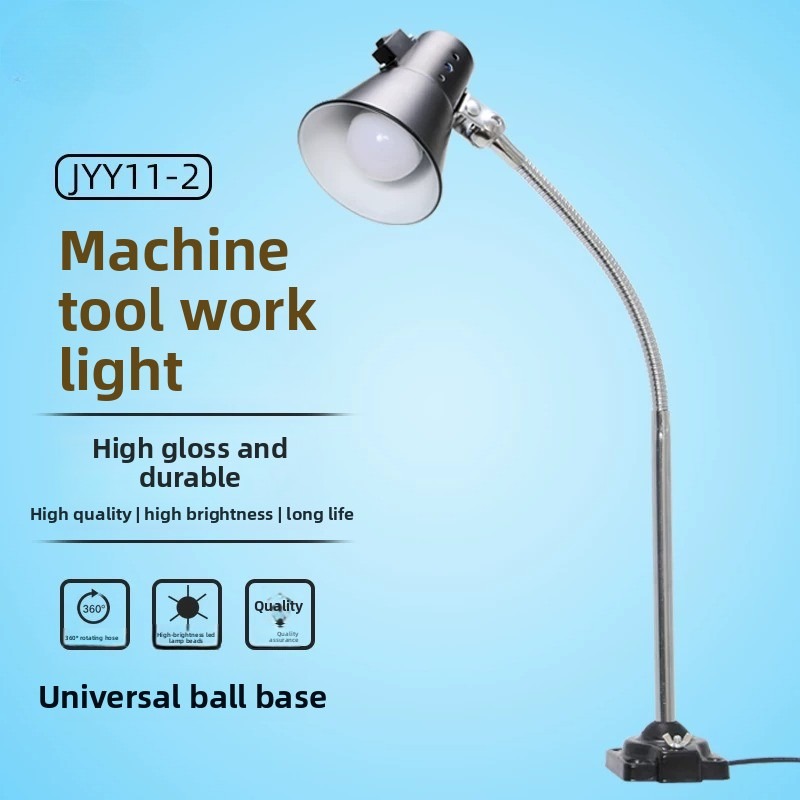

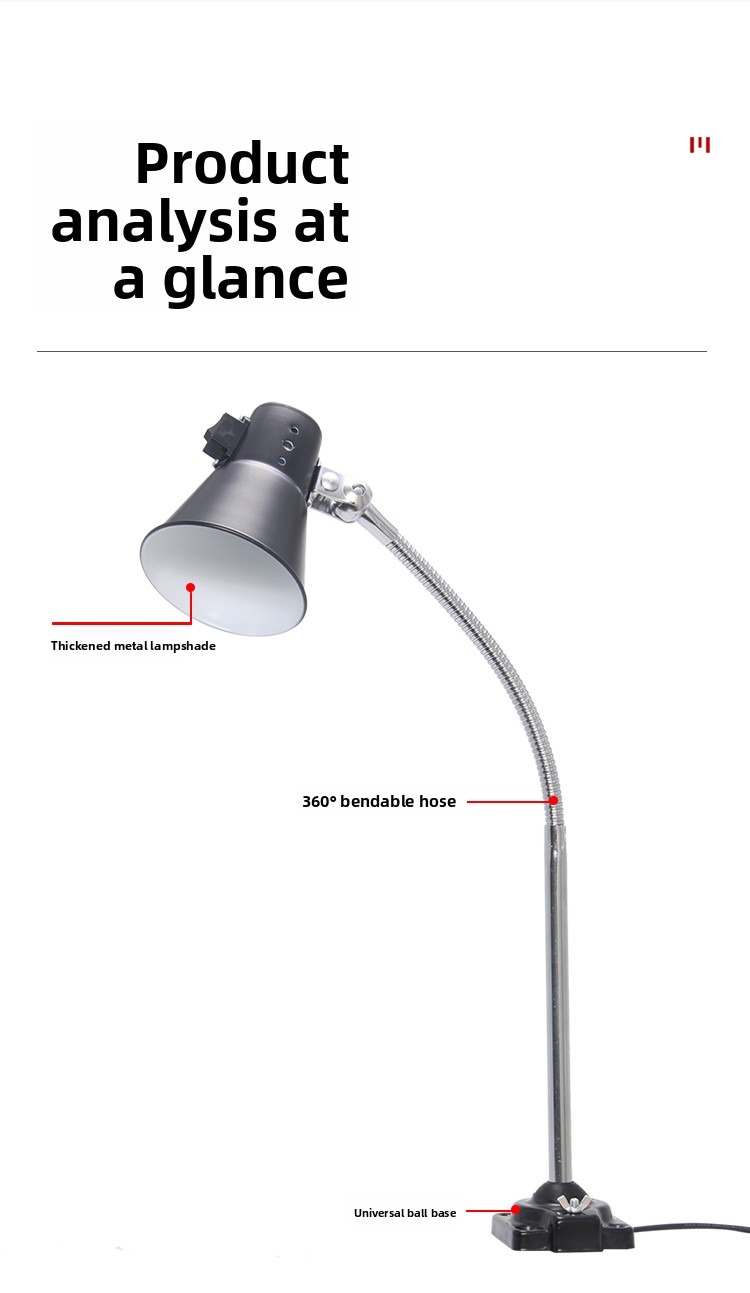

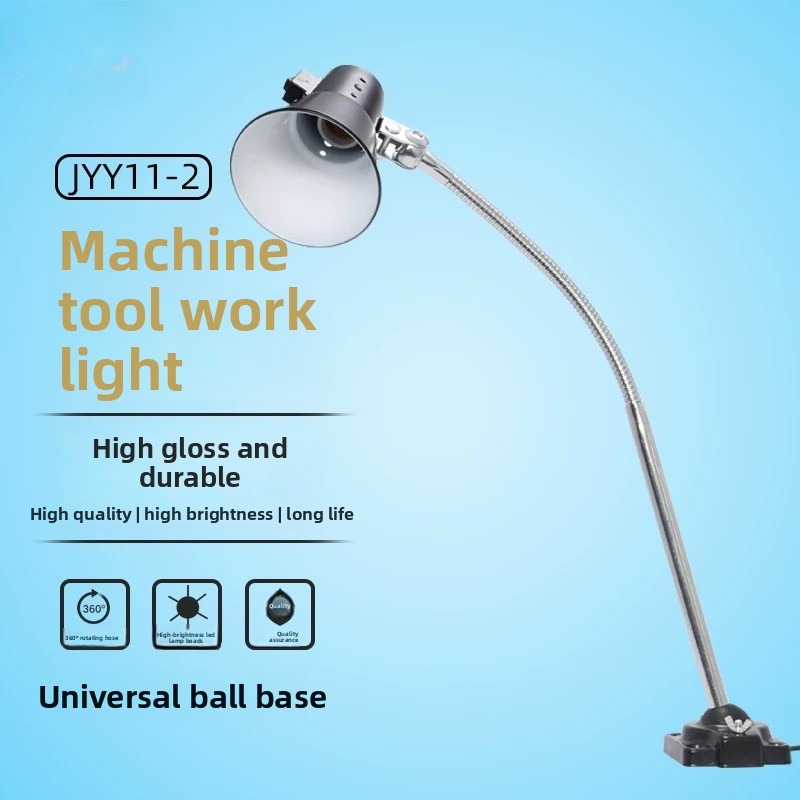

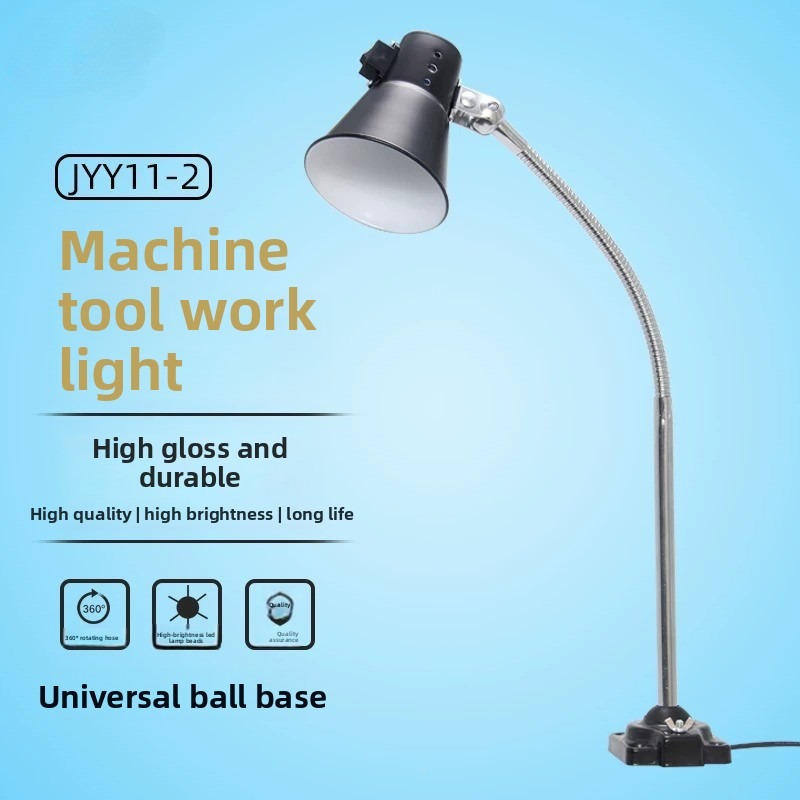

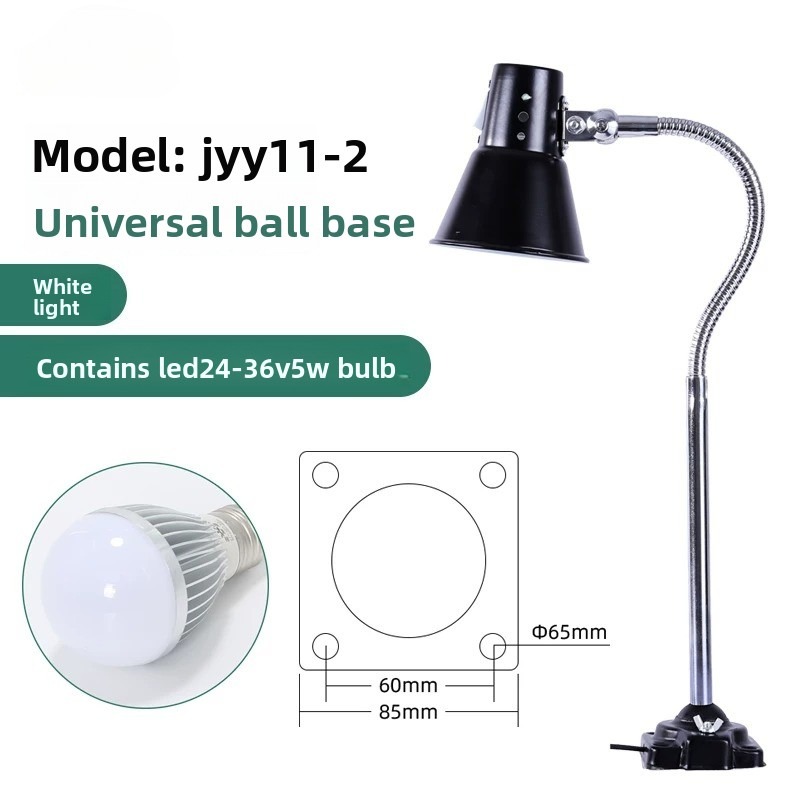

JYY11-2 LED Machine Tool Work Light
Professional flexible gooseneck LED work light designed for CNC machines, lathes, milling machines, and workshop workbenches. Features a universal ball mount base with screw fixation, 360° bendable metal hose, and standard E27 screw lamp holder. Thickened iron lampshade provides focused auxiliary lighting. Available with or without E27 LED bulb (DC24-36V, 5W).
- Light source: E27 LED bulb (DC24-36V, 5W)

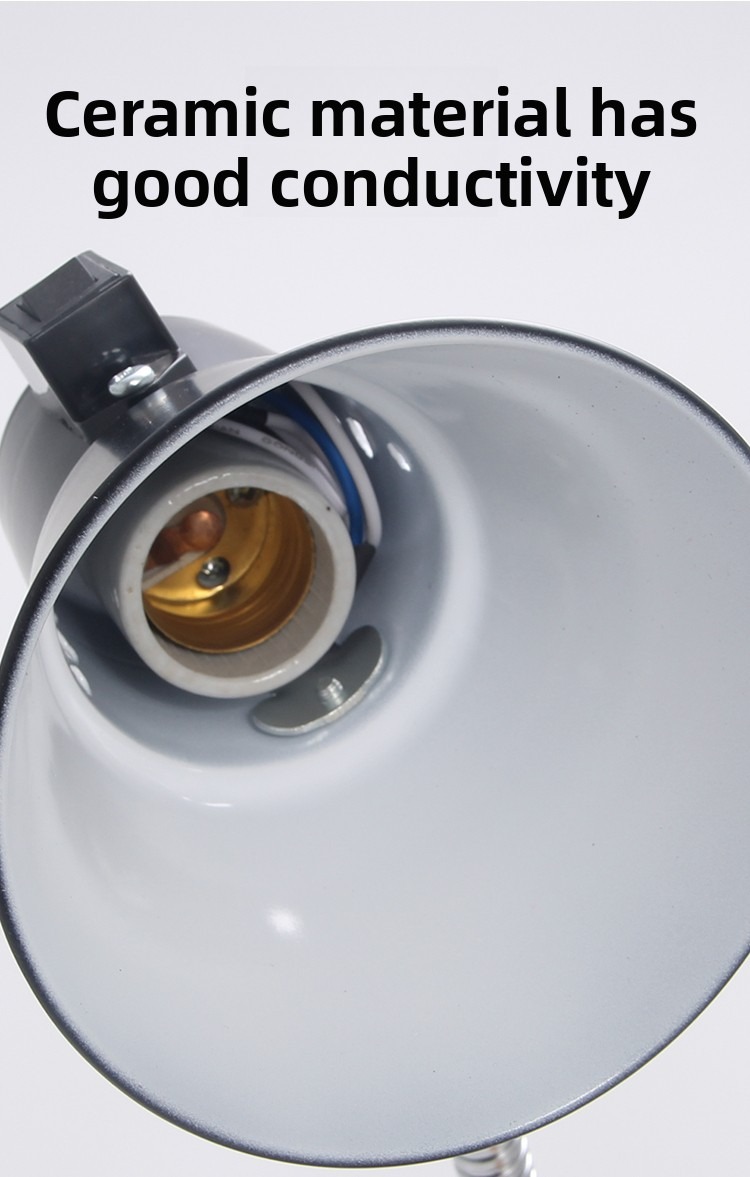

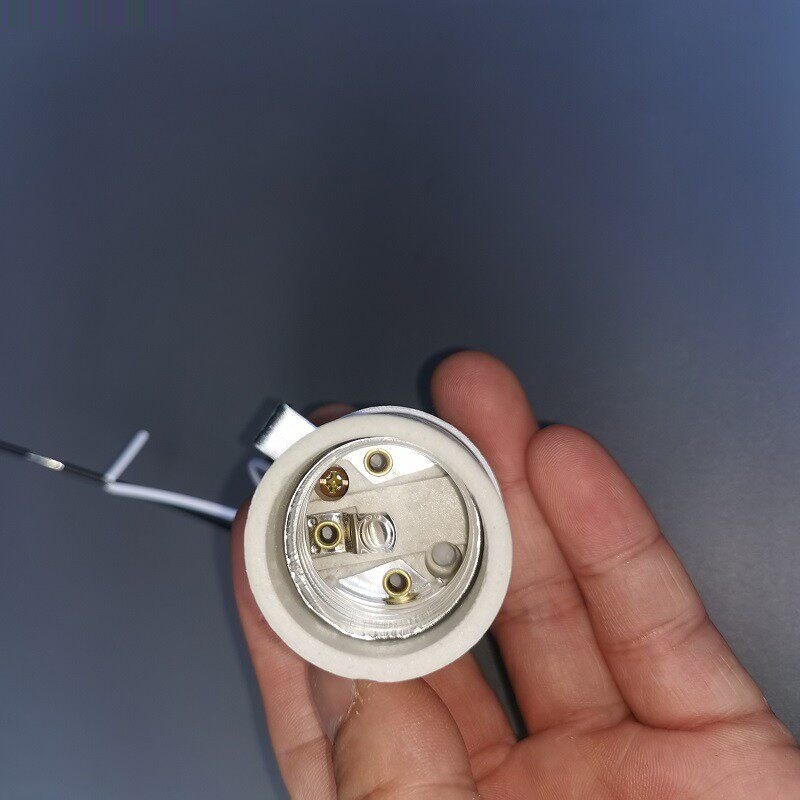

- Lamp holder: E27 screw base (ceramic socket)
- Arm: 360° bendable metal gooseneck

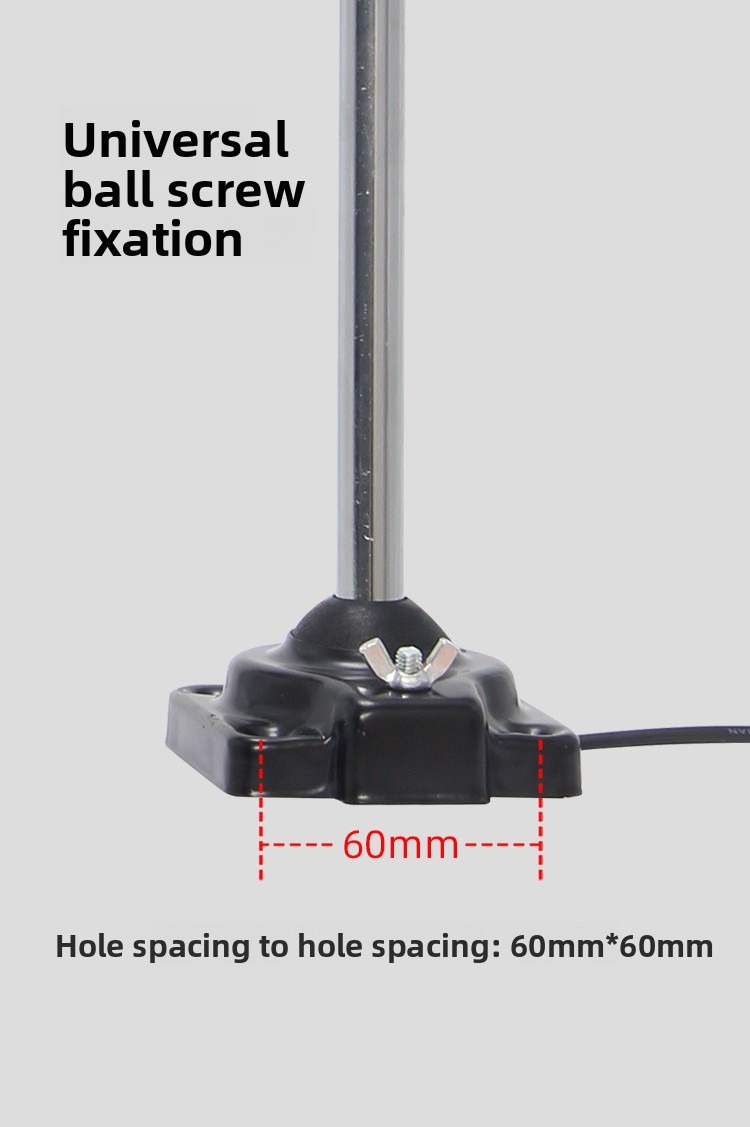

- Base: Universal ball screw fixation
- Base size: 85mm × 60mm (hole spacing 60mm)

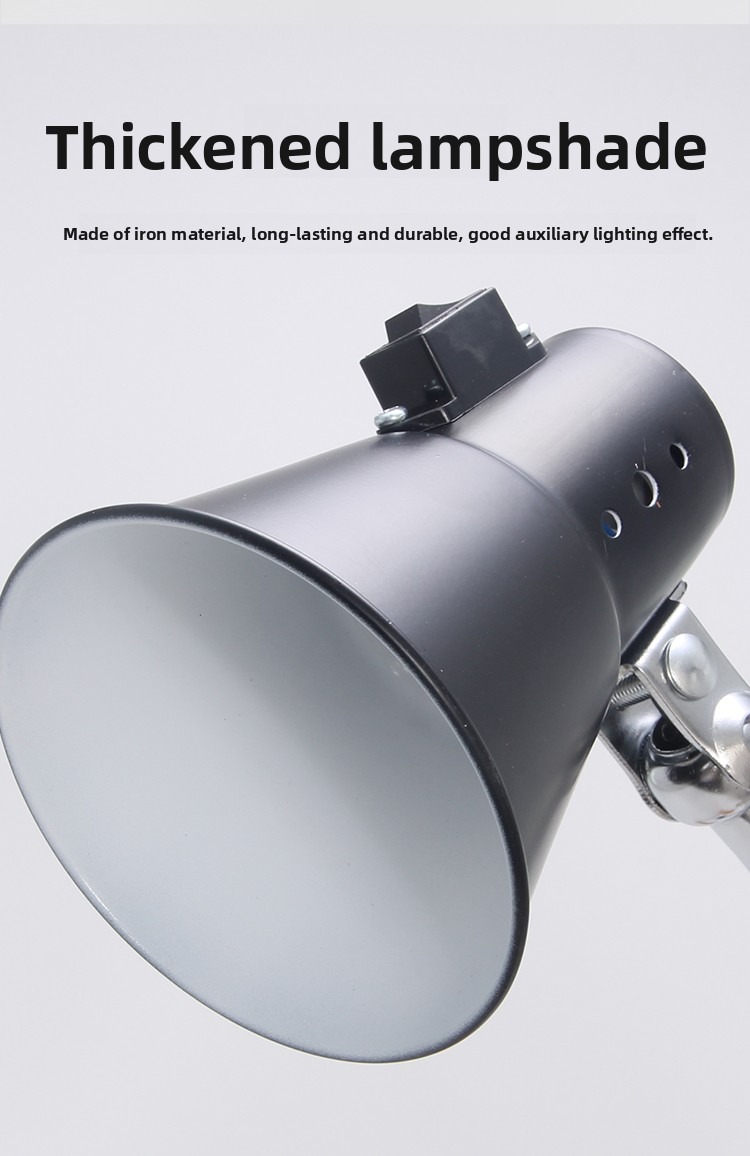

- Max reach: ~580mm | Lampshade: thickened iron
- Light color: White | Voltage: DC24-36V
| Parameter | JYY11-2 |
|---|---|
| Model | JYY11-2 |
| Type | LED Machine Tool Work Light |
| Light Source | E27 LED bulb (optional) |
| Voltage | DC24-36V |
| Power | 5W |
| Light Color | White |
| Lamp Holder | E27 screw base (ceramic) |
| Lampshade | Thickened iron (metal) |
| Hose | Flexible metal, 360° bendable |
| Base | Universal ball screw fixation |
| Base Size | 85mm × 60mm |
| Hole Spacing | 60mm × 60mm |
| Max Reach | ~580mm |
Product Gallery
H10
Embedded LED Work Light — 14W — IP68 — AC220V/DC24V — 330mm / 530mm

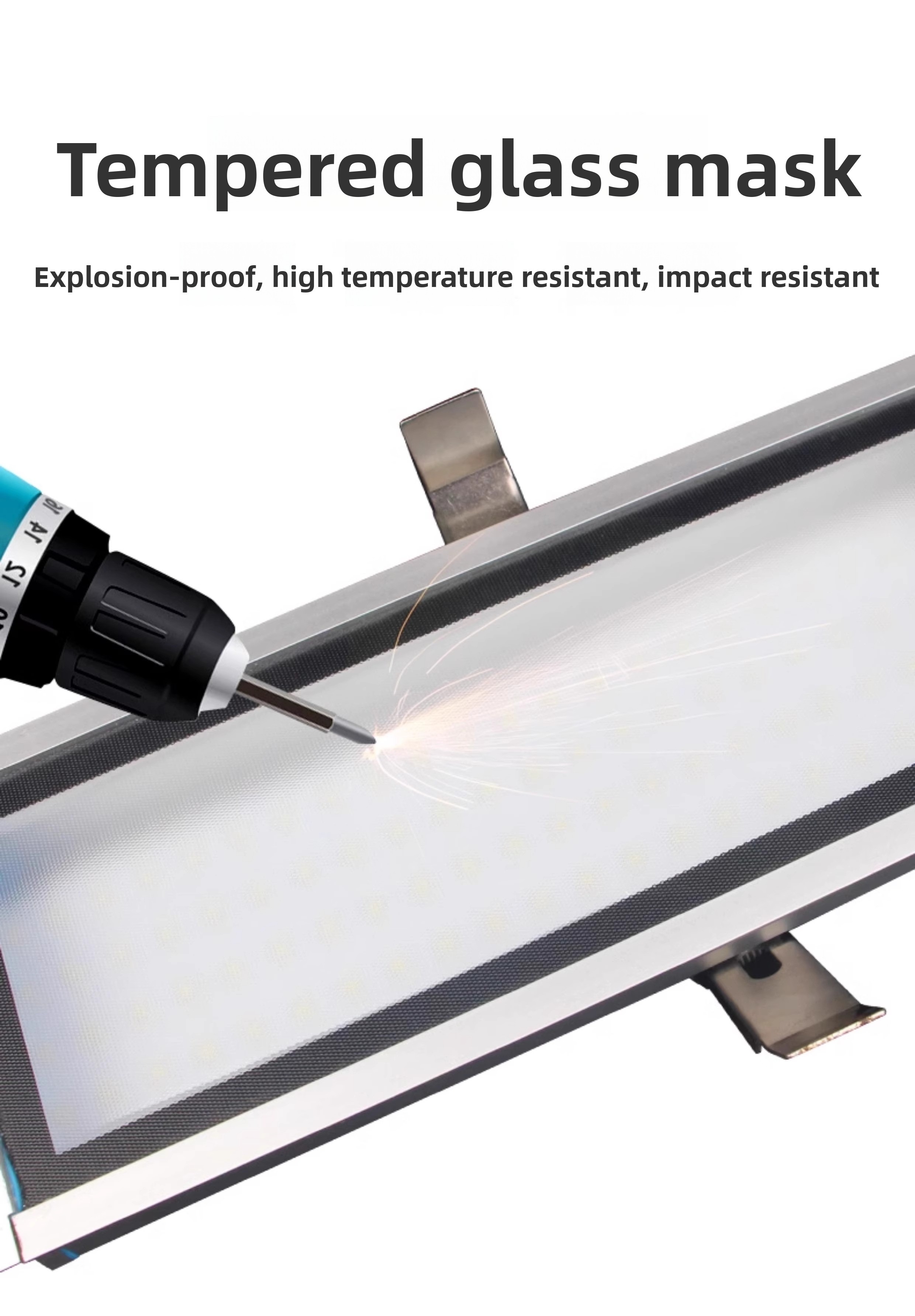

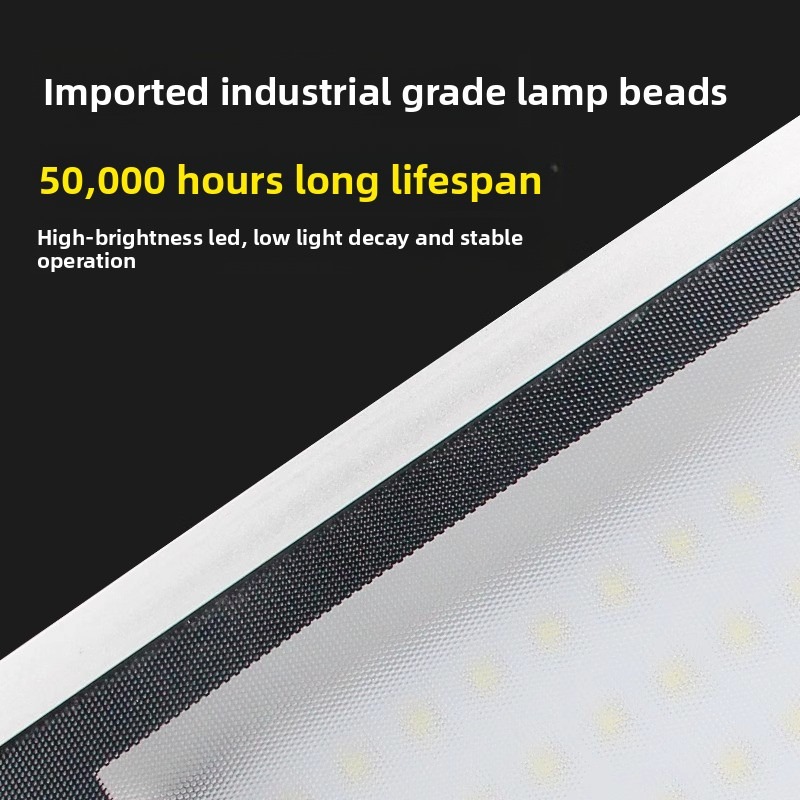

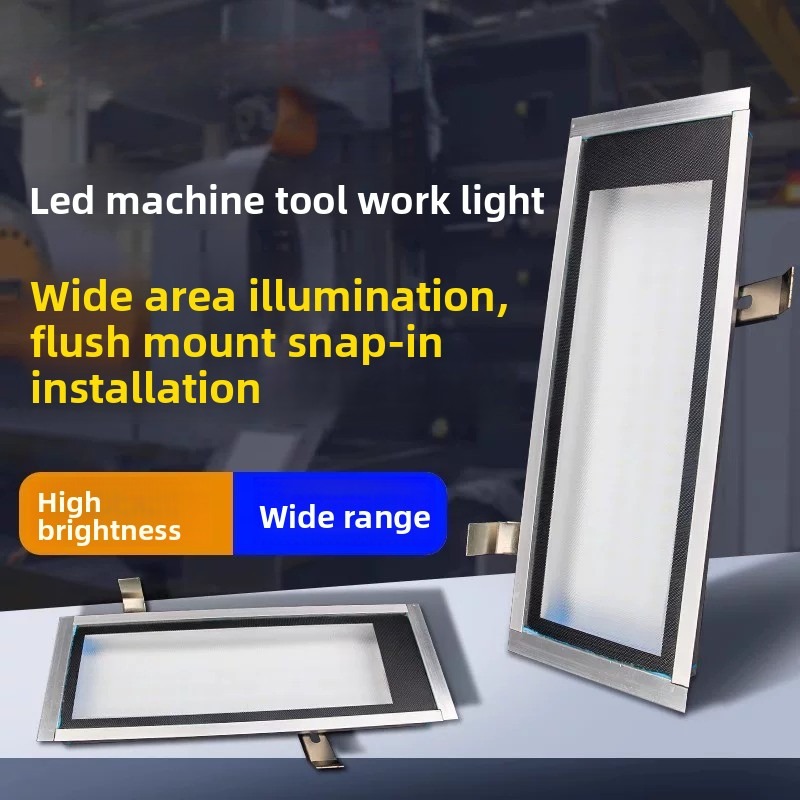

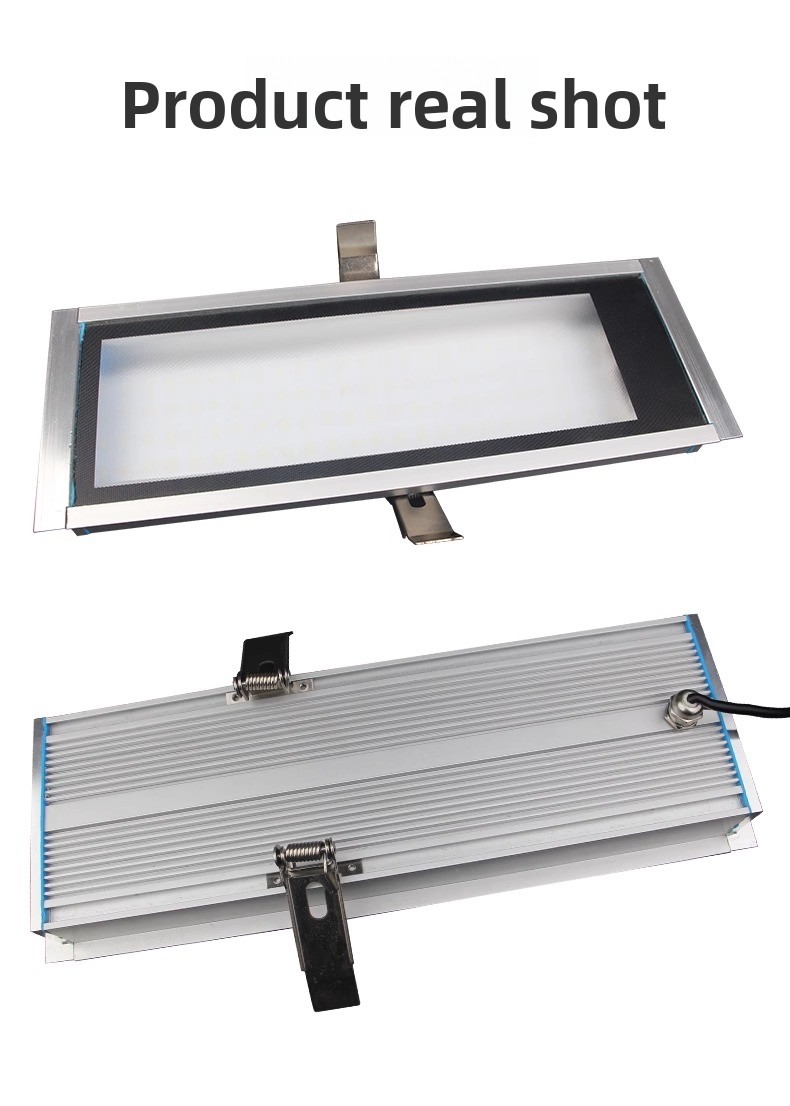

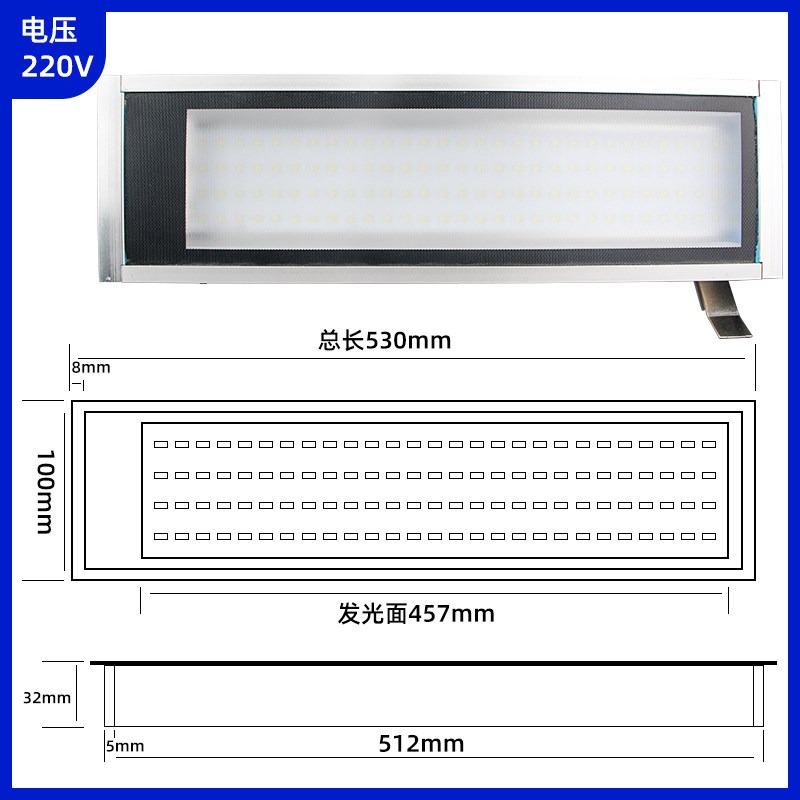

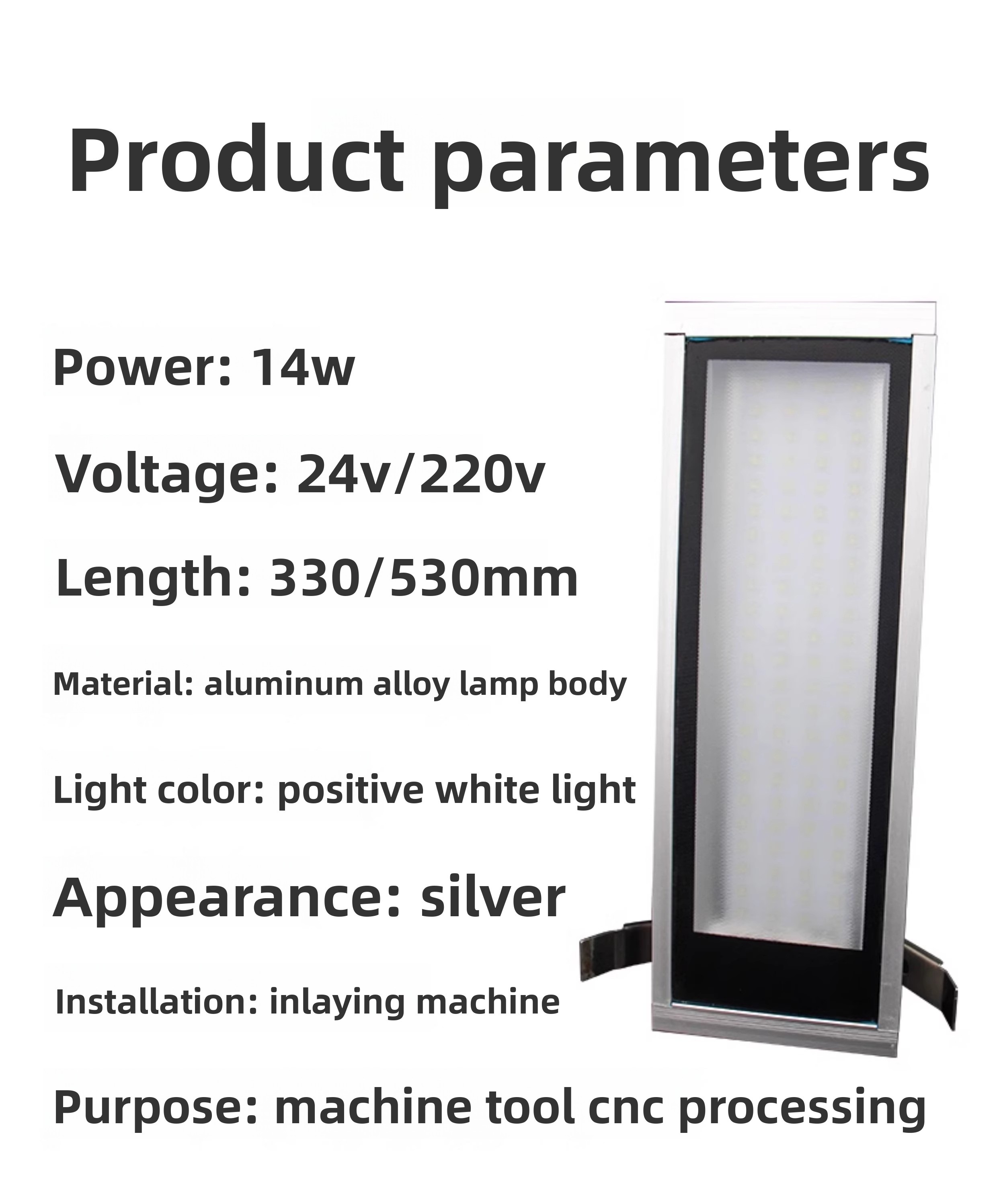

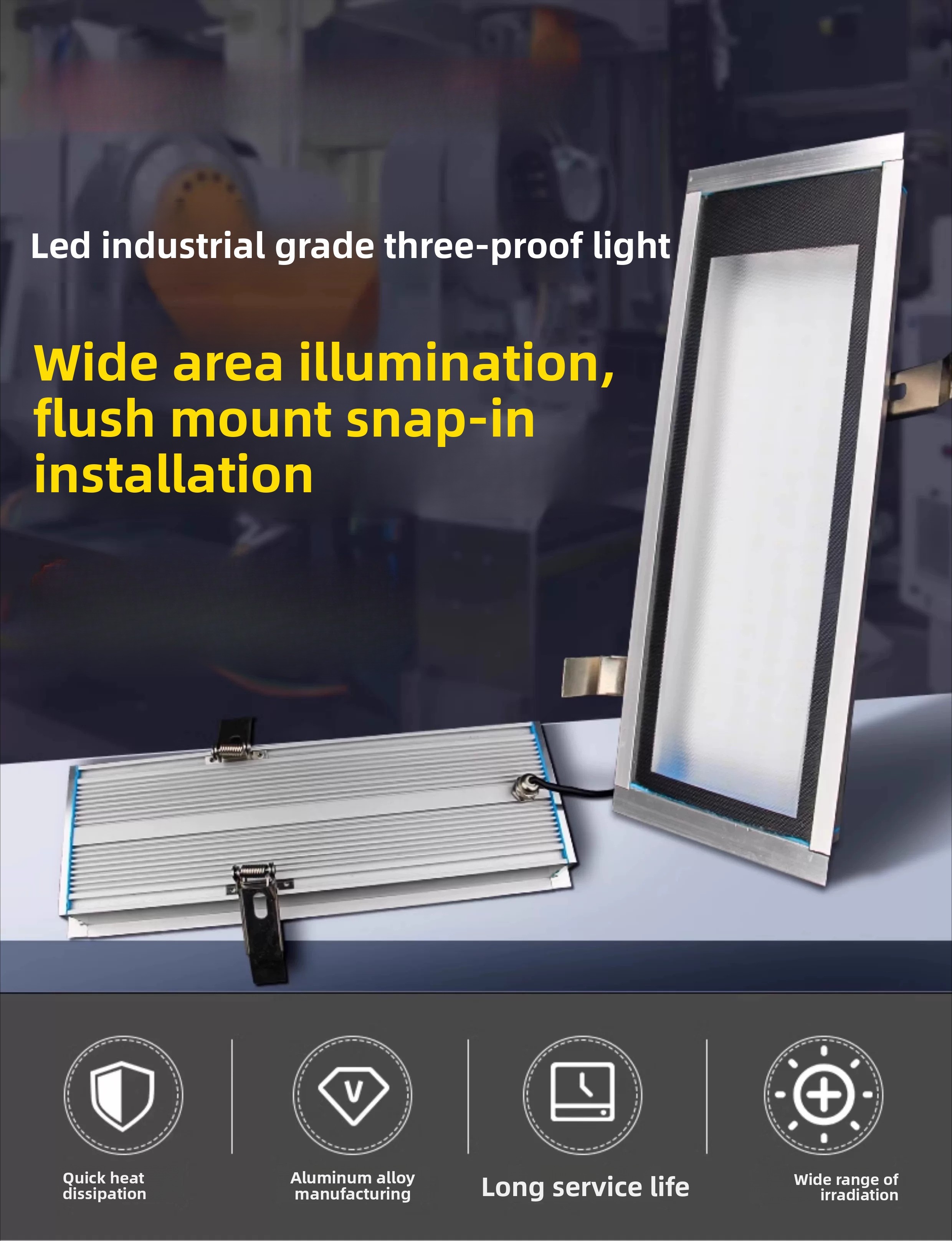

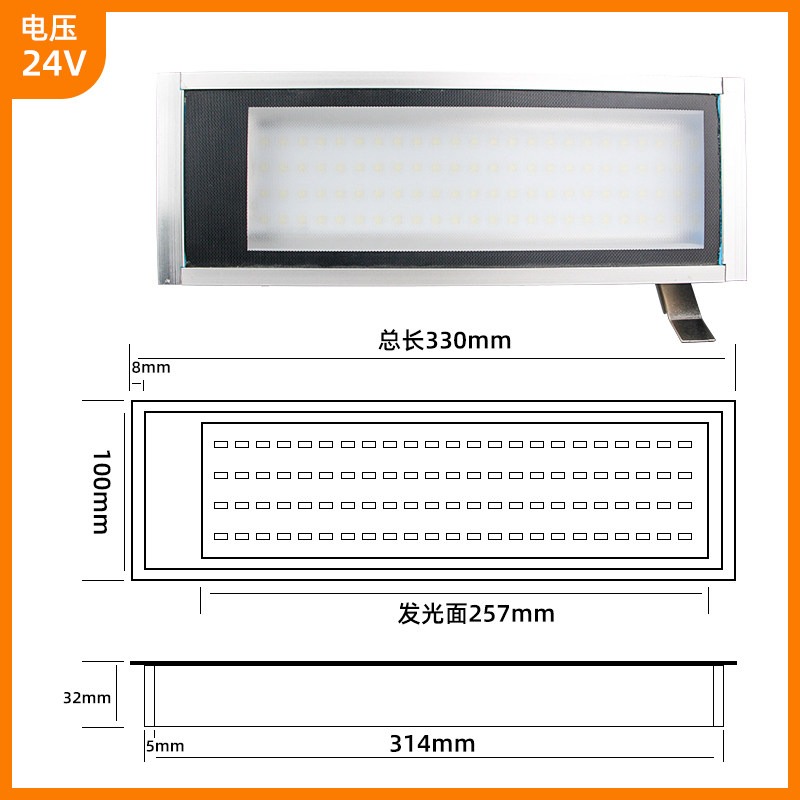

H10 Embedded LED Machine Tool Work Light
Professional embedded/inlay LED work light designed for CNC machines, lathes, and milling machines. Features IP68 waterproof and dustproof protection with a thickened aluminum alloy housing and tempered glass faceplate. Dual voltage compatibility (AC220V / DC24V) with two size options (330mm / 530mm) and two power options (14W / 20W). The flush-mount design saves space while providing wide, high-brightness illumination.
- Power: 14W / 20W (select when ordering)
- Voltage: AC220V or DC24V (specify when ordering)
- Protection: IP68 (waterproof, oil proof, dustproof)
- Material: Thickened aluminum alloy + tempered glass

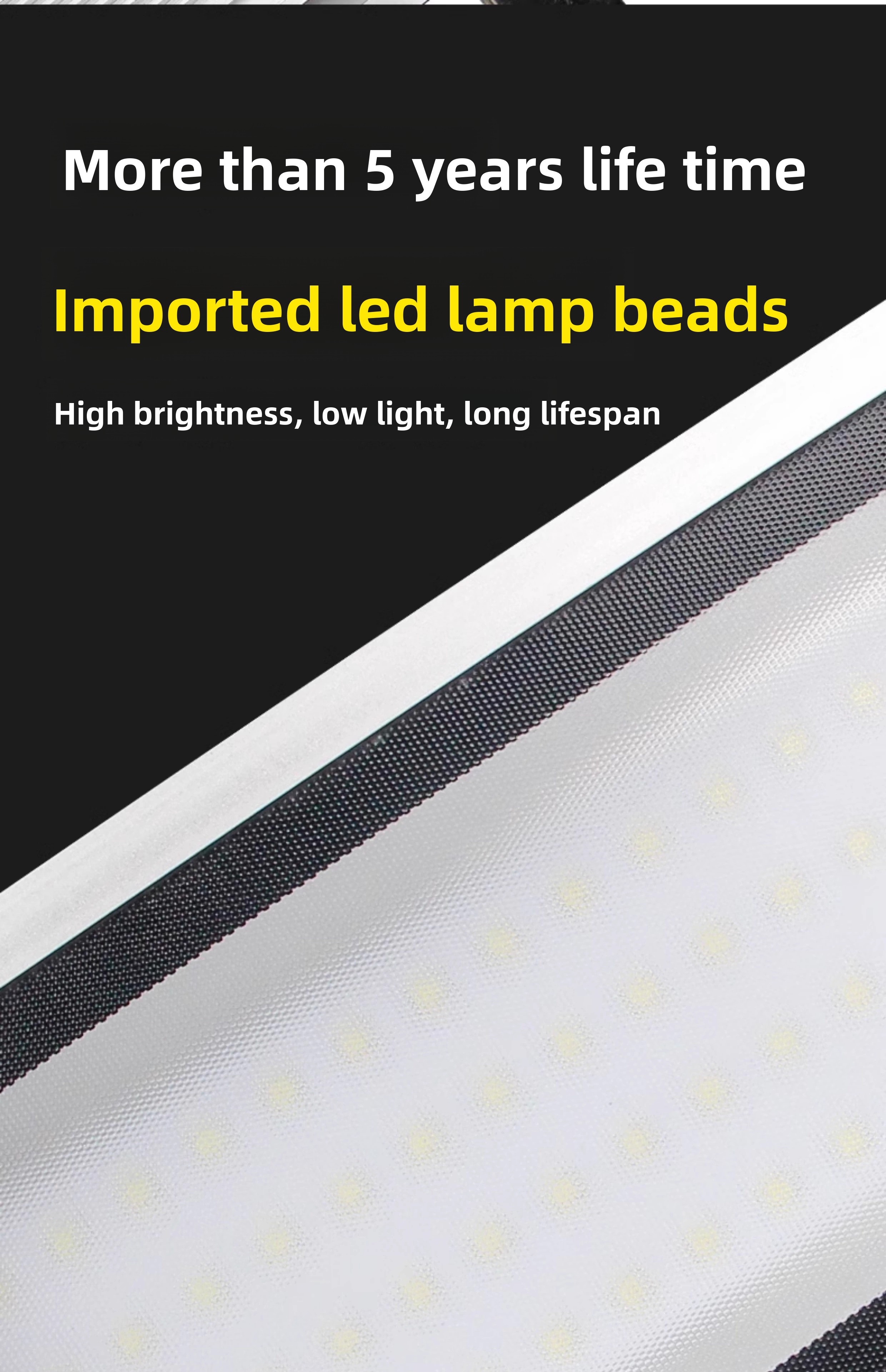

- LED lifespan: 50,000+ hours | Imported industrial-grade chips

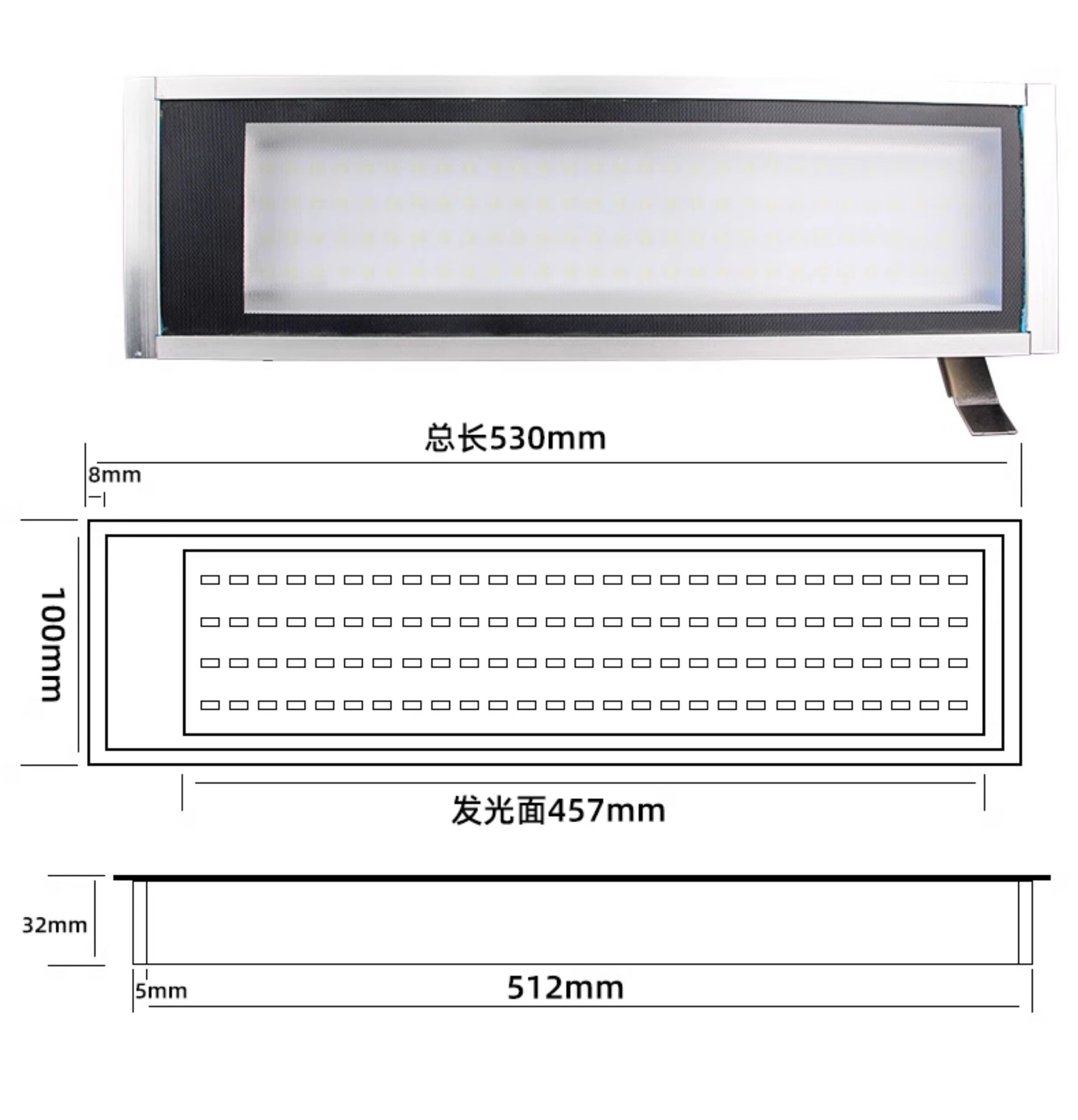

- Sizes: 330mm (luminous 257mm) or 530mm (luminous 457mm)
- Installation: Embedded inlay mount with spring clips
- Features: Explosion-proof, anti-corrosion, high-temp resistant
| Parameter | H10-330 | H10-530 |
|---|---|---|
| Model | H10-330 | H10-530 |
| Type | Embedded LED Machine Tool Work Light | |
| Power | 14W / 20W (select when ordering) | |
| Voltage | AC220V 50/60Hz or DC24V | |
| Light Color | Cool White (Positive White) | |
| Total Length | 330mm | 530mm |
| Luminous Surface | 257mm | 457mm |
| Height | 100mm | |
| Thickness | 32mm | |
| Material | Aluminum Alloy + Tempered Glass | |
| Protection Rating | IP68 | |
| LED Lifespan | 50,000+ Hours | |
| LED Chip | Imported Industrial-Grade | |
| Installation | Embedded Inlay Mounting | |
| Housing Color | Silver | |
| Operating Temp | -20°C ~ +50°C | |
Product Gallery

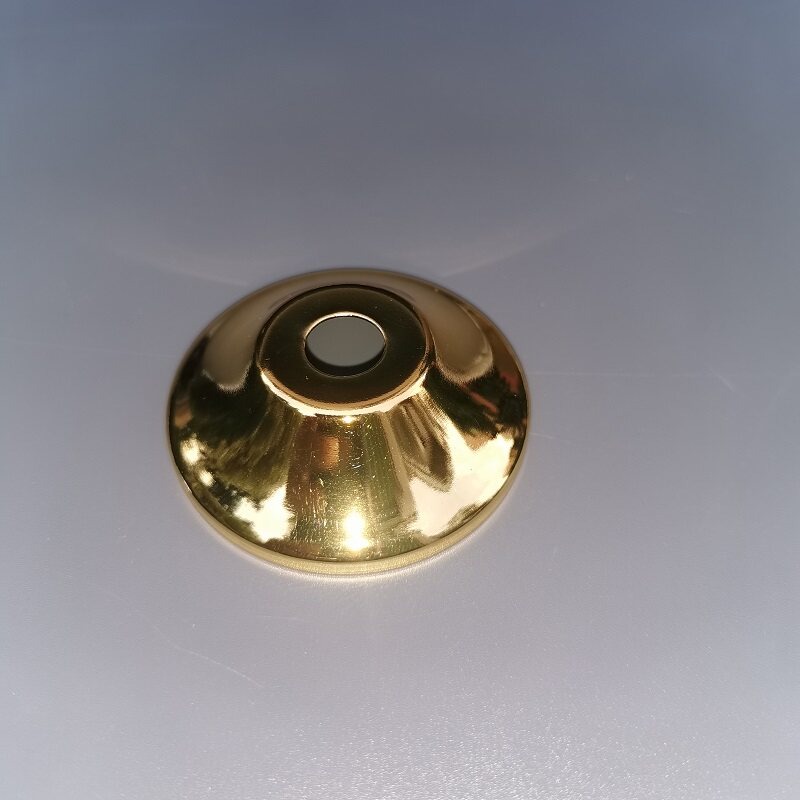

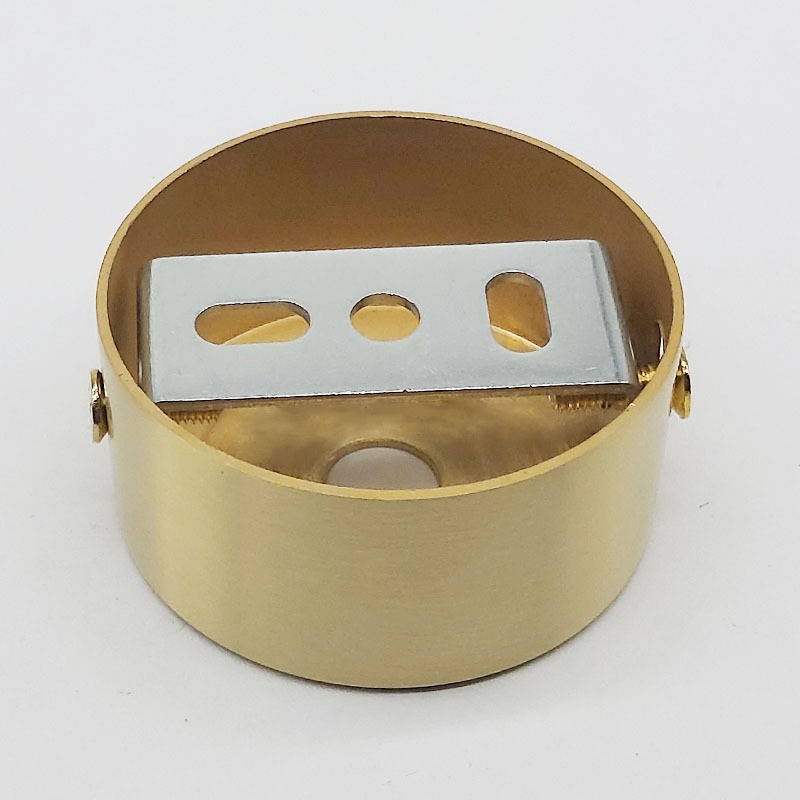

Copper Ceiling Mount Base
Solid Brass Ceiling Plate — 50mm x 25mm — Hanging Board + Fixing Screws — for LED Work Lights

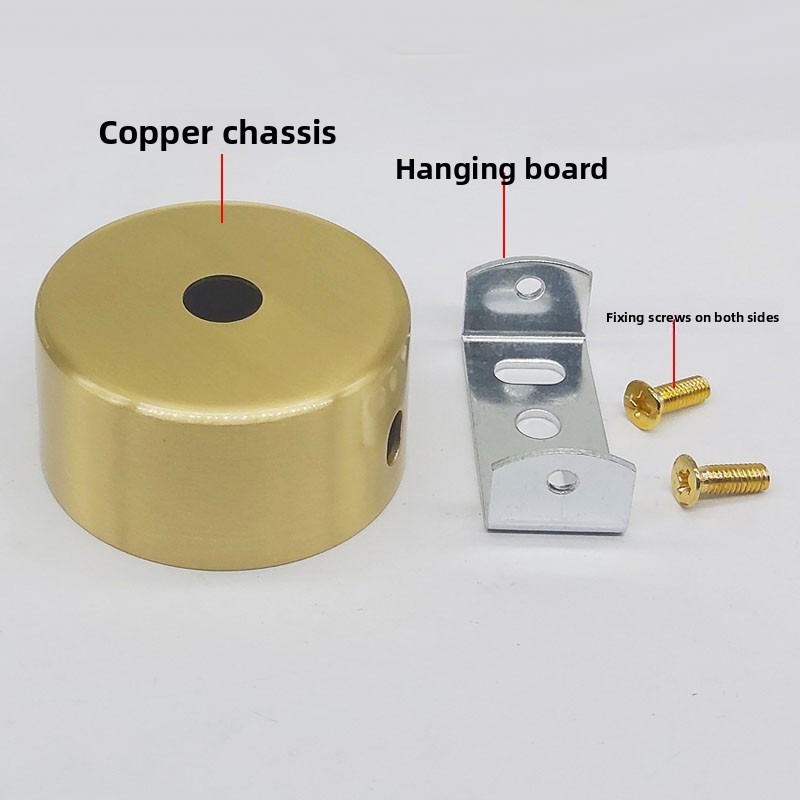

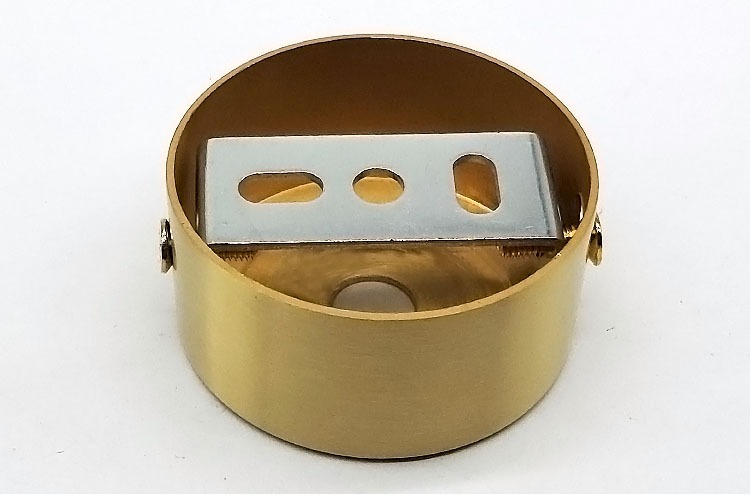

Copper Ceiling Mount Base — Brass Ceiling Plate for Machine Lights

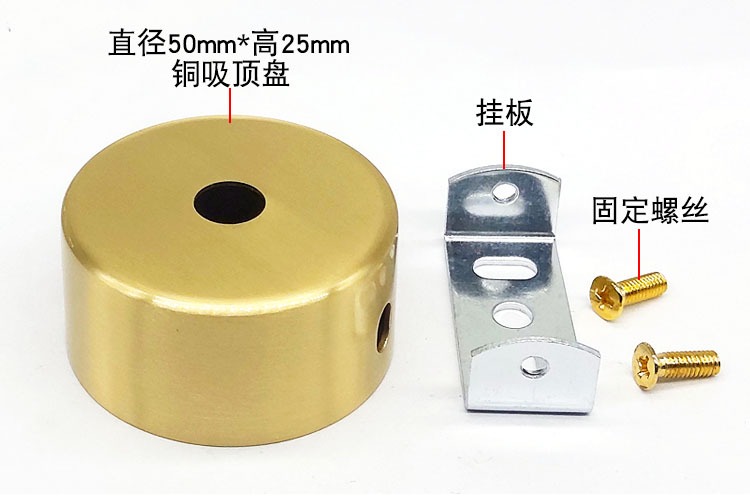

Solid brass ceiling mount base (50mm x 25mm) designed for installing LED work lights, machine lamps, and pendant lights on ceilings or walls. Copper construction with an L-shaped hanging board and fixing screws on both sides ensures a secure, stable installation for industrial lighting in workshops, CNC machines, and production lines.
- Material: Solid brass (copper alloy), golden finish
- Size: 50mm diameter x 25mm height
- Hanging board included — fixing screws on both sides

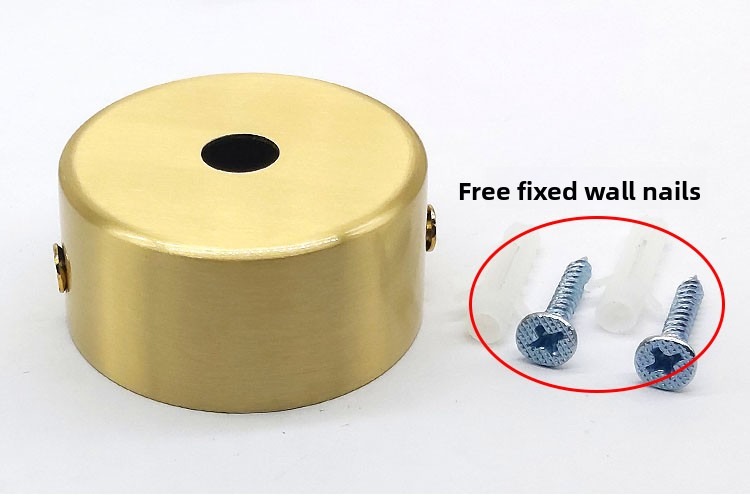

- Free wall nails included for quick mounting
- Corrosion resistant, premium brass finish
- Mounting: ceiling, wall, or machine frame

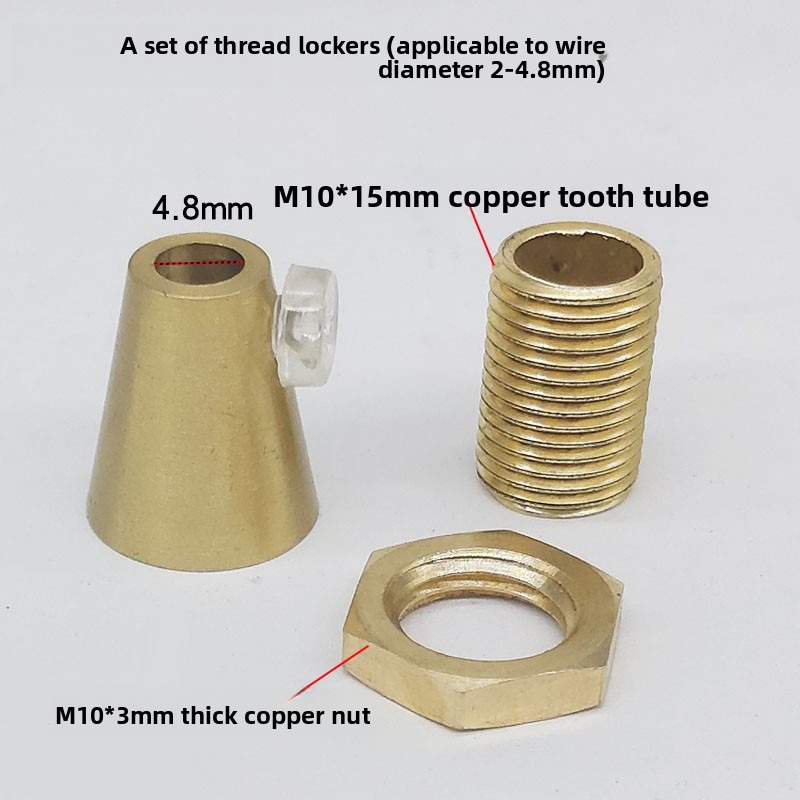

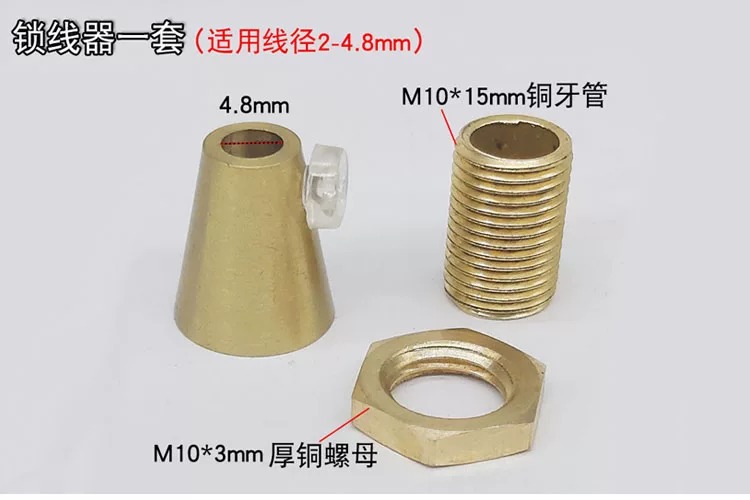

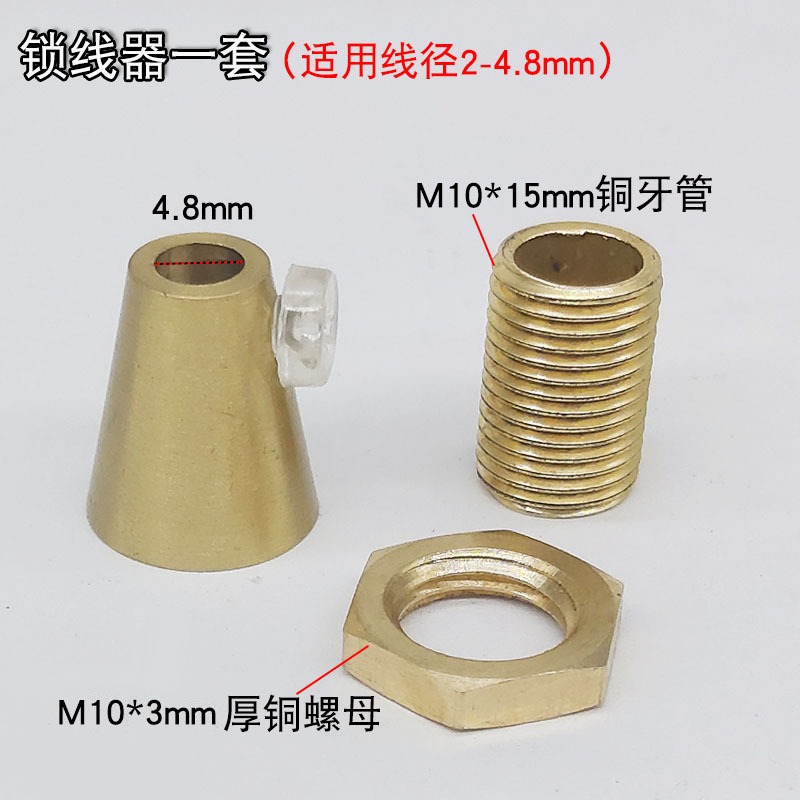

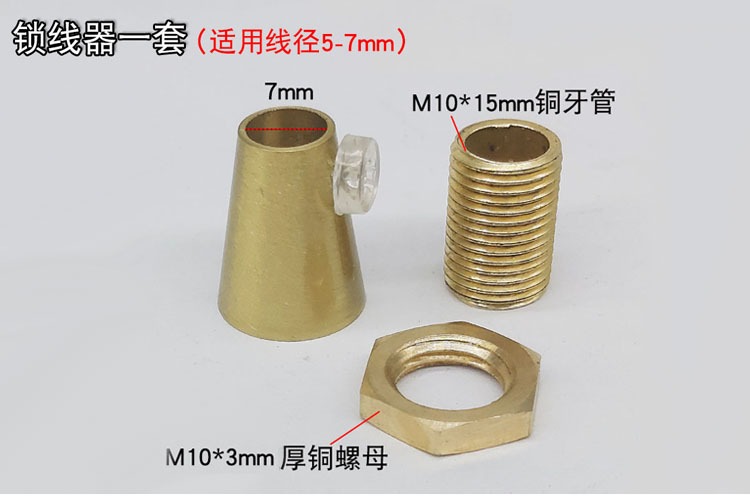

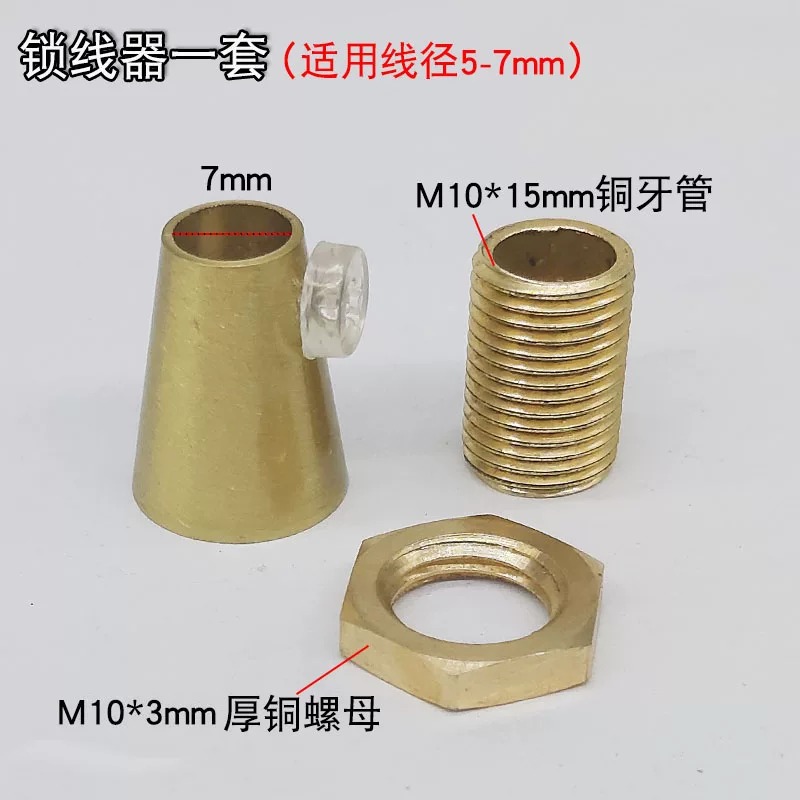

- Optional: Copper thread locker (M10, fits wire 2-4.8mm / 5-7mm, sold separately)
| Parameter | Specification |
|---|---|
| Model | Copper Ceiling Mount Base |
| Material | Solid brass (copper alloy) |
| Diameter | 50mm |
| Height | 25mm |
| Mounting | Hanging board + fixing screws (both sides) |
| Accessories | Fixing screws, wall nails included |
| Color | Golden brass |
| Working Temp | -20°C ~ +80°C |
| Compatible With | LED work lights, machine lamps, pendant lamps |
| Optional Add-on | Copper thread locker (M10x15mm tube + M10x3mm nut, fits wire 2-4.8mm or 5-7mm, sold separately) |
Product Gallery

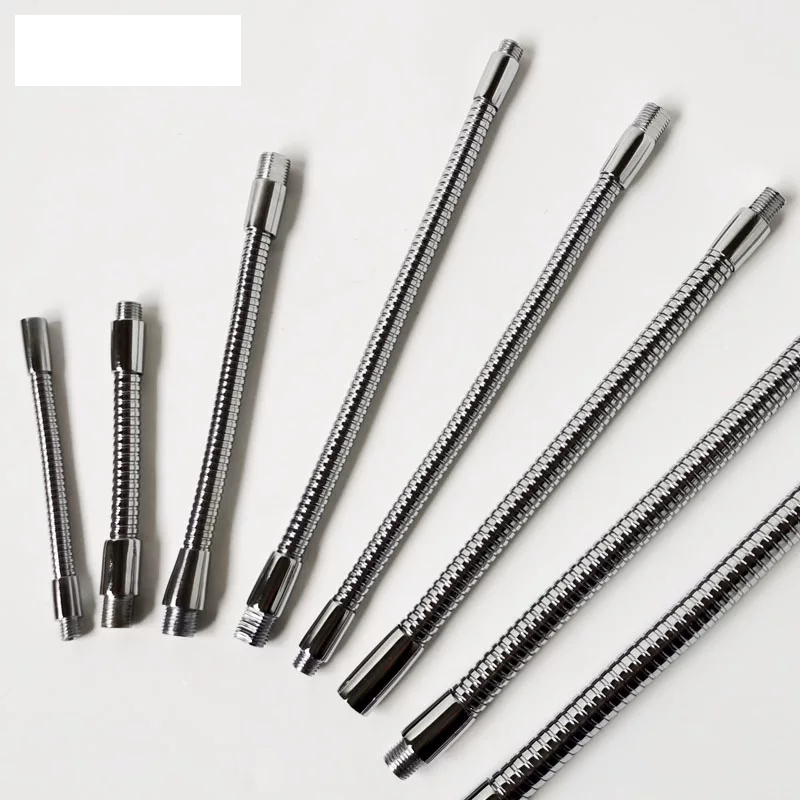

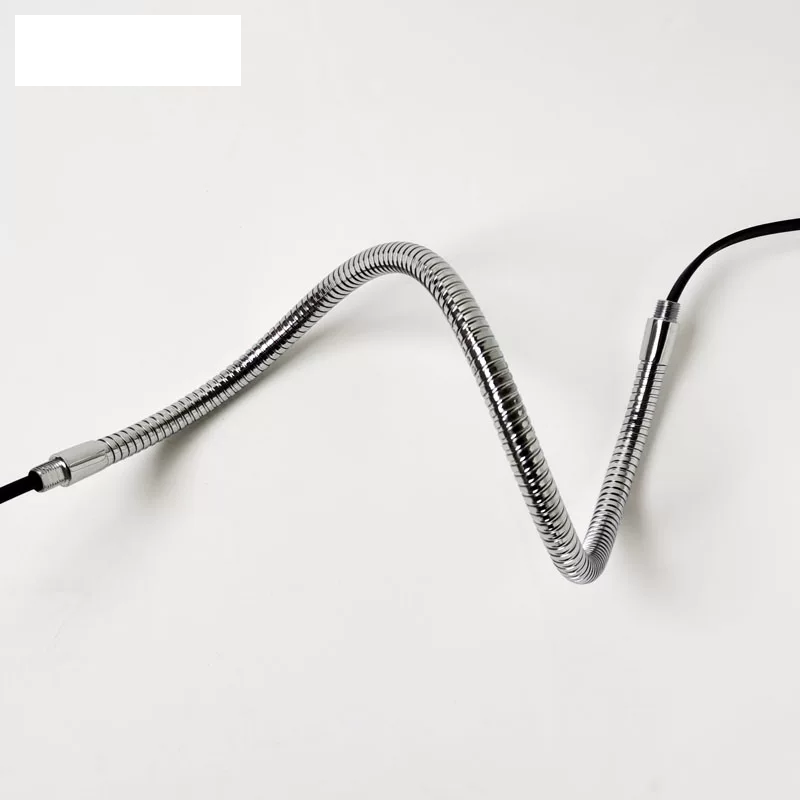

🔩 Metal Soft Tube
Stainless steel flexible conduit for LED machine tool light wiring and fluid routing. Freely bendable, strong load-bearing capacity.
Stainless Steel Flexible Conduit
Premium-grade stainless steel flexible conduit designed for CNC machine tool lighting installations. Freely bendable and re-positionable, with strong load-bearing capacity. Provides reliable protection for wiring and fluid lines in demanding industrial environments.
- Outer Diameter: 11mm / 12mm / 13mm / 17mm options

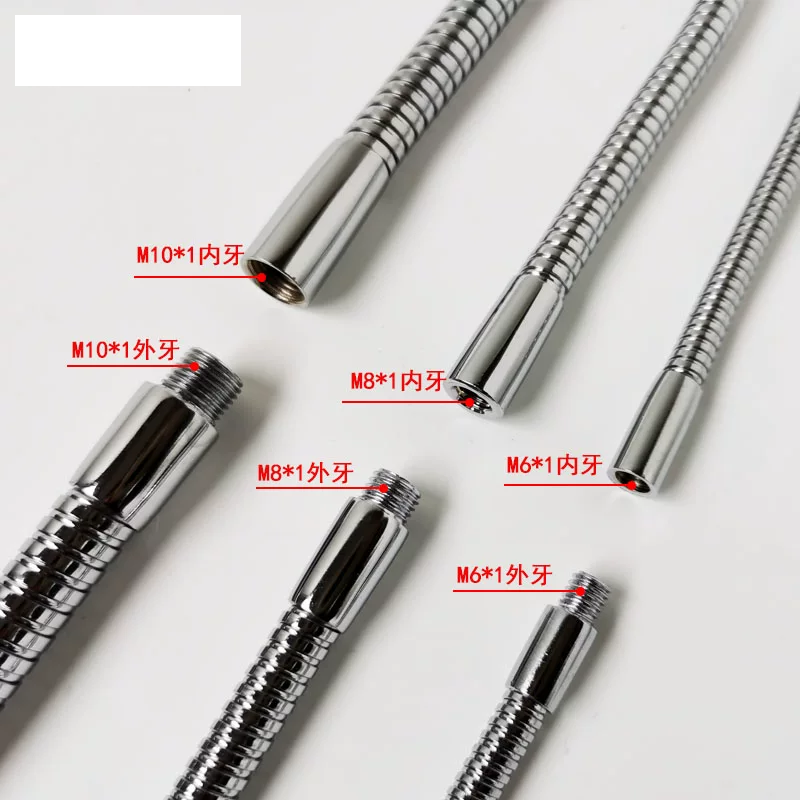

- Thread Options: M10×1, M8×1, M6×1 (inner & outer)
- Material: High-quality stainless steel
- Feature: Freely bendable, can be re-straightened without deformation
- Adapter: M10 inner thread can convert to M10 or M8 outer thread
- Application: LED work light wiring, fluid routing, cable protection
- Outer Dia.11 mm
- Inner ThreadM6×1 / M8×1
- Outer ThreadM6×1 / M8×1
- MaterialStainless Steel
- Outer Dia.12 mm
- Inner ThreadM8×1 / M10×1
- Outer ThreadM8×1 / M10×1
- MaterialStainless Steel
- Outer Dia.13 mm
- Inner ThreadM10×1
- Outer ThreadM10×1
- MaterialStainless Steel
- Outer Dia.17 mm
- Inner ThreadM10×1
- Outer ThreadM10×1
- MaterialStainless Steel
RG008
Flexible Gooseneck Tube with Magnetic Base — M8 / M12 / M18 Thread — Chrome — For Proximity Sensor Mounting

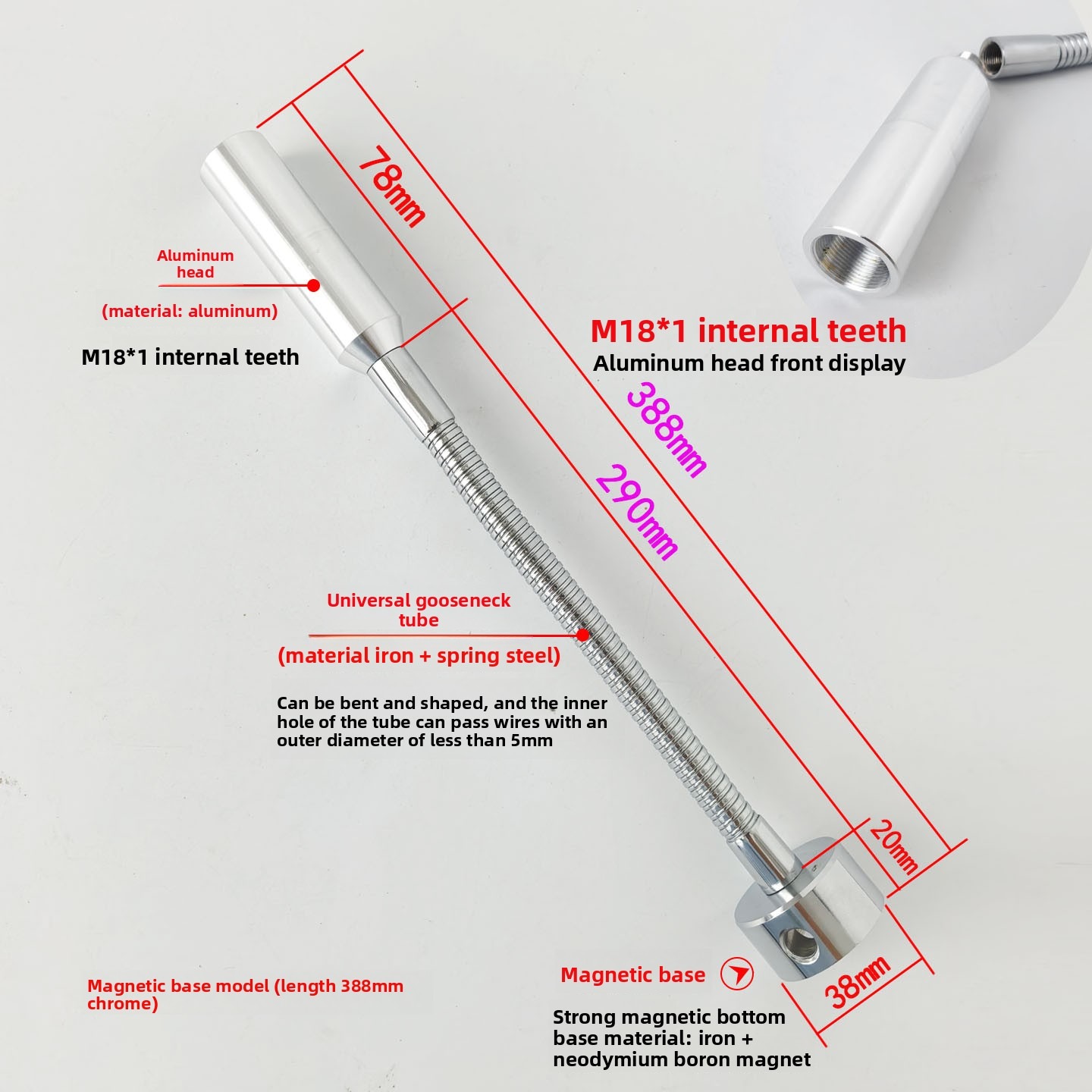

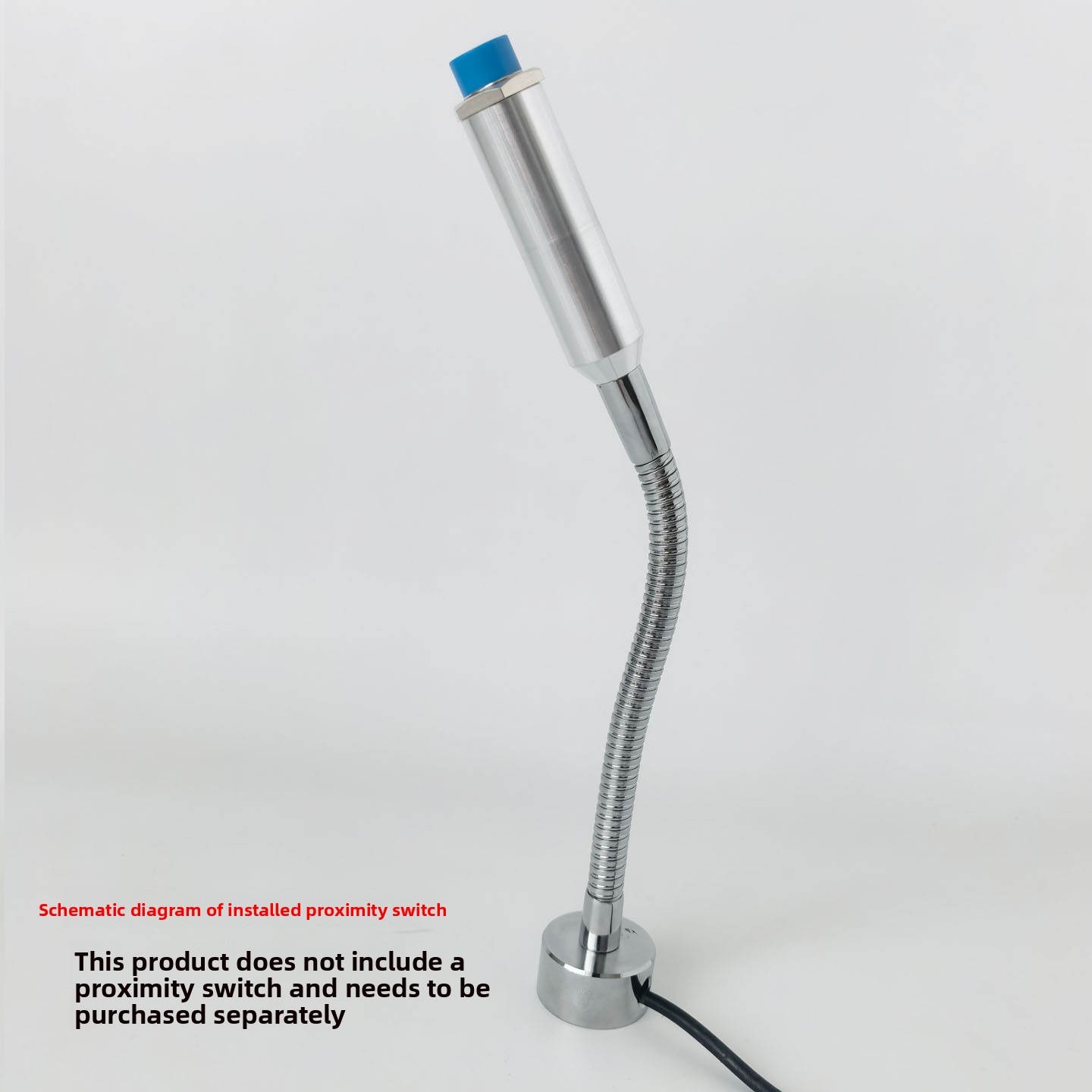

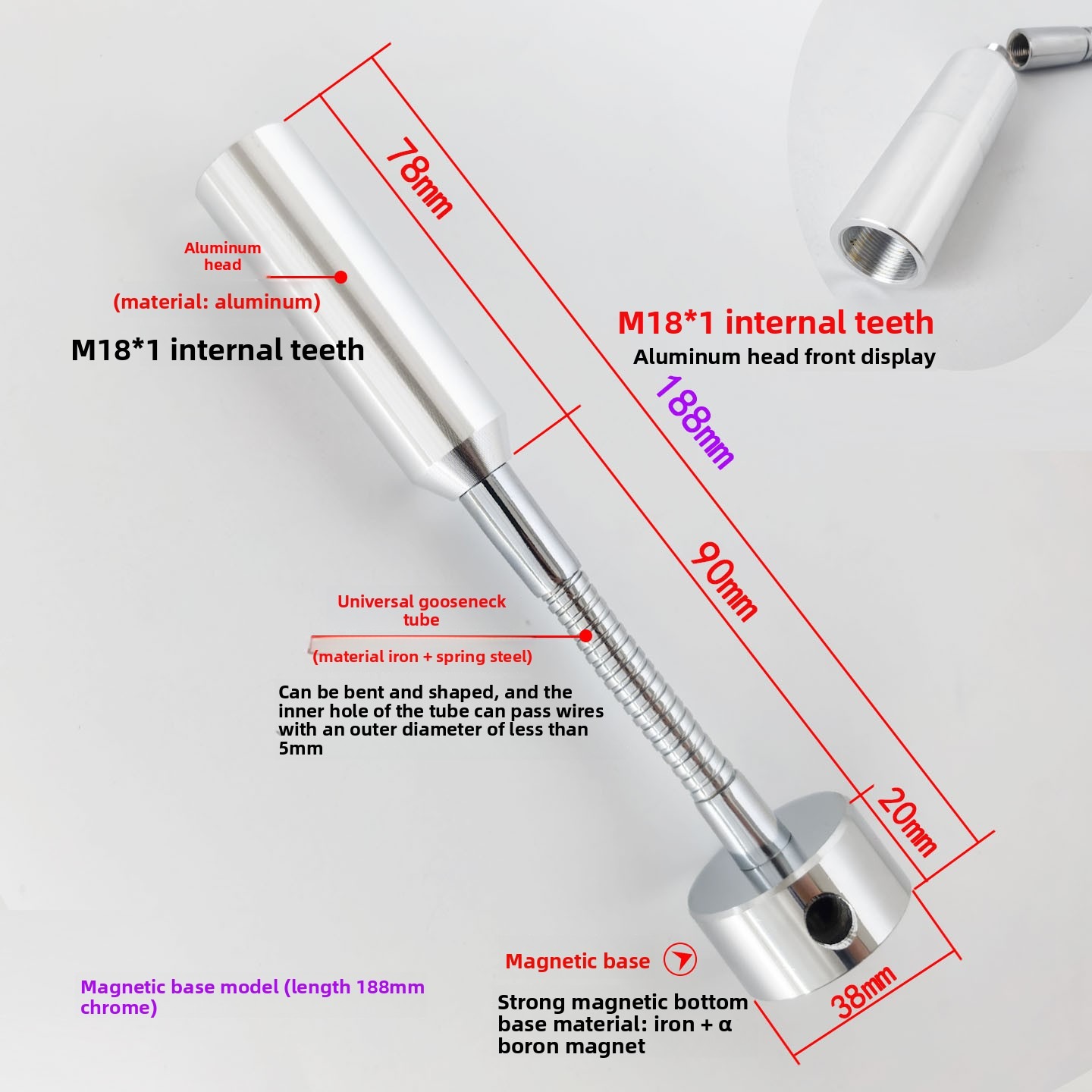

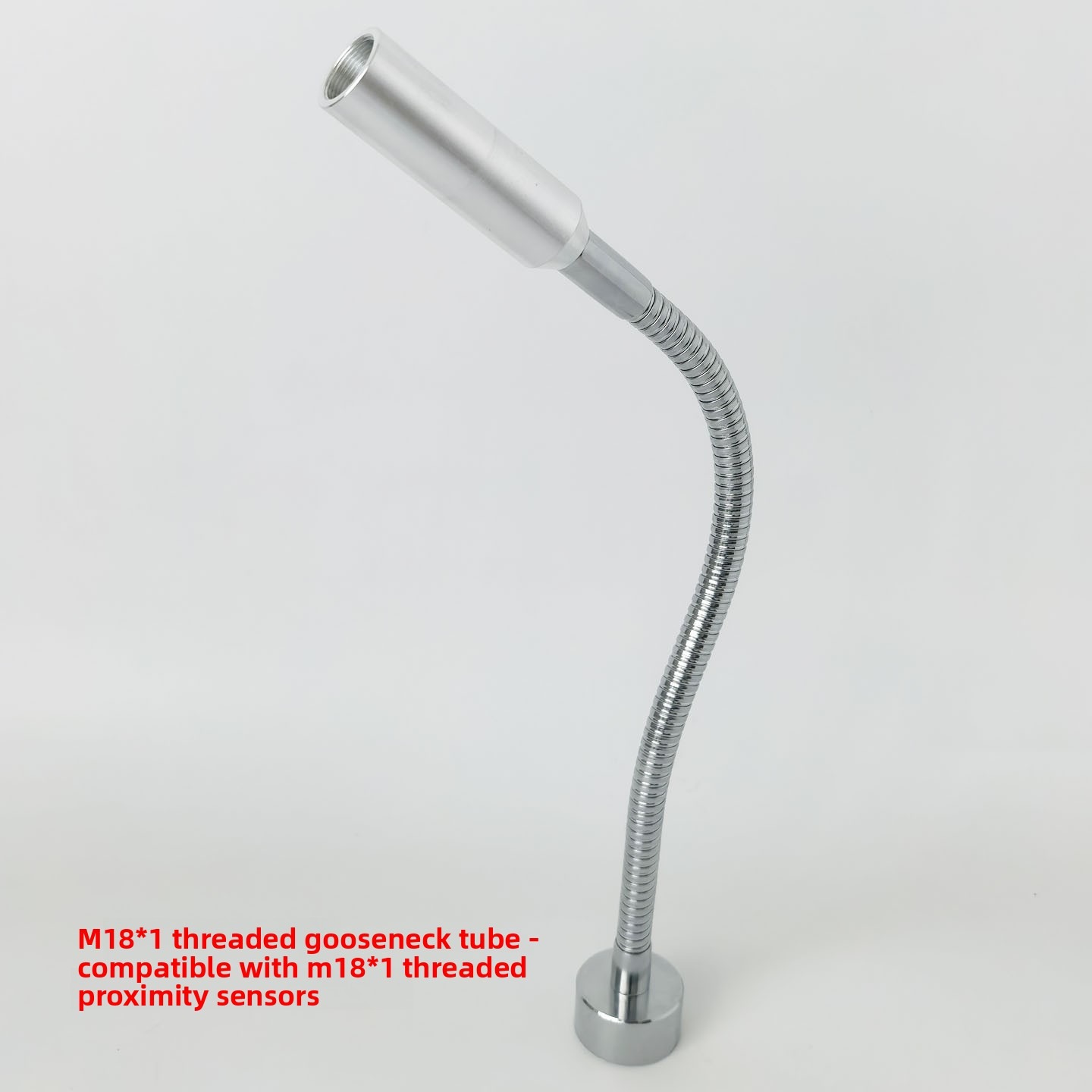

RG008 Flexible Gooseneck Tube with Magnetic Base
Professional flexible gooseneck tube (metal conduit) designed for industrial proximity sensor mounting and cable protection. Features a strong neodymium magnetic base (38mm diameter) that attaches to any ferromagnetic surface without drilling. Made from iron + spring steel with chrome finish, the tube can be bent and shaped to any angle and maintains its position. Available in M8*1, M12*1, and M18*1 thread sizes with multiple length options from 178mm to 588mm. The M18 version directly fits standard M18 cylindrical proximity sensors. Hollow interior routes sensor cables through the tube for a clean, protected installation.
- Thread Options: M8*1 / M12*1 / M18*1 internal thread

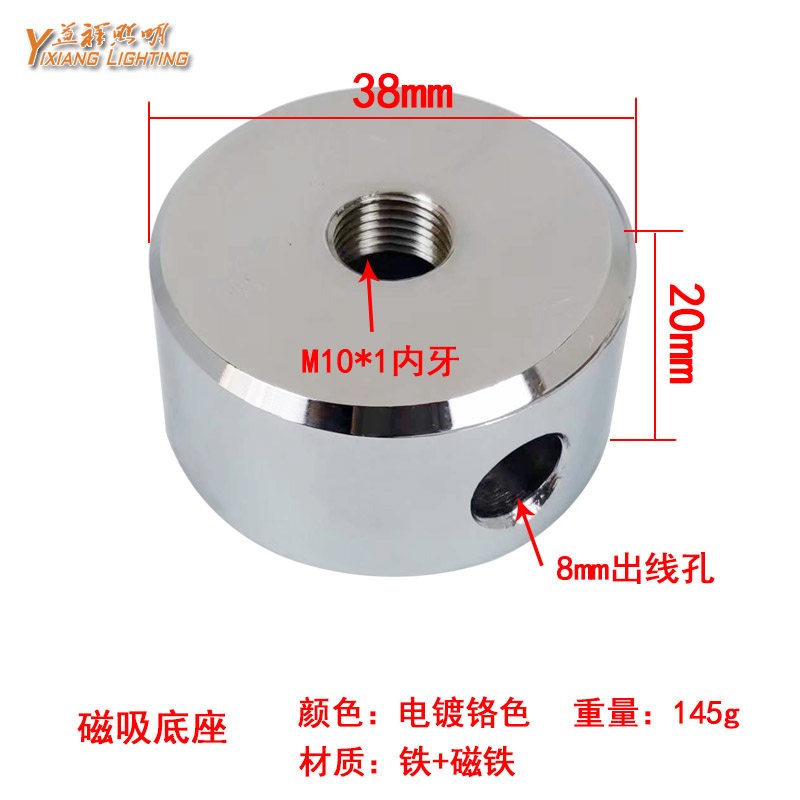

- Magnetic Base: φ38mm × 20mm, iron + NdFeB, 145g
- Tube: Iron + spring steel, chrome finish, bendable & shape-retaining
- Cable Passage: ≤4.2mm (M8/M12) / ≤5mm (M18)
- Lengths (magnetic): M8=262~562mm / M12=280~580mm / M18=188~588mm
- Lengths (screw-type): M8=252~552mm / M12=270~570mm / M18=178~578mm

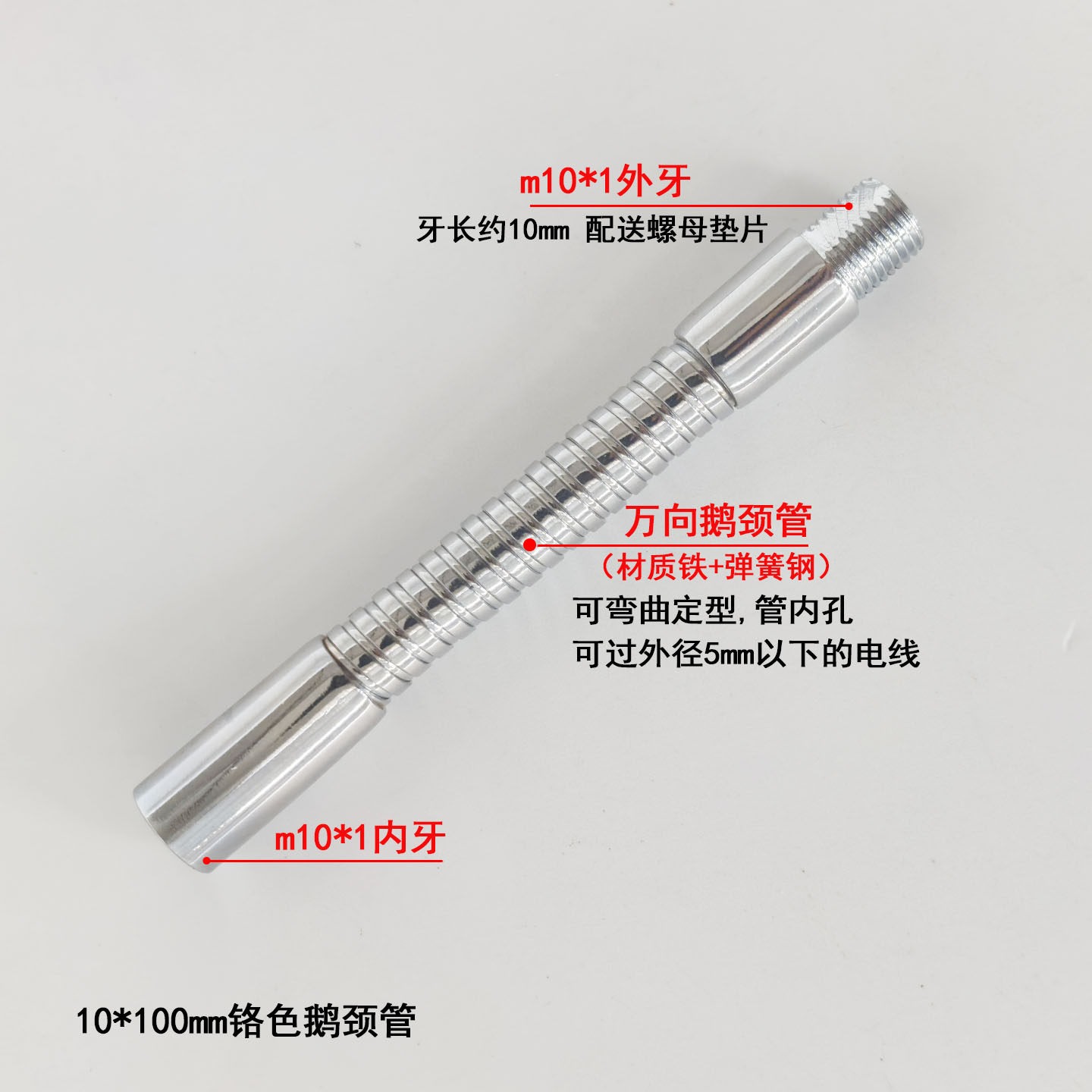

- Plain Tube (no head/base): 12×100/200/300/400mm

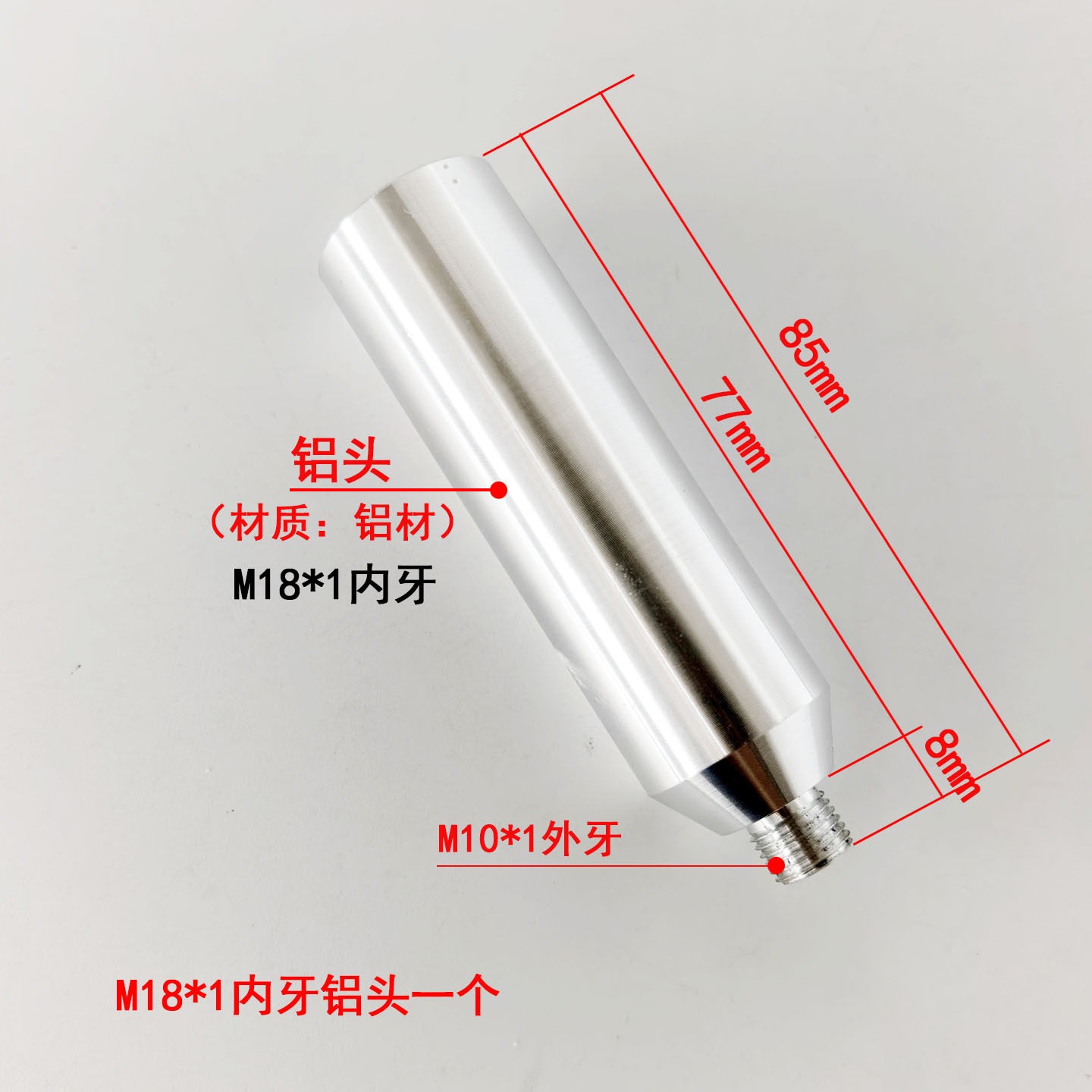

- Head Material: Iron (M8/M12) or Aluminum (M18)
- Application: CNC machine sensor mount, automation, industrial lighting
| Parameter | RG008 (M8) | RG008 (M12) | RG008 (M18) |
|---|---|---|---|
| Thread Size | M8*1 | M12*1 | M18*1 |
| Head Material | Iron | Iron | Aluminum |
| Tube Material | Iron + Spring Steel | ||
| Finish | Chrome Plating | ||
| Magnetic Base | φ38mm × 20mm, Iron + NdFeB, 145g | ||
| Cable Passage | ≤4.2mm | ≤4.2mm | ≤5mm |
| Length (Magnetic) | 262/362/462/562mm | 280/380/480/580mm | 188/288/388/488/588mm |
| Length (Screw) | 252/352/452/552mm | 270/370/470/570mm | 178/278/378/478/578mm |
| Opposite Thread | M10*1 male (with nut + washer) | ||
Product Gallery

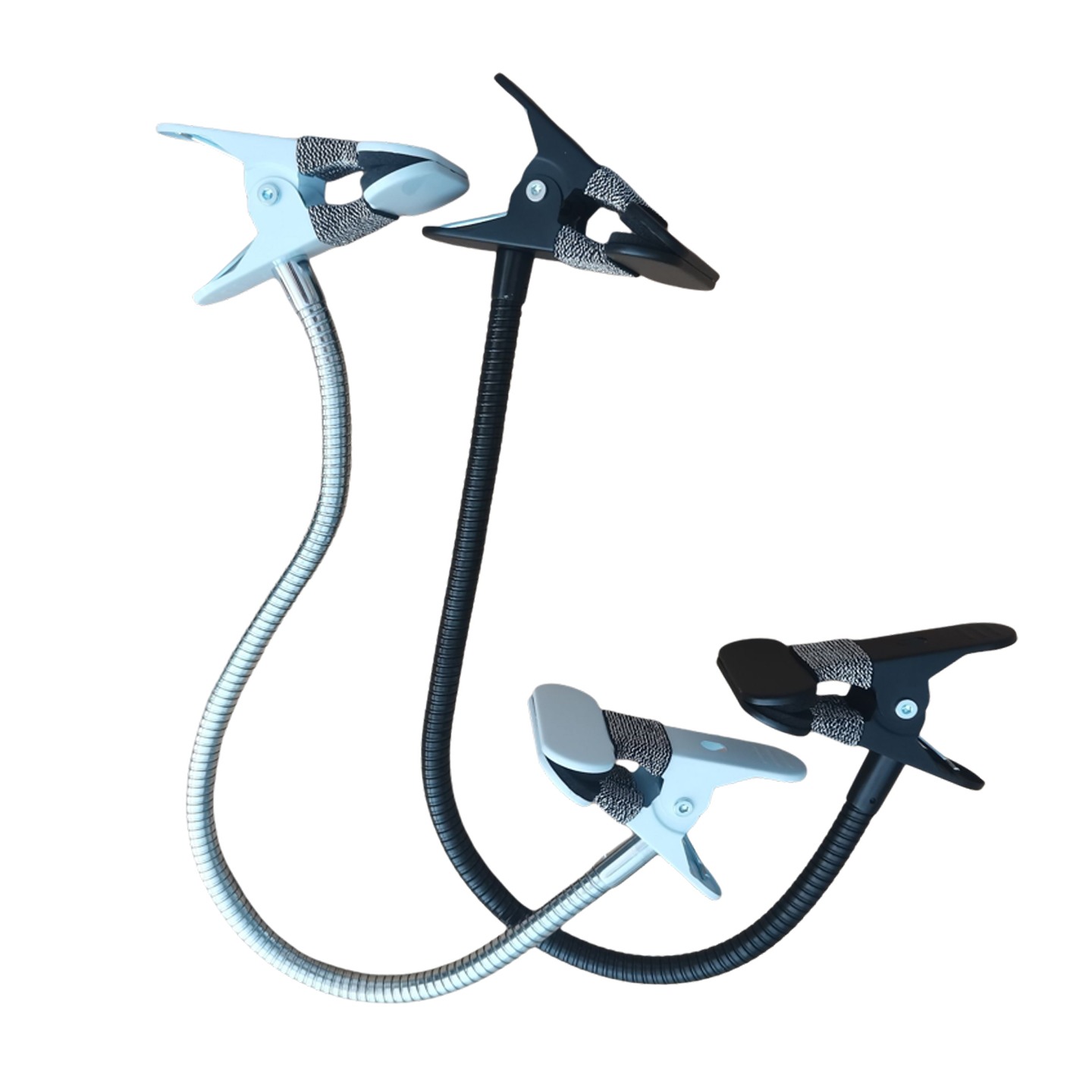

CWG

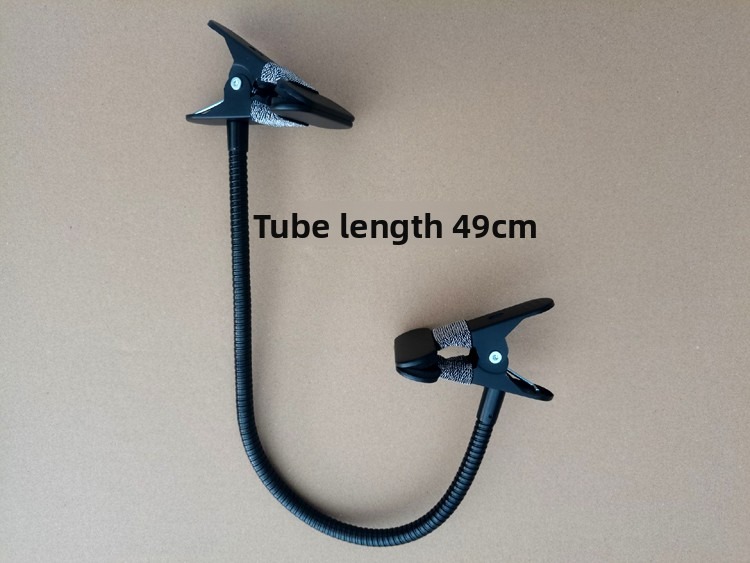

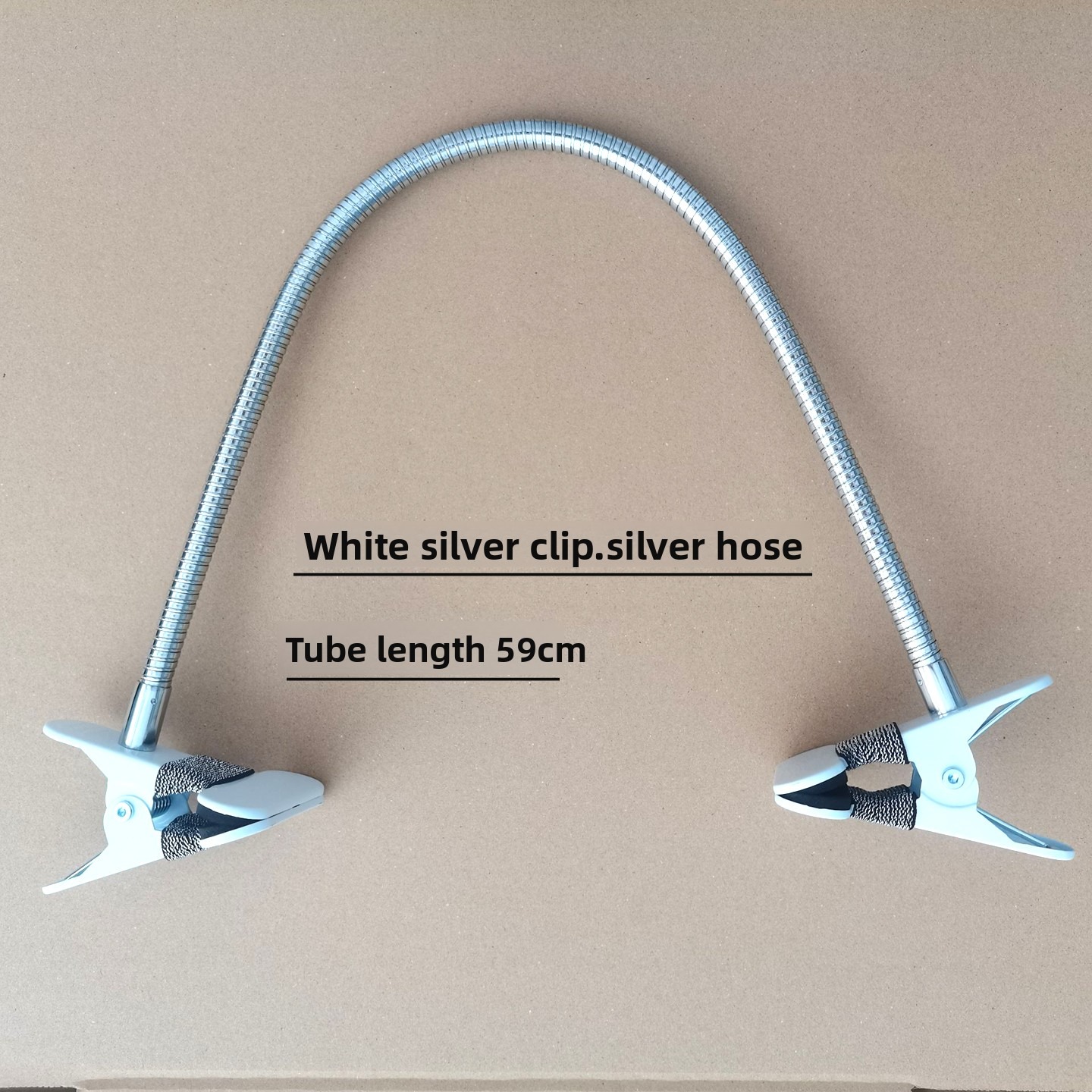

Clamp with Gooseneck — Double-Ended Iron Spring Clamp + Flexible Metal Hose — 12mm Tube — 29/39/49/59cm — White / Black Clamp

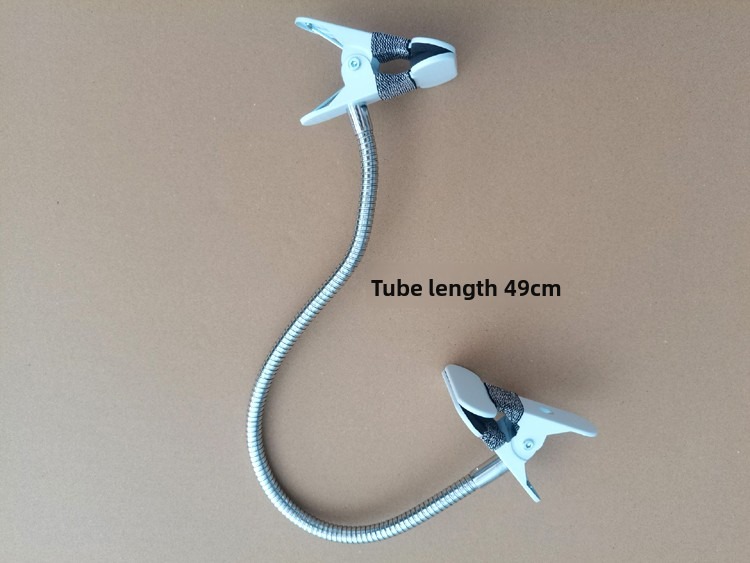

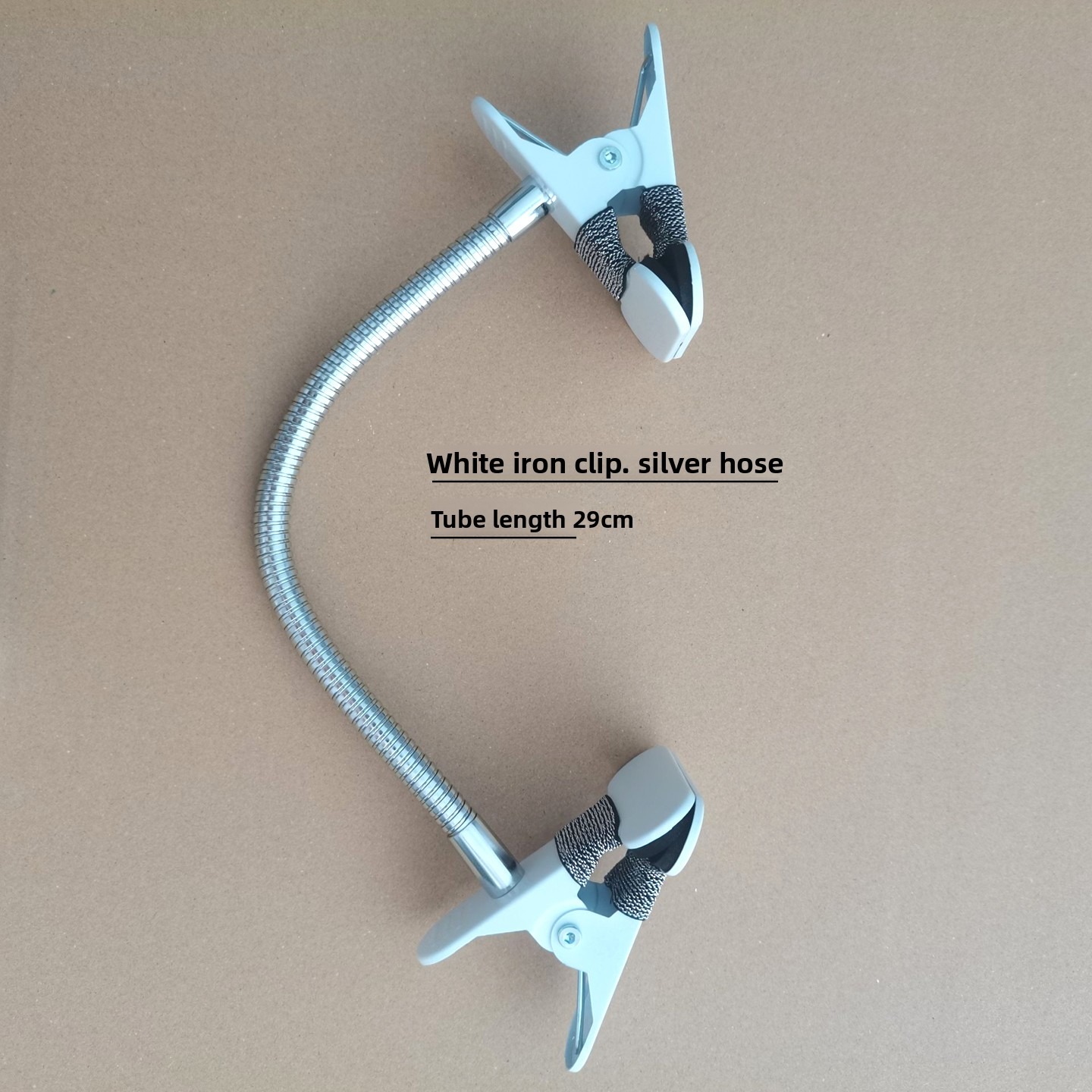

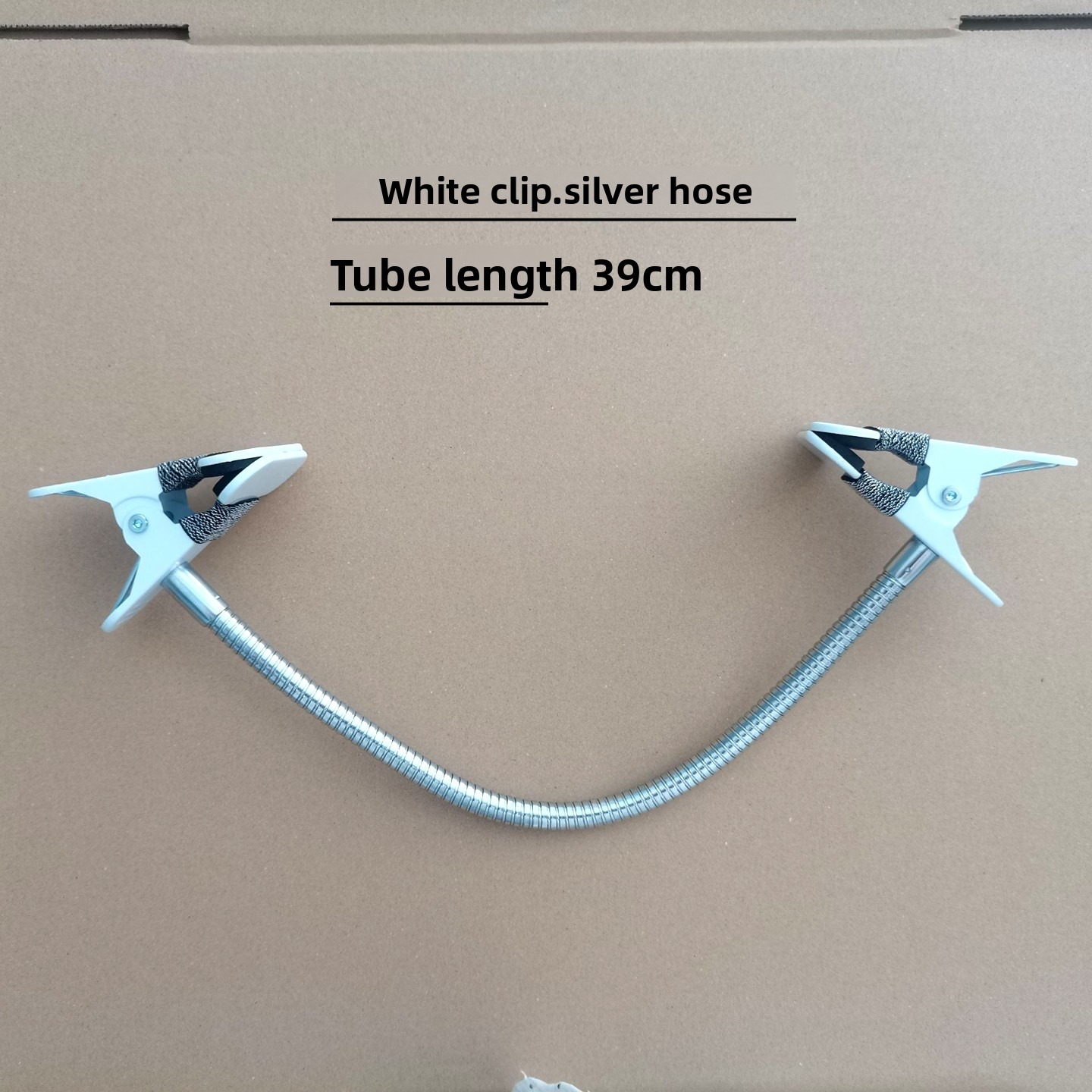

CWG Clamp with Gooseneck (Double-Ended Iron Clamp + Flexible Metal Hose)
Double-ended clamp that pairs two strong iron spring clamps with a thick, reinforced flexible metal hose (gooseneck). Clamp one end to a desk, workbench, CNC machine or shelf edge (holds boards up to 5cm thick), bend the 12mm gooseneck to any angle, then clamp your LED work light, phone, tablet or small tool at the other end. The reinforced metal hose is freely bendable and shape-retaining, holding position without tools. Available in 29cm, 39cm, 49cm and 59cm tube lengths, with white or black clamp finish and soft anti-scratch rubber grip pads.
- Hose Diameter: 12mm (reinforced spring steel)

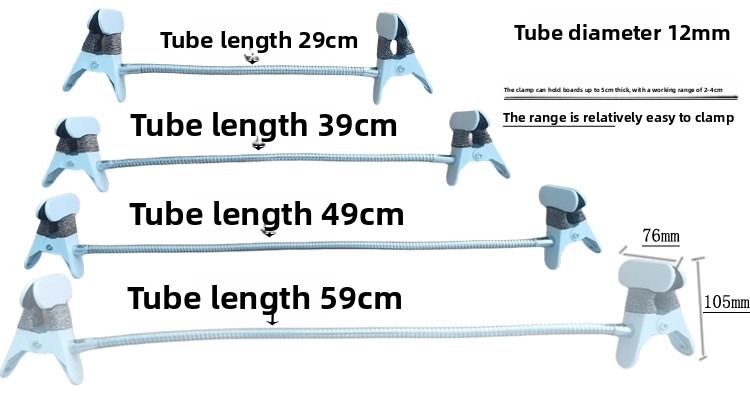

- Tube Length: 29cm / 39cm / 49cm / 59cm options

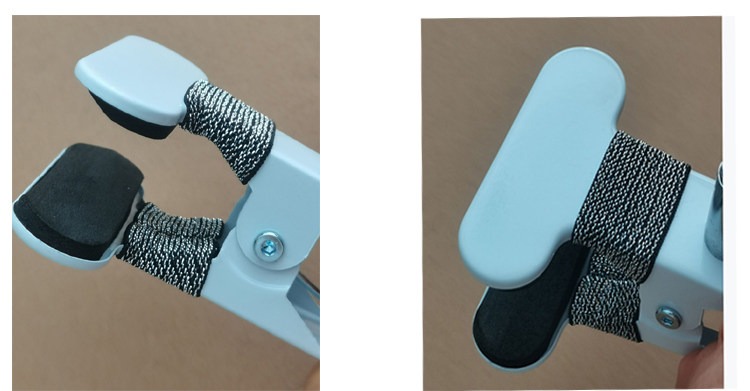

- Clamp Material: Iron, soft rubber grip pads
- Clamp Capacity: Boards up to 5cm thick (working range 2-4cm)

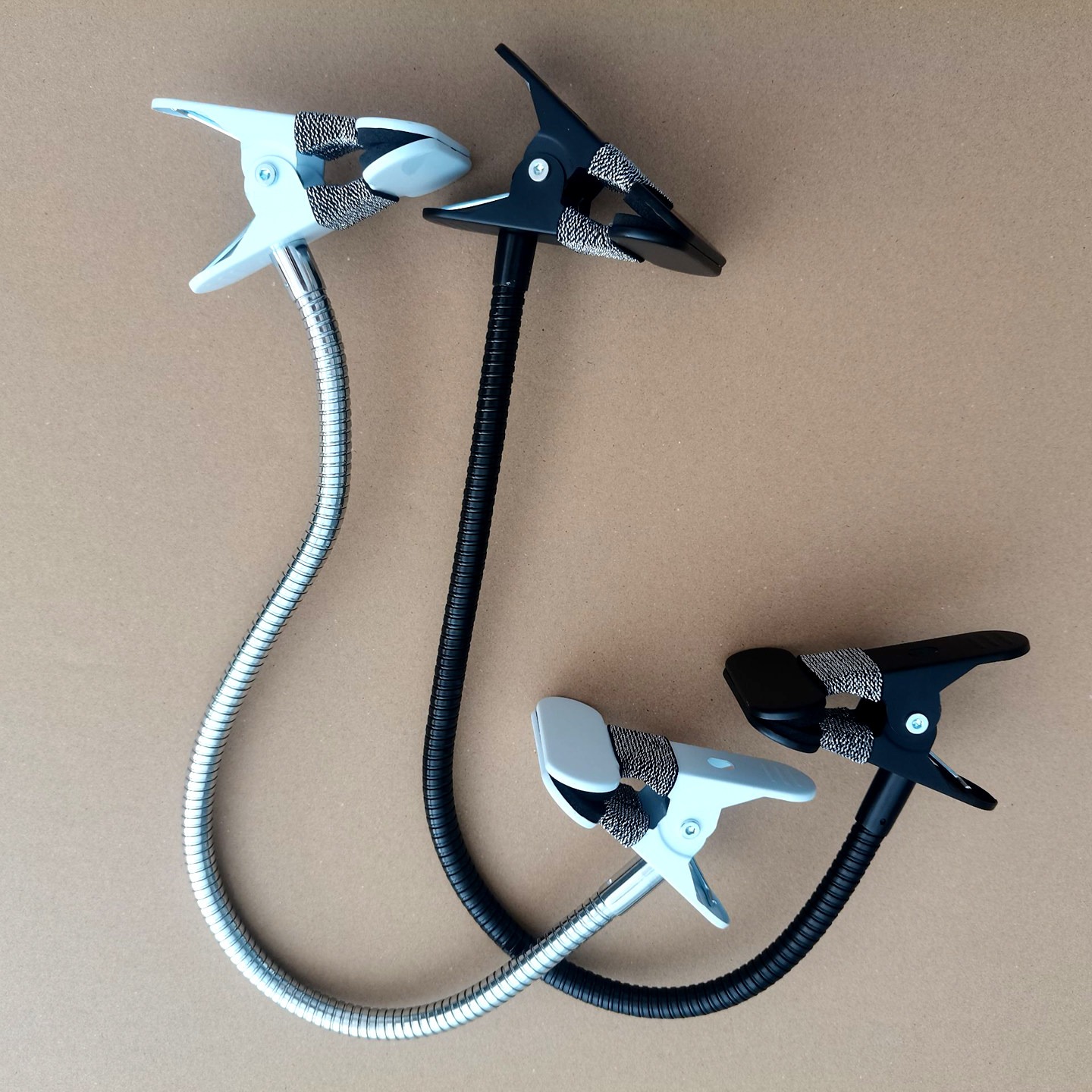

- Color: White / Black clamp, silver hose
- Installation: Tool-free clamping, no drilling
- Application: Work light mounting, phone/tablet holder, CNC machine, workshop
| Parameter | CWG-29 | CWG-39 | CWG-49 | CWG-59 |
|---|---|---|---|---|
| Tube Length | 29cm | 39cm | 49cm | 59cm |
| Hose Diameter | 12mm | |||
| Hose Material | Reinforced metal (spring steel) | |||
| Clamp Material | Iron | |||
| Clamp Capacity | Boards up to 5cm thick (working range 2-4cm) | |||
| Grip Pads | Soft rubber, anti-scratch | |||
| Color Options | White / Black clamp (silver hose) | |||
| Installation | Tool-free clamping, no drilling required | |||
Product Gallery

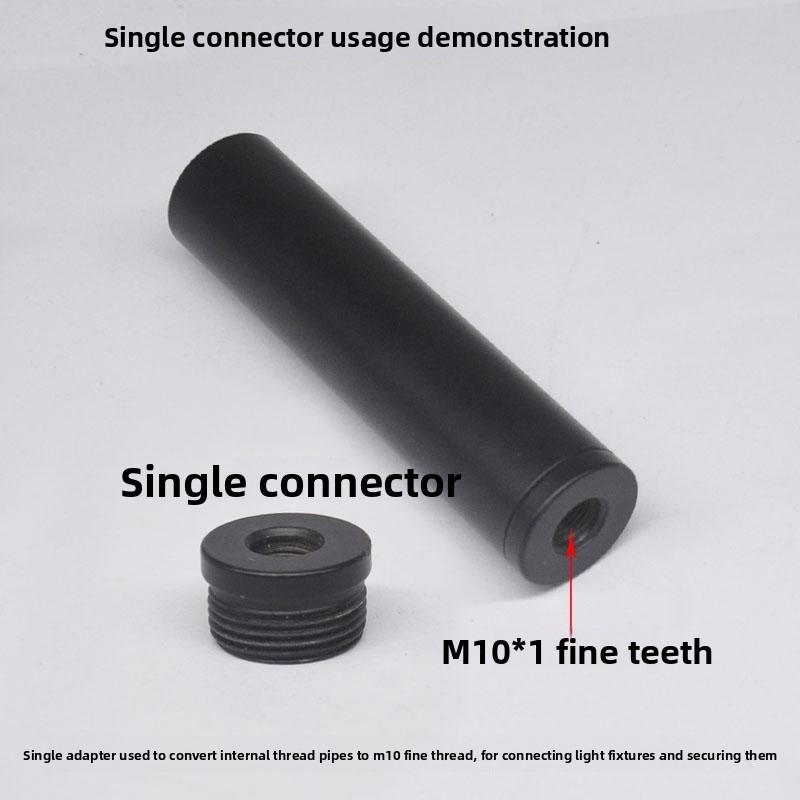

25mm Internal Tooth Tube
Straight Metal Tube — OD 25mm × ID ~23mm — Black Painted — M10*1 Connector System — For LED Work Light Extension & Cable Protection

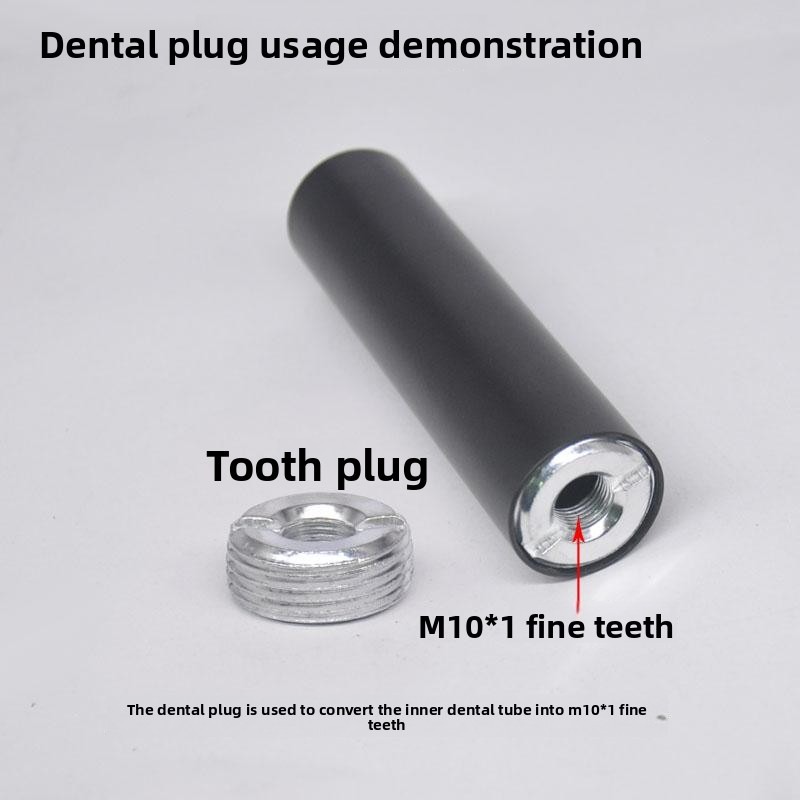

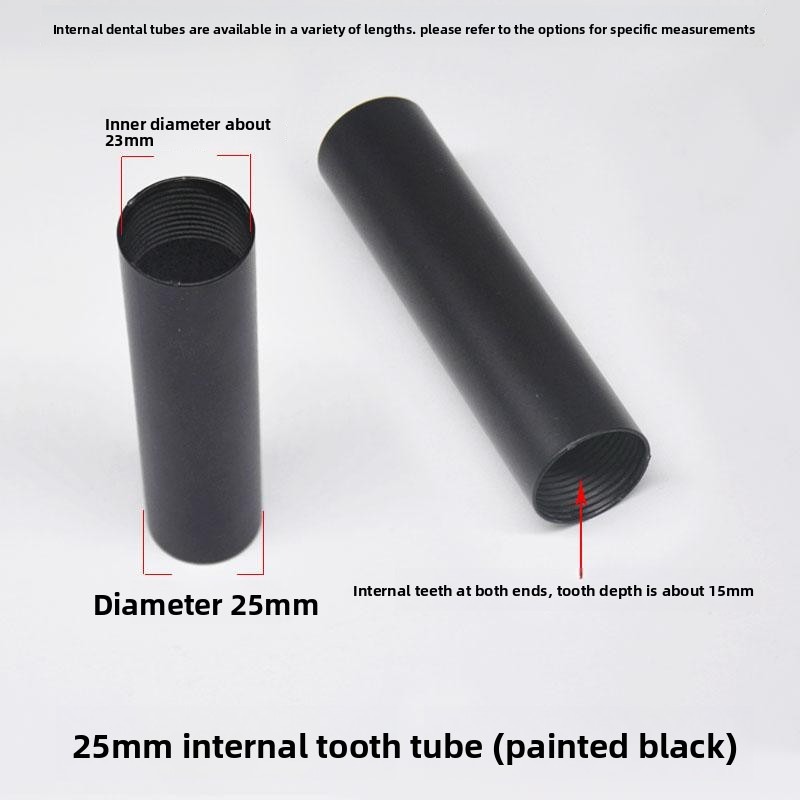

25mm Internal Tooth Tube (Straight Metal Conduit)
Heavy-duty 25mm straight metal tube with internal threads at both ends, designed for cable protection and extension in industrial LED work lights and CNC machine lighting. Made from steel with a durable black painted finish, this rigid connector pipe provides stable and secure connection between lighting components. Features a complete M10*1 connector system including single connector, double connector, miter joint, conversion plug, and end cap for versatile installation options. The ~23mm inner diameter provides ample space for routing power cables through the tube.
- Outer Diameter: 25mm / Inner Diameter: ~23mm
- Internal Thread Depth: ~15mm at both ends (internal tooth type)
- Material: Iron + Spring Steel, black painted finish

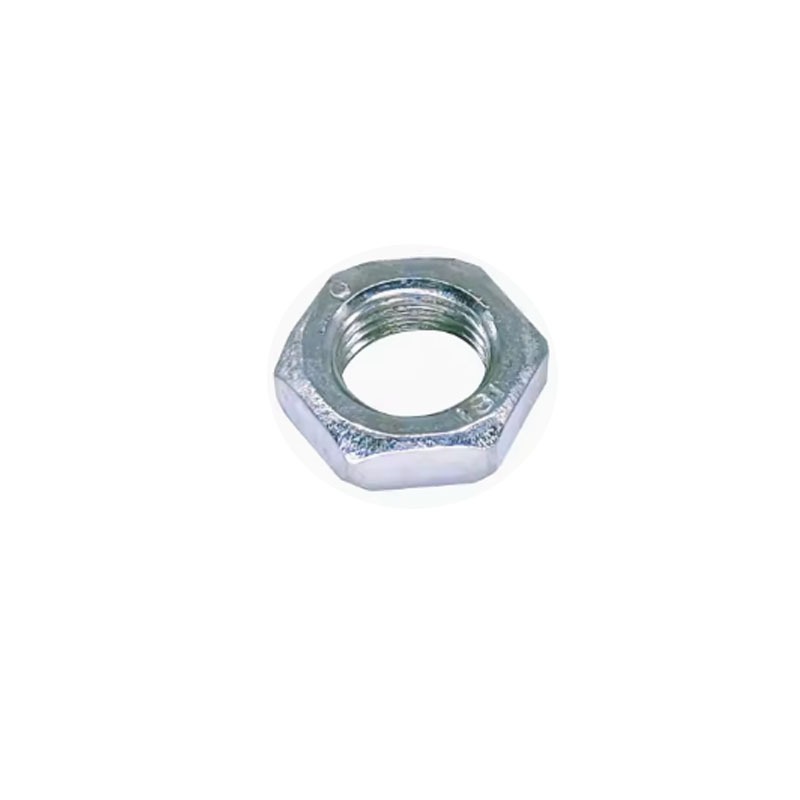

- Connector Thread: M10*1 fine thread adapter system

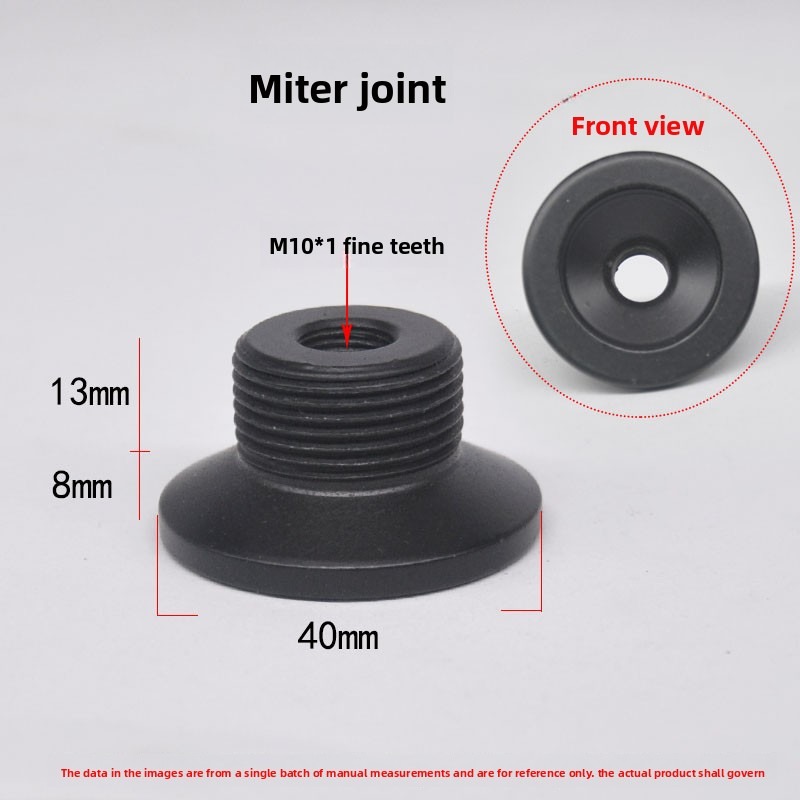

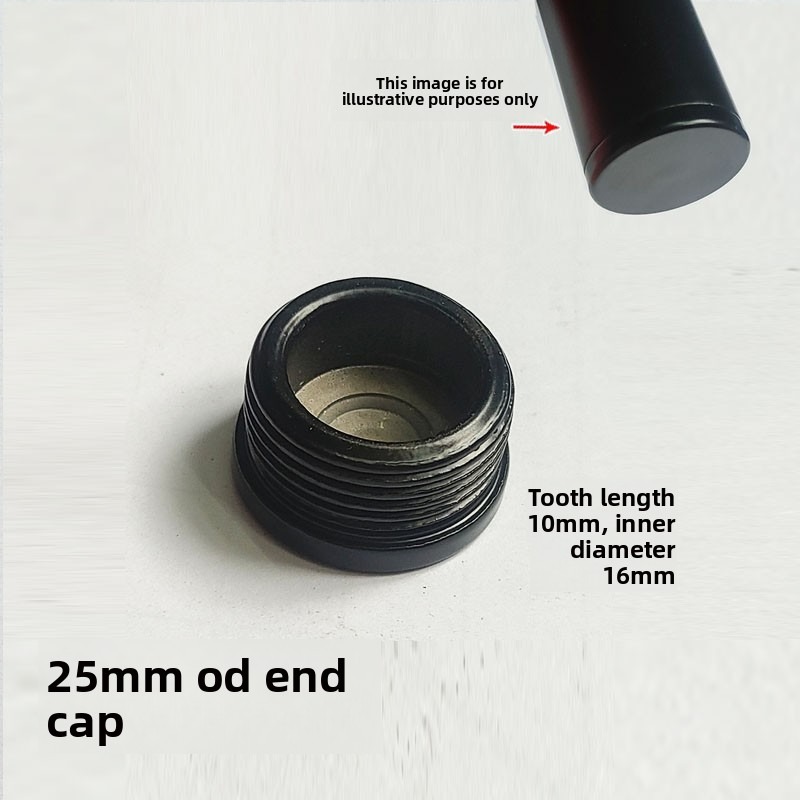

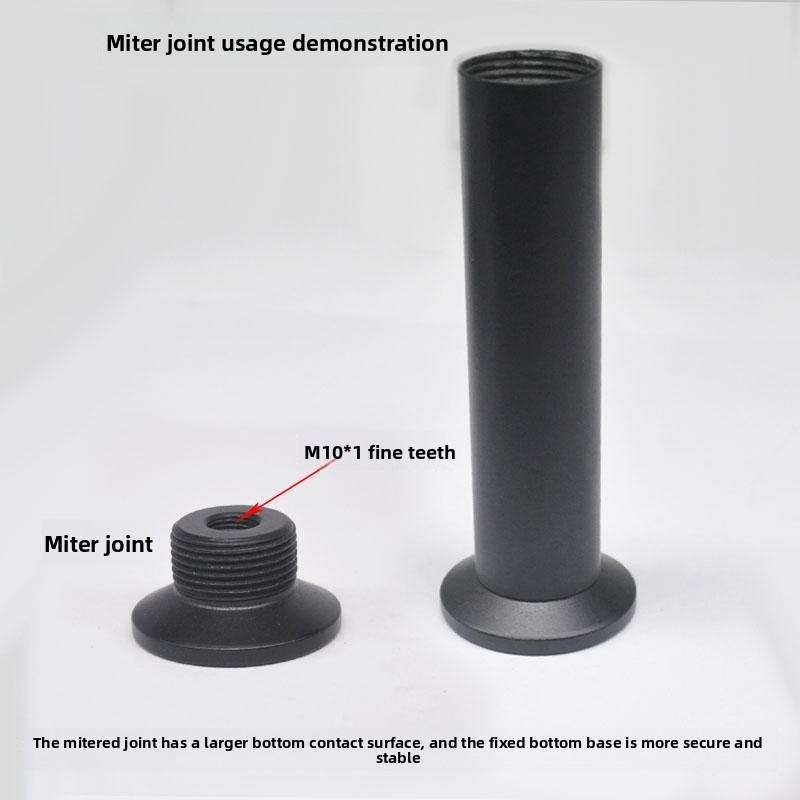

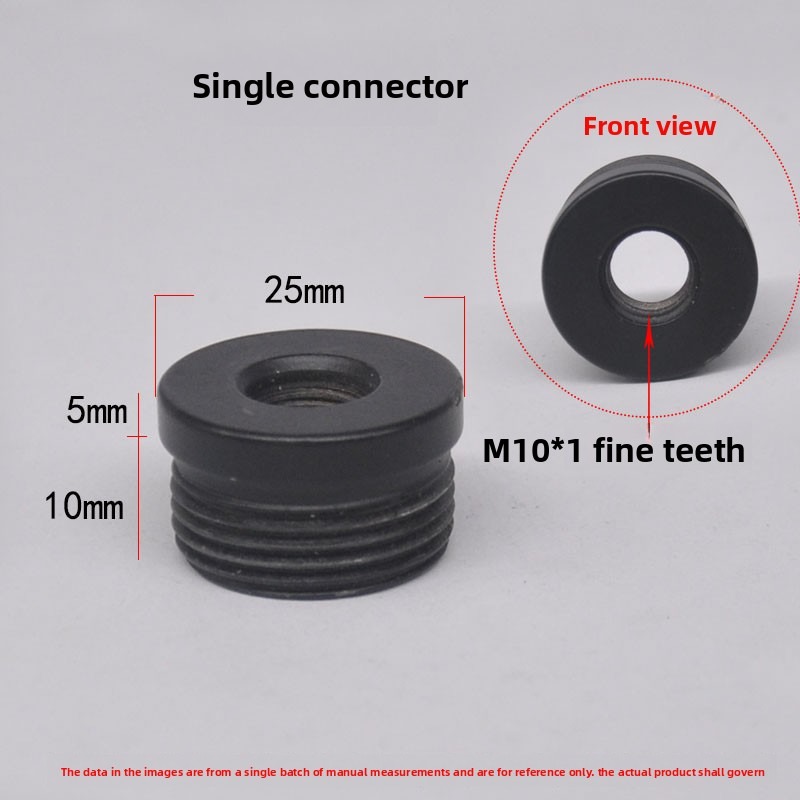

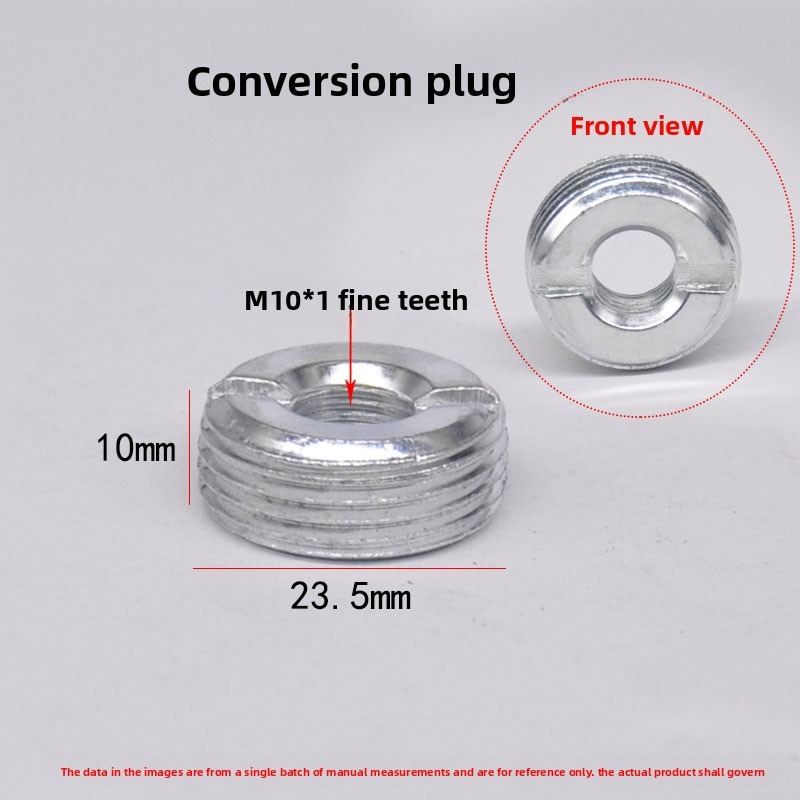

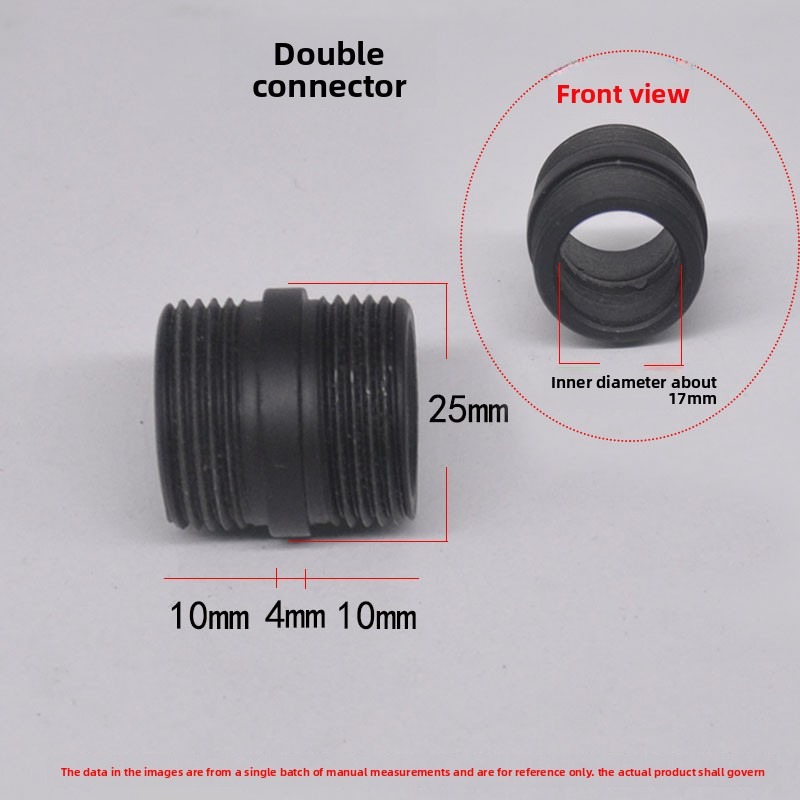

- Fittings: Single connector, double connector, miter joint, conversion plug, end cap, hex nut
- Feature: Rigid straight design, corrosion-resistant coating
- Application: LED work light extension, CNC machine cable protection, industrial lighting
- Available in various lengths — select from ordering options
| Parameter | 25mm Internal Tooth Tube |
|---|---|
| Type | Rigid Metal Connector Pipe with Internal Thread |
| Outer Diameter | 25mm |
| Inner Diameter | ~23mm |
| Thread Depth (both ends) | ~15mm |
| Material | Iron + Spring Steel |
| Finish | Black painted (anti-corrosion) |
| Connector Standard | M10*1 fine thread |
| Working Temperature | -20°C to +80°C |
| Color | Black |
| Available Fittings | Single connector, double connector, miter joint, conversion plug, end cap, hex nut |
Connectors & Fittings Gallery

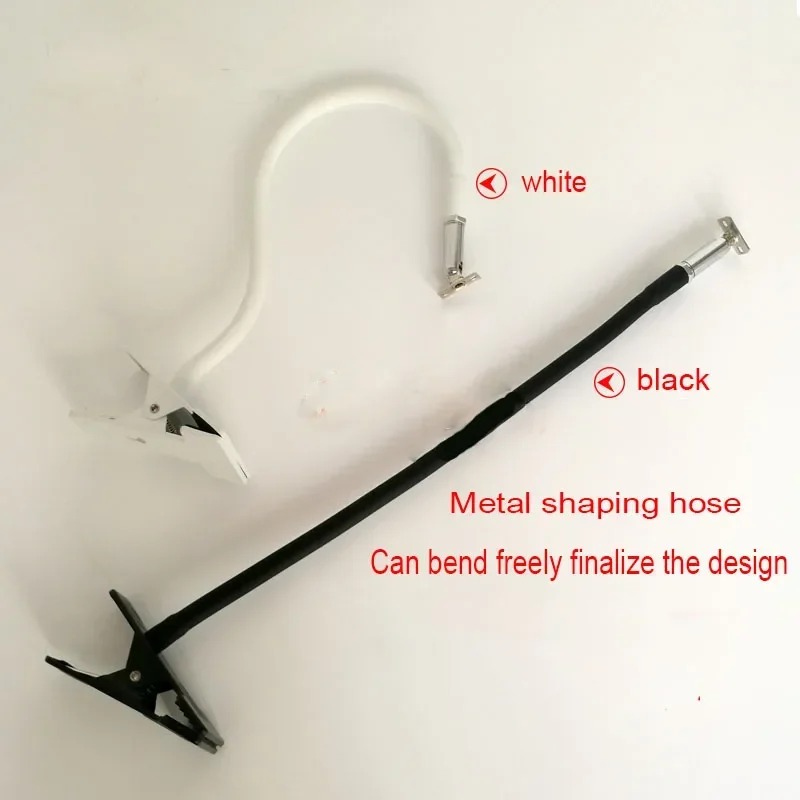

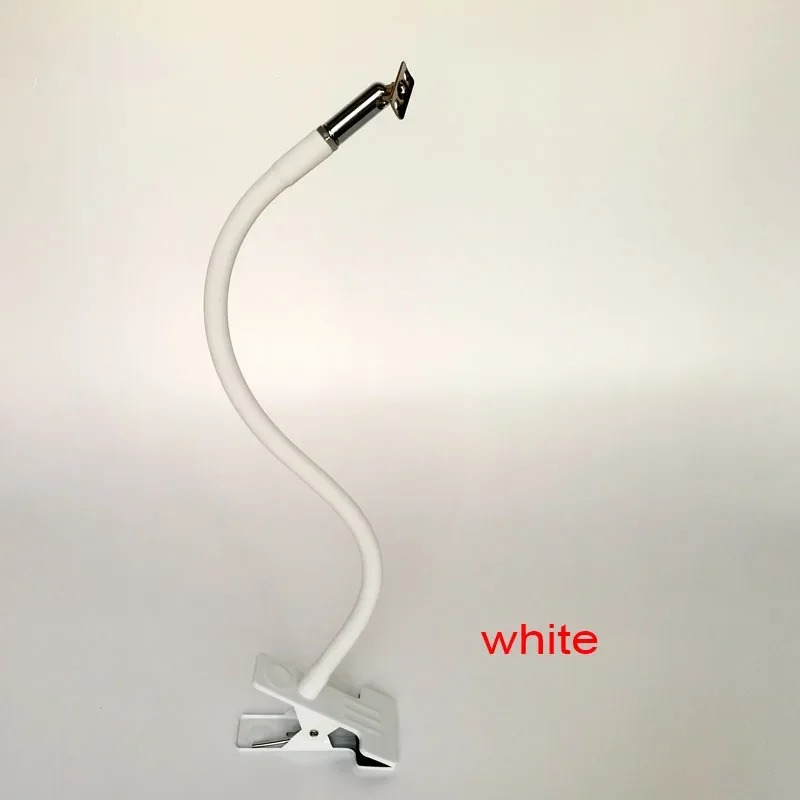

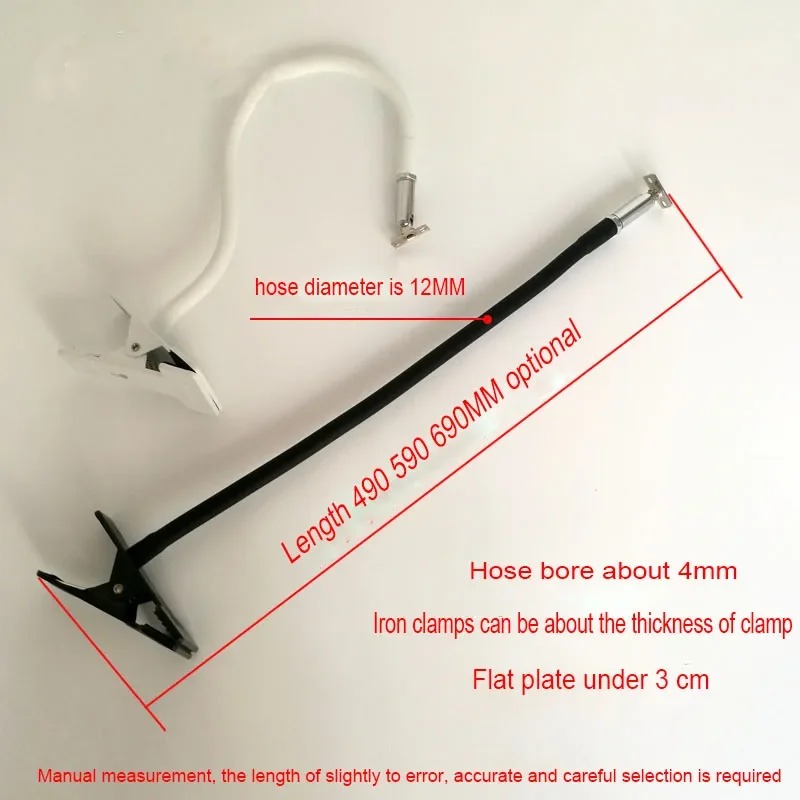

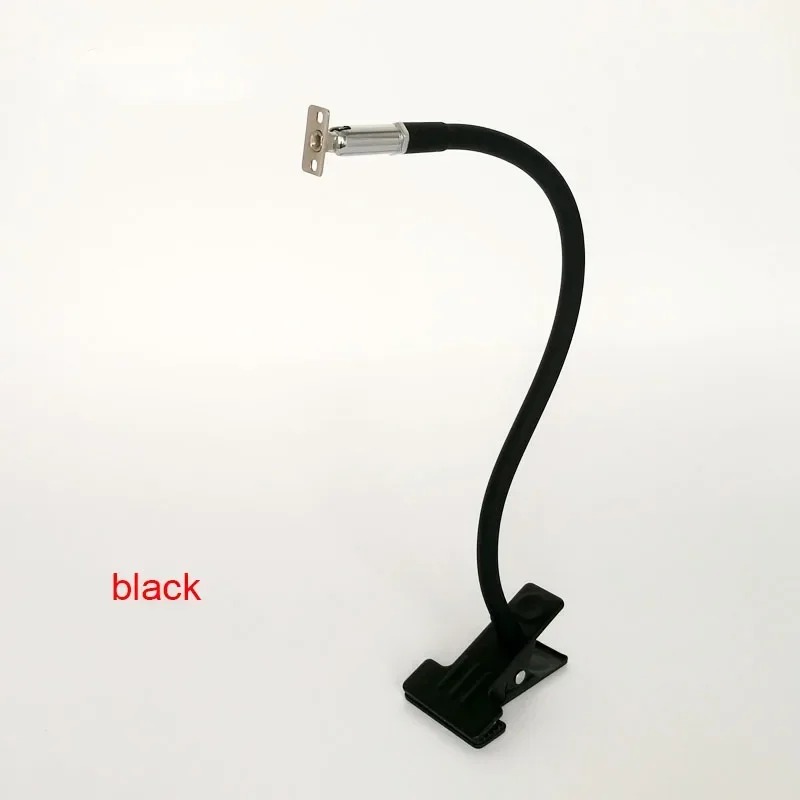

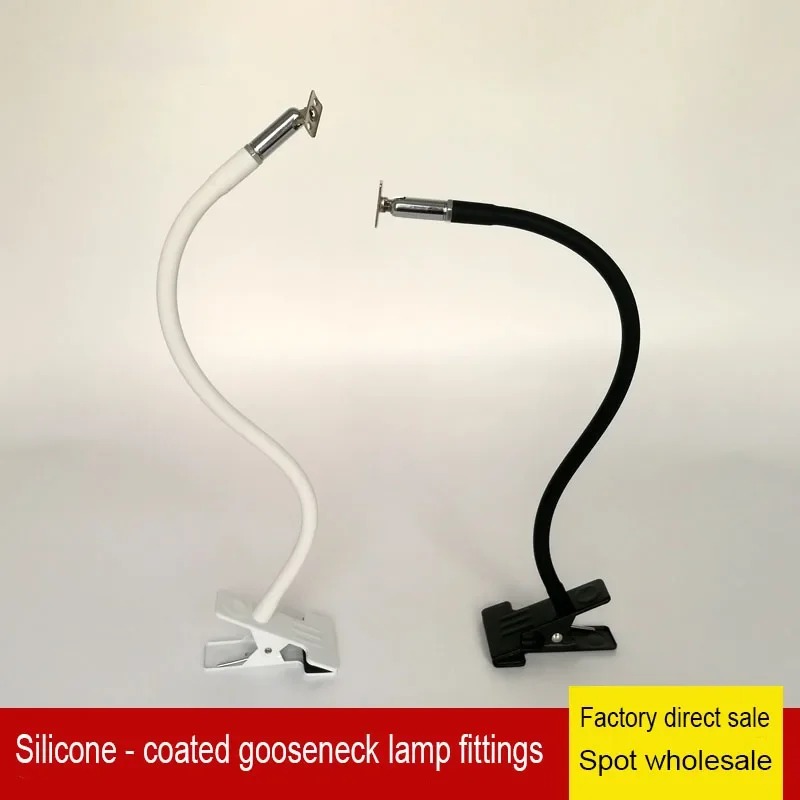

YXRG-01 Silicone-Coated Flexible Gooseneck Lamp Fitting
Silicone-coated flexible metal shaping hose for desk lamps, workbench lights and CNC machine task lighting. The arm bends freely in any direction and holds its shape without springing back, while the sturdy iron clamp base mounts onto desk edges or flat surfaces up to 3cm thick — no drilling required. Internal ~4mm bore routes lamp wiring cleanly through the tube.
- Hose diameter: 12mm | Internal bore: approx. 4mm
- Length options: 490mm / 590mm / 690mm
- Colors: White / Black (silicone coated)
- Core material: Iron + spring steel, stays in position

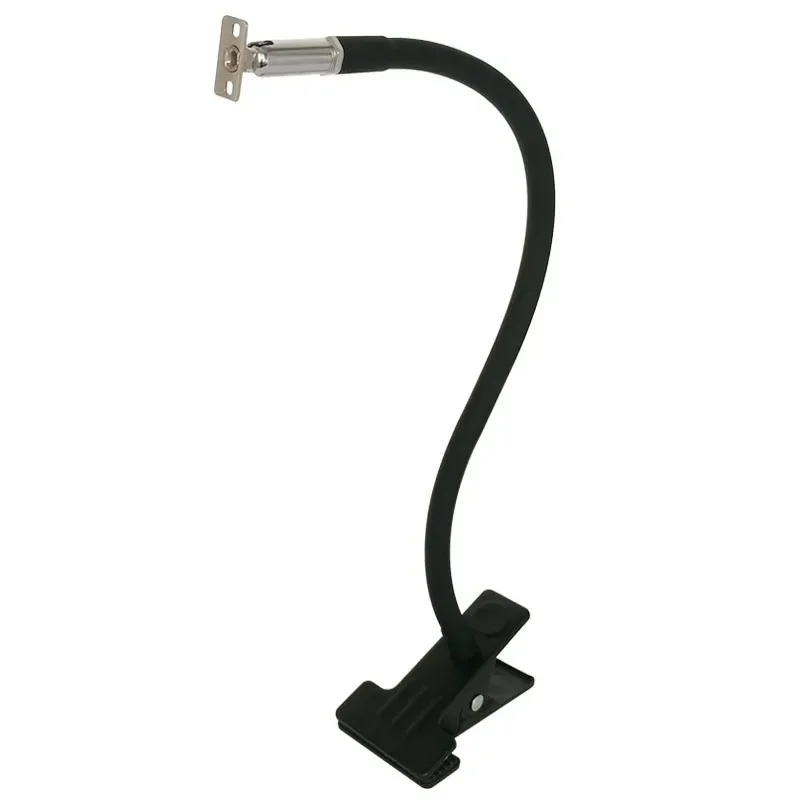

- Iron clamp base: fits flat surfaces up to 3cm thick
- Application: desk lamps, workbench lights, CNC machine lighting
| Parameter | YXRG-01 |
|---|---|
| Model | YXRG-01 |
| Type | Silicone-Coated Flexible Gooseneck Lamp Fitting |
| Hose Diameter | 12mm |
| Internal Bore | approx. 4mm (for lamp wiring) |
| Length Options | 490mm / 590mm / 690mm |
| Surface Coating | Silicone |
| Core Material | Iron + spring steel (holds position) |
| Clamp | Iron, fits flat plate up to 3cm thick |
| Colors | White / Black |
| Electrical Rating | N/A (non-electrical accessory) |
🚦 LED Signal Lights
Three-color industrial LED tower lights for CNC machine status indication — Red, Yellow, Green with optional >95dB buzzer alarm.

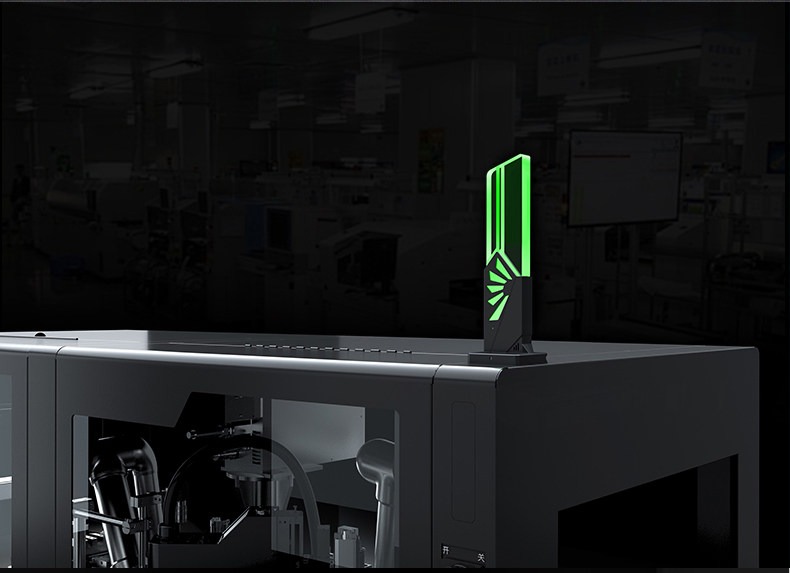

Q11 LED Signal Tower Light
Premium three-color LED signal indicator designed for CNC machines and industrial automation equipment. Independent Red, Yellow, and Green channels provide instant visual status feedback for machine running, warning, and fault conditions. Crystal-cut PMMA lampshade delivers bright, uniform light visible from any angle.
- Colors: Red / Yellow / Green (3 independent channels)
- Voltage: DC24V (reverse polarity safe)
- Optional buzzer: >95dB audible alarm
- Protection: IP54 | LED lifespan: 70,000 hours
- Material: PMMA crystal lampshade, ABS body
- Mounting: Screw fixed, foldable multi-hole base

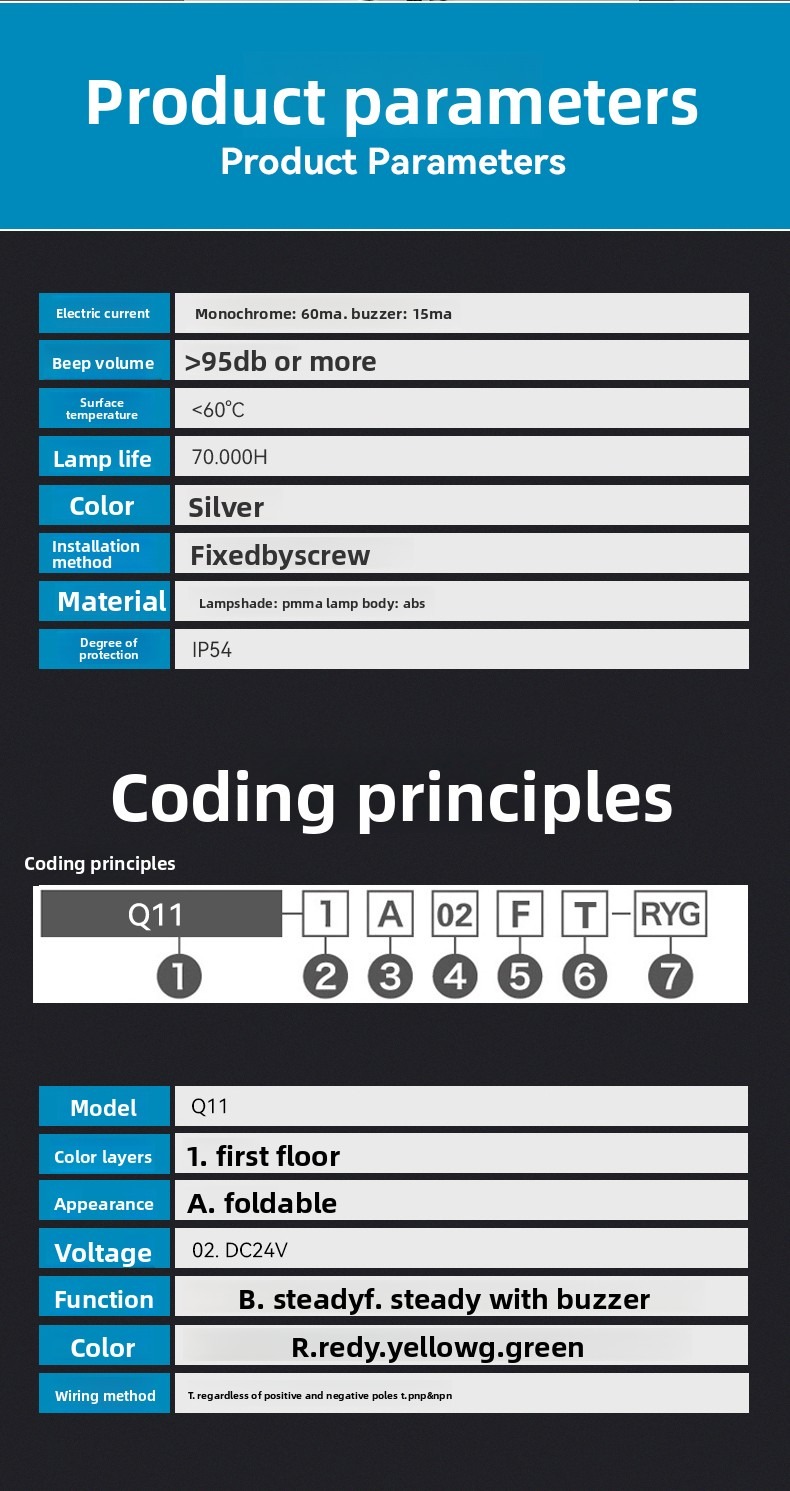

| Parameter | Q11 |
|---|---|
| Model | Q11 |
| Type | LED Signal Tower Light |
| Colors | Red / Yellow / Green (3 channels) |
| Voltage | DC 24V (reverse polarity safe) |
| Current | 60mA per color | Buzzer: 15mA |
| Buzzer Volume | >95dB (optional) |
| Protection Rating | IP54 |
| LED Lifespan | 70,000 hours |
| Operating Temp | -60°C ~ +55°C |
| Material | PMMA lampshade, ABS body |
| Dimensions | 155 × 77 × 20 mm |
| Mounting | Screw fixed (foldable multi-hole base) |
Installation & Wiring

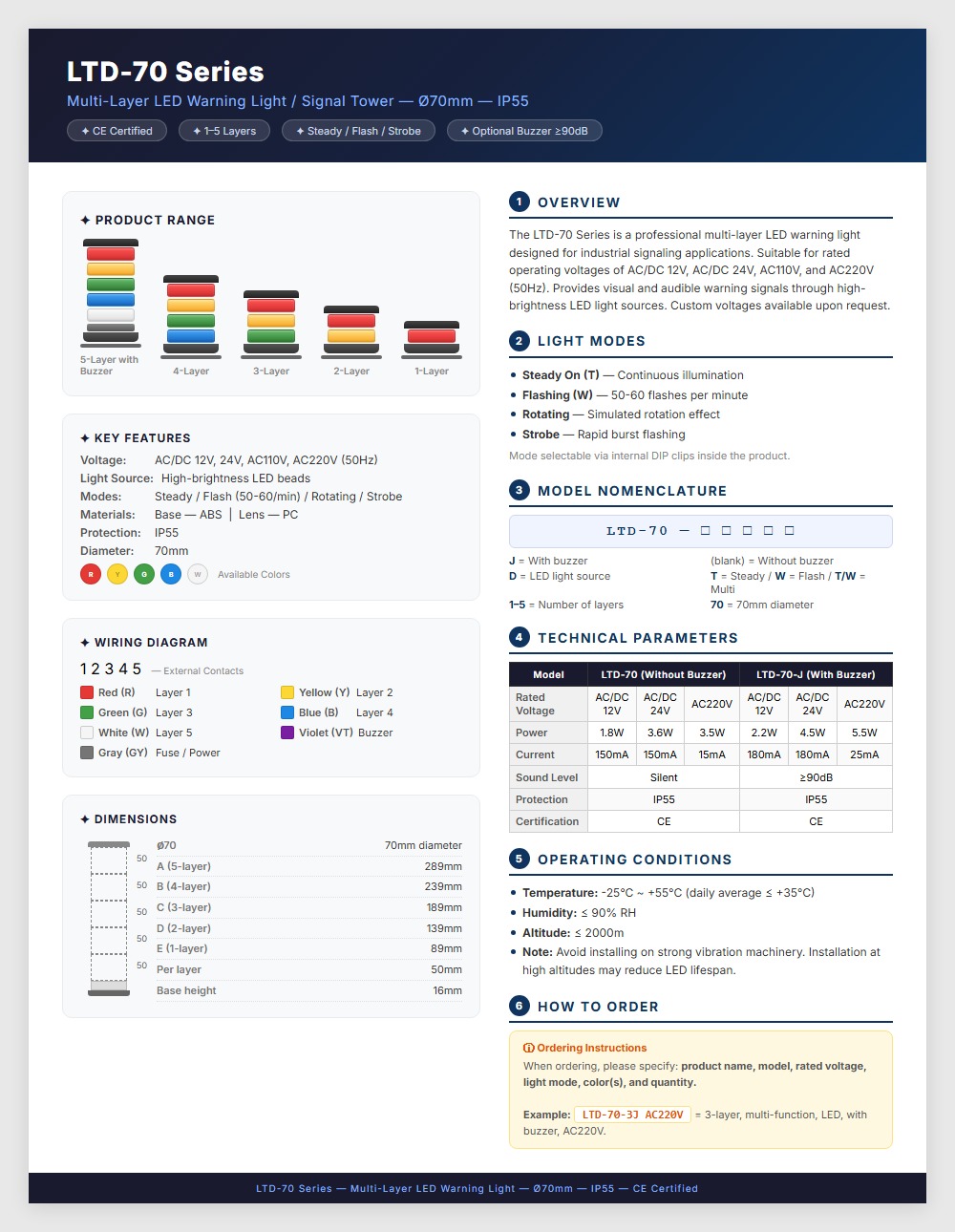

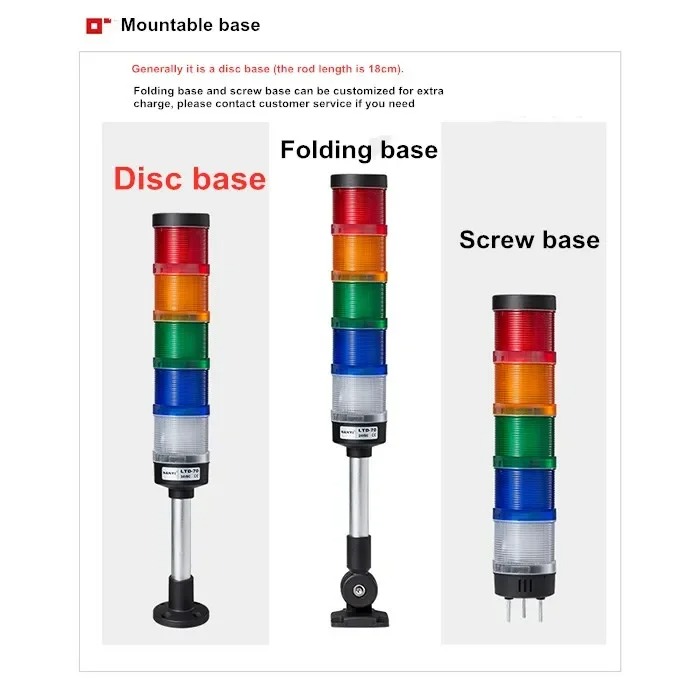

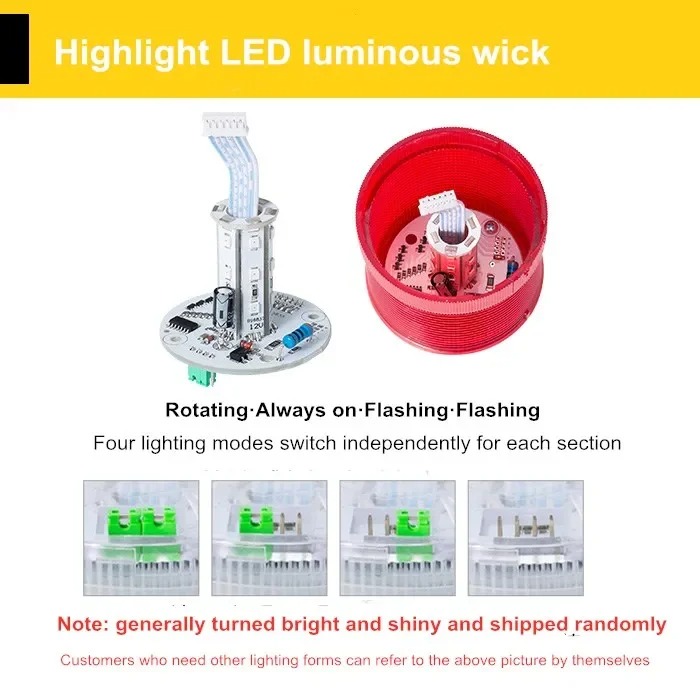

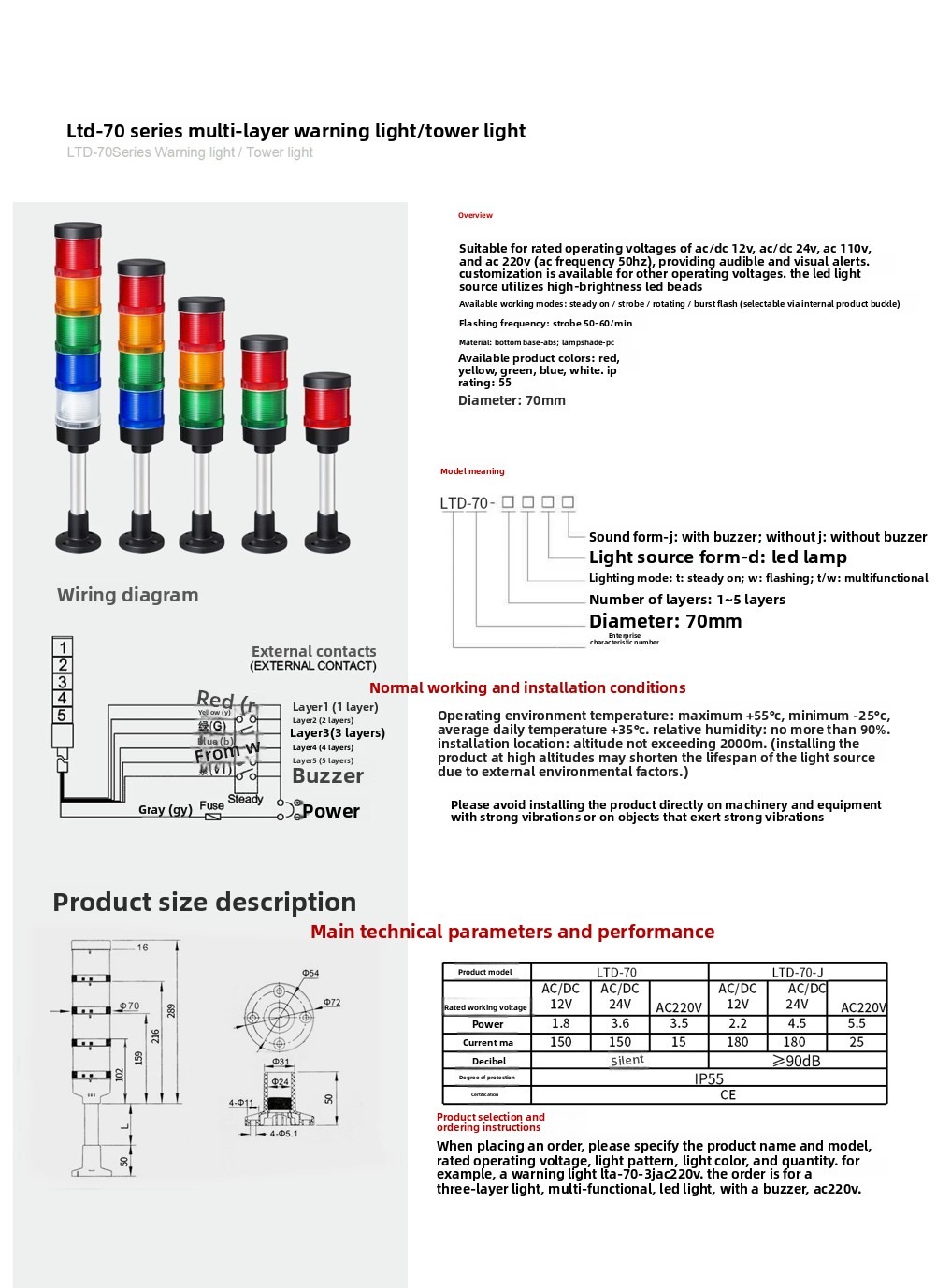

LTD-70 Series
Multi-Layer LED Warning Light / Tower Light — Ø70mm — IP55

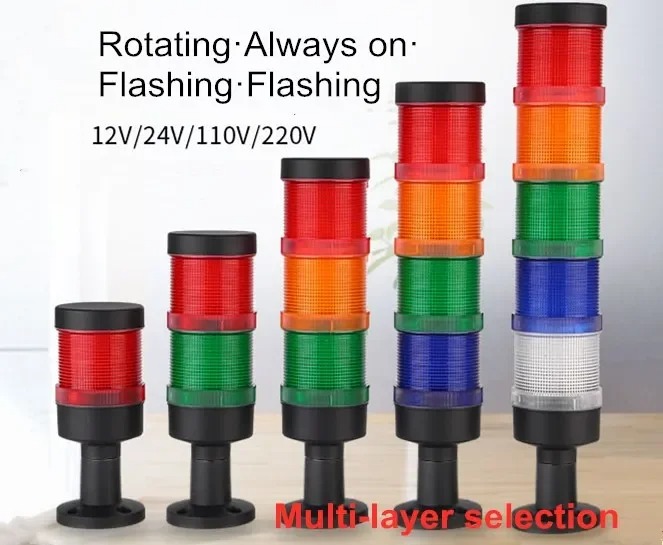

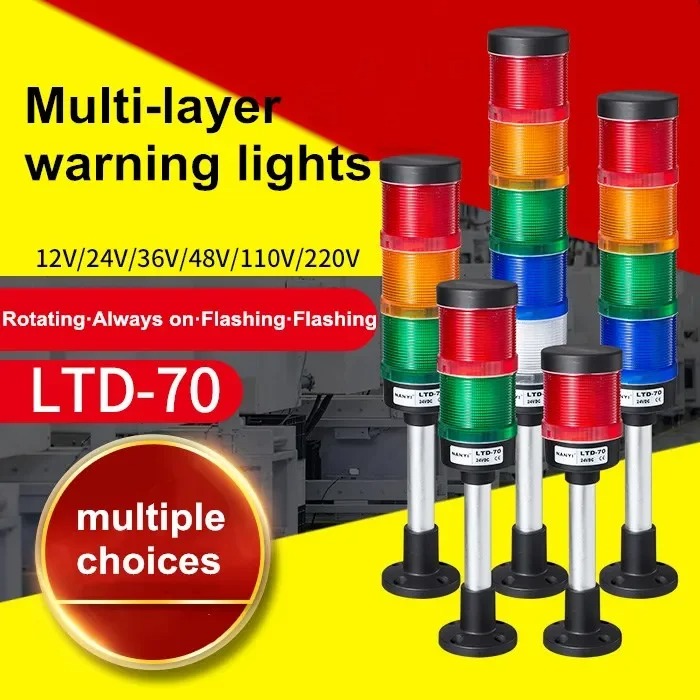

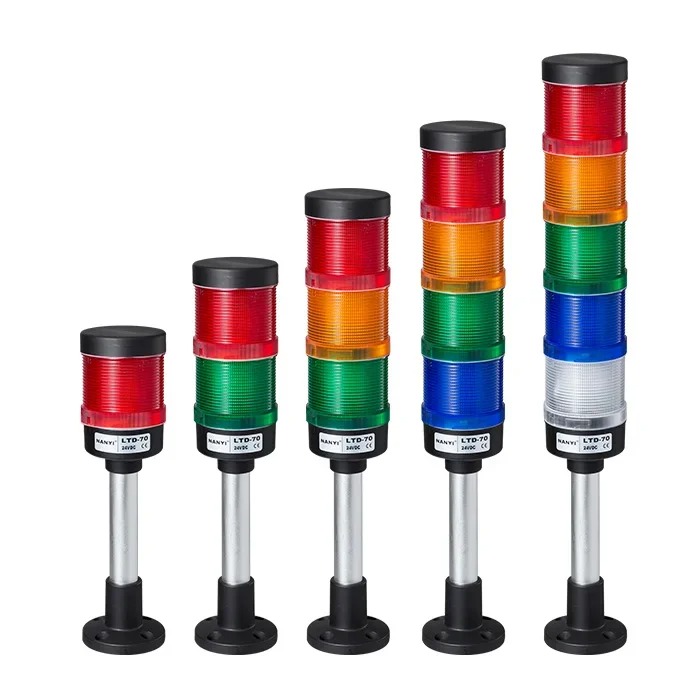

LTD-70 Multi-Layer LED Warning Light
Professional multi-layer LED signal tower designed for industrial machine status indication. Available in 1 to 5 layers with Red, Yellow, Green, Blue, and White LED channels. Features selectable light modes — Steady, Flash, Rotating, and Strobe — with optional ≥90dB buzzer alarm.
- Layers: 1 to 5 (independent color channels)
- Voltage: AC/DC 12V, 24V, AC110V, AC220V
- Light modes: Steady / Flash / Rotating / Strobe
- Optional buzzer: ≥90dB alarm
- Protection: IP55 | Diameter: 70mm
- Material: Base-ABS, Lens-PC
- Colors: Red / Yellow / Green / Blue / White
- Certification: CE
| Parameter | LTD-70 (No Buzzer) | LTD-70-J (With Buzzer) |
|---|---|---|
| Model | LTD-70 | LTD-70-J |
| Type | LED Warning Light / Signal Tower | |
| Layers | 1 to 5 (Red/Yellow/Green/Blue/White) | |
| Voltage | AC/DC 12V / 24V / AC220V | AC/DC 12V / 24V / AC220V |
| Power | 1.8W / 3.6W / 3.5W | 2.2W / 4.5W / 5.5W |
| Current | 150mA / 150mA / 15mA | 180mA / 180mA / 25mA |
| Buzzer Volume | Silent | ≥90dB |
| Protection Rating | IP55 | IP55 |
| Light Modes | Steady / Flash (50-60/min) / Rotating / Strobe | |
| Material | Base-ABS, Lens-PC | |
| Diameter | 70mm | |
| Operating Temp | -25°C ~ +55°C | |
| Certification | CE | |
Product Gallery
TY50 Series
3-Color LED Warning Light in One Unit — DC24V — Aluminum Alloy — Optional Buzzer
TY50 3-Color LED Warning Light
Compact industrial signal lamp that integrates independent Red, Yellow and Green LED groups into a single aluminum-alloy body. One fixture indicates machine running, standby and alarm statuses at a glance — ideal for CNC machine tools, injection molding machines, presses and automation lines. Rated DC24V, with optional buzzer version and three base options (standard flange / rod base / 90° foldable base).
- 3 colors in one lamp — R/Y/G groups independently controlled
- Voltage: DC24V

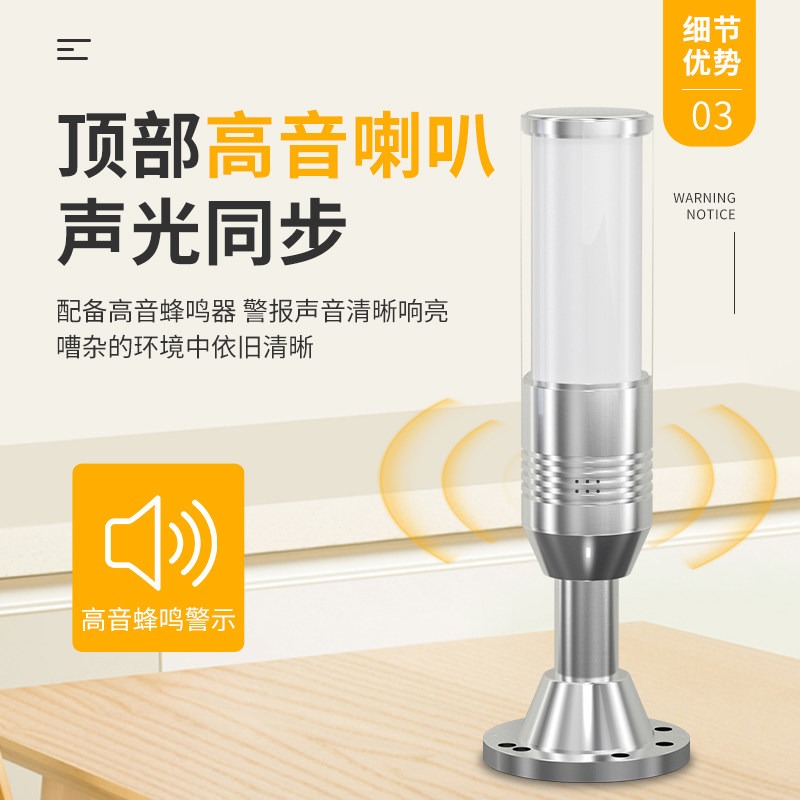

- Optional buzzer version — sound + light synchronized
- Material: aluminum alloy body + high-transparency PC lens
- Mounting: 4-hole flange, screw fixing

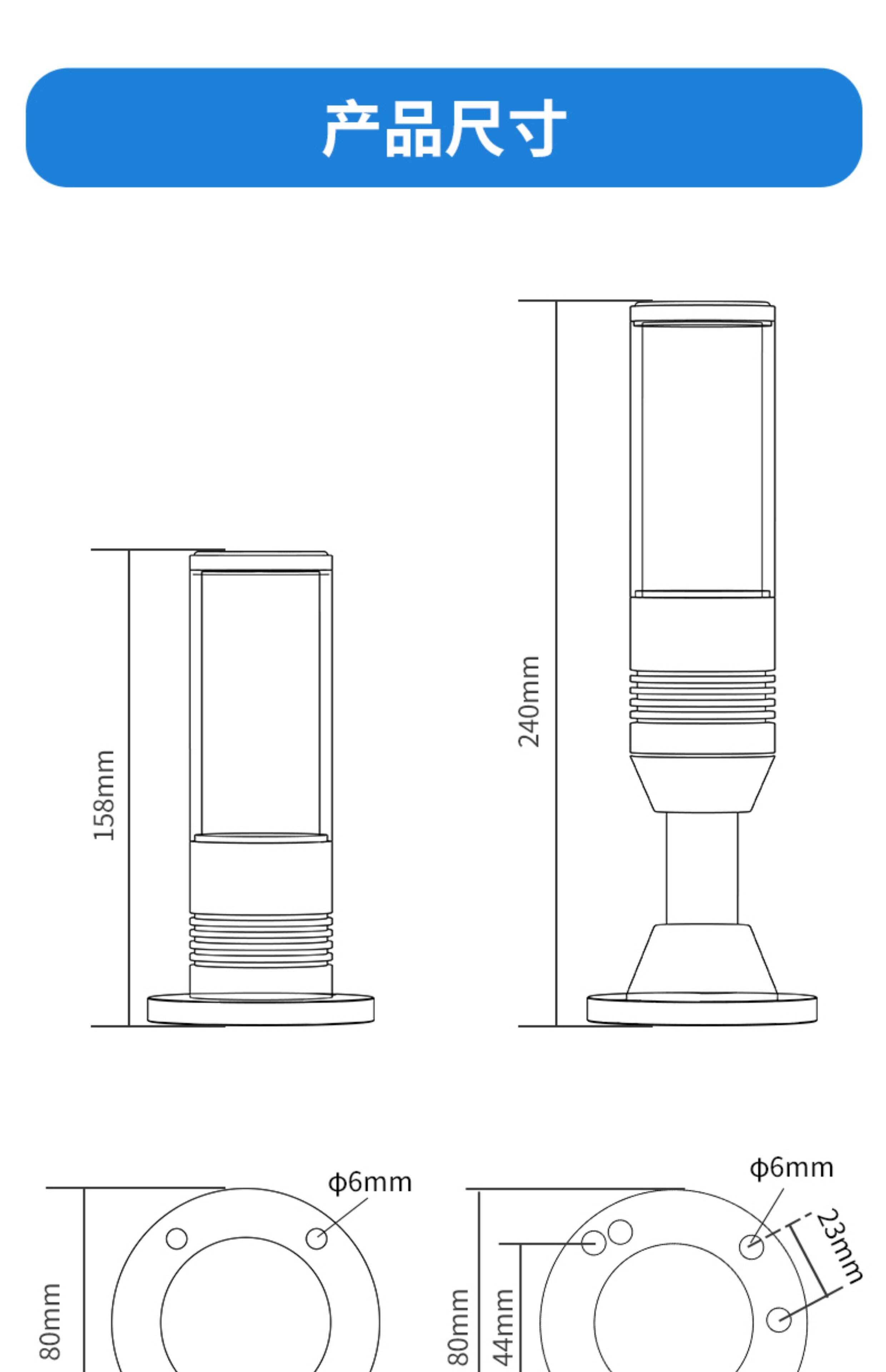

- Base options: standard (~158mm) / rod (~240mm) / 90° foldable (~263mm)
| Parameter | TY50 |
|---|---|
| Model | TY50 |
| Type | 3-Color LED Warning Light |
| Light Source | LED, steady-on |
| Light Colors | Red / Yellow / Green (independent groups) |
| Rated Voltage | DC24V |
| Housing | High-strength Aluminum Alloy |
| Lens | High-transparency PC |
| Protection | IP50 (dust-protected, not waterproof) |
| Buzzer | Optional (selected at order) |
| Base | 4-hole flange, screw fixing (rod / 90° foldable options) |
| Lamp Diameter | Approx. 50mm |
| Overall Height | Approx. 158mm (standard flange base) |
| Operating Temp | -25°C to +55°C |
Product Gallery
TD50 Series
Multi-Layer LED Tower Signal Light (1-4 Layers) — Foldable 90° — Square Snap-Fit Base — DC24V / AC110V / AC220V — Optional Buzzer

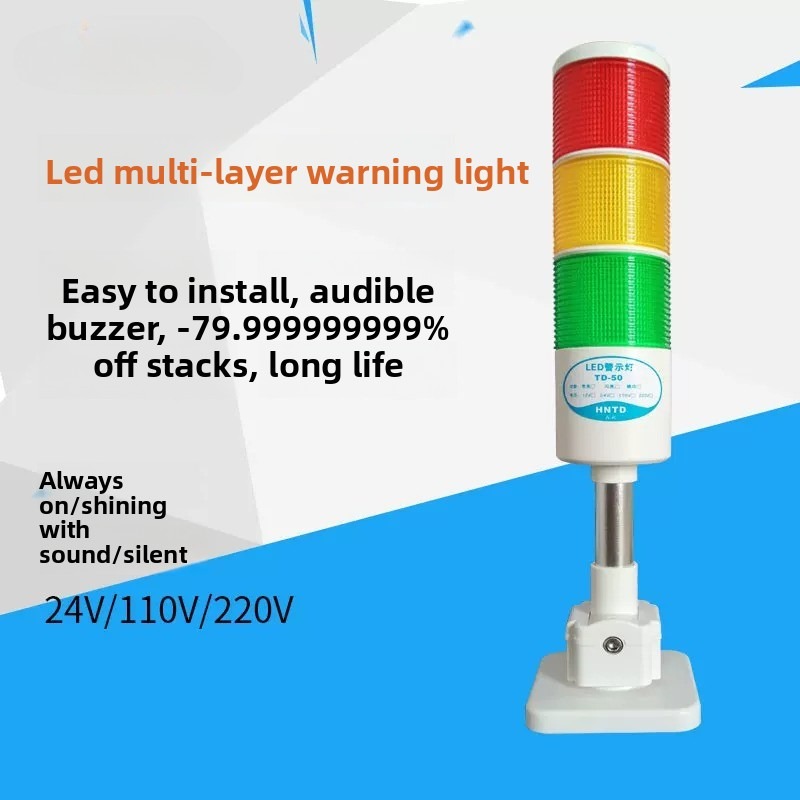

TD-50 Multi-Layer LED Tower Signal Light
Modular LED tower signal light stacking red, yellow and green high-brightness LED sections (1 to 4 layers, supplied as ordered) for clear machine status indication. The lamp head folds down 90° for compact storage or low-profile running, and the new square snap-fit base installs without screws or tools while staying compatible with old round-base hole patterns. IP50 dust-protected. Ideal for CNC machine tools, automated production lines, warehousing and packaging equipment. DC24V / AC110V / AC220V models with optional audible buzzer. Mounting screws are not included.
- Multi-layer stacked LED sections — red / yellow / green, 1-4 layers supplied as ordered
- Voltage: DC24V / AC110V / AC220V (model dependent)
- Optional audible buzzer — sound + light synchronized alarm (selected at order)
- Foldable 90° lamp head — space saving, easy storage

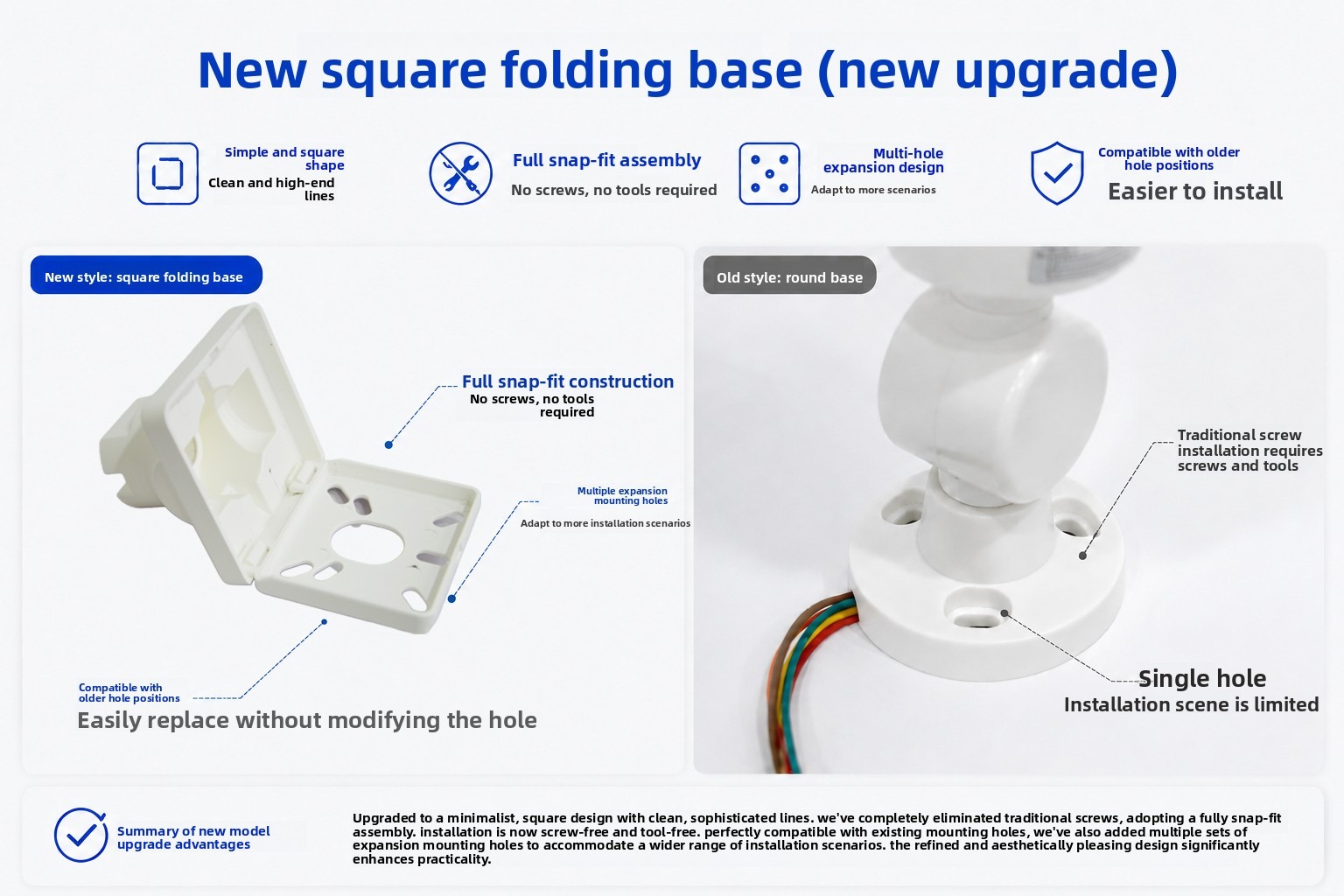

- New square snap-fit base — screw-free, tool-free, multi-hole, old-hole compatible
- Signal modes: steady on / flashing / buzzer alarm / silent
- CE certified, IP50 dust-protected — for CNC machines, automation lines, warehousing, packaging
| Parameter | TD-50 |
|---|---|
| Model | TD-50 Series |
| Type | LED Tower Signal Light |
| Light Source | High-brightness LED |
| Light Colors | Red / Yellow / Green (1-4 layers per order) |
| Rated Voltage | DC24V / AC110V / AC220V (model dependent) |
| Signal Modes | Steady on / flashing / buzzer alarm / silent |
| Protection | IP50 (dust-protected, not waterproof) |
| Buzzer | Optional (selected at order) |
| Base | Square snap-fit folding base, multi-hole, old-hole compatible |
| Mounting Hardware | Screws not included |
| Folding | 90° side fold for compact storage |
| Certification | CE |
| Application | CNC machine tools, automation lines, warehousing, packaging |
Product Gallery
M4 Series
USB Serial Port Protocol Control Multi-Layer Multi-Color Warning Light — CH340 Virtual COM Port — Red / Yellow / Green — USB 5V DC — Built-in Buzzer

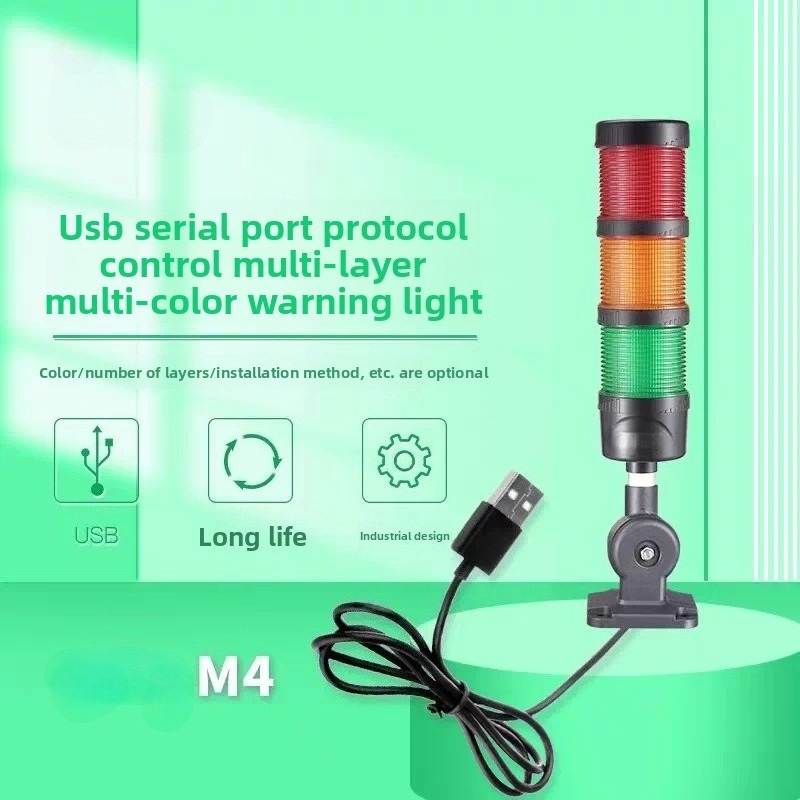

M4 USB Serial Port Multi-Layer Warning Light
Industrial multi-layer multi-color warning light (signal tower light) powered and controlled through a single USB cable — no PLC output, no relay and no extra wiring. Plug the USB connector into any PC and the lamp appears as a virtual COM port (CH340) driven by short 5-byte hexadecimal commands. Three stacked high-brightness LED layers (red / yellow / green) show machine status at a glance, while the built-in buzzer adds an audible alarm. Working mode, buzzer and flash frequency are all set from the command, and four flashing rates (steady / 0.85 s / 1.7 s / 2.5 s) are available. The buzzer is built into the lamp body and does not take up a light layer. Ideal for machine builders, test engineers, automation integrators, server rooms and production lines. Mounting bracket and screws are NOT included.
- USB serial port control — CH340 virtual COM port, 9600 bps, N, 8, 1
- 3-color RYG light layers — one color per layer, colors and layer count optional
- 5-byte hex protocol — header 0xFF, tail 0xAA, easy to script
- Built-in buzzer — mounted inside the lamp body, does not use a light layer
- 4 flash frequencies — steady, or 0.85 s / 1.7 s / 2.5 s per flash
- Power: USB 5V DC, Type-A — no external adapter needed
- Mounting: screw holes on the lamp base — bracket and screws NOT included
- Industrial long-life LED design, CE
| Parameter | M4 |
|---|---|
| Model | M4 |
| Type | USB serial port protocol control multi-layer multi-color warning light |
| Light Source | High-brightness LED, long life |
| Light Colors | Red / Yellow / Green (one color per layer; colors and layers optional) |
| Number of Layers | 3 light layers (built-in buzzer does not use a light layer) |
| Power Supply | USB 5V DC, USB Type-A connector (no external adapter) |
| Interface | USB to serial converter, CH340 chipset, virtual COM port |
| Serial Parameters | 9600 bps, None parity, 8 data bits, 1 stop bit |
| Protocol Frame | 0xFF + working mode + buzzer mode + flash frequency + 0xAA (5 bytes) |
| Working Mode | 0x01 off / 0x02 green / 0x03 yellow / 0x04 red |
| Buzzer Mode | 0x01 off / 0x02 on (built-in buzzer, no extra light layer) |
| Flash Frequency | 0x01 off / 0x02 0.85 s / 0x03 1.7 s / 0x04 2.5 s per flash |
| Example Command | FF 02 01 01 AA (green, buzzer off, no flash) |
| Return Value | Identical to the command sent |
| Debug Software | Serial Port Debugging Assistant (commassistent.exe) or any serial terminal |
| Base | Screw holes on the lamp base (installation method optional) |
| Mounting Hardware | Mounting bracket and screws NOT included |
| Certification | CE |
| Application | CNC machines, test benches, server racks, network cabinets, production lines, call stations |
Product Gallery

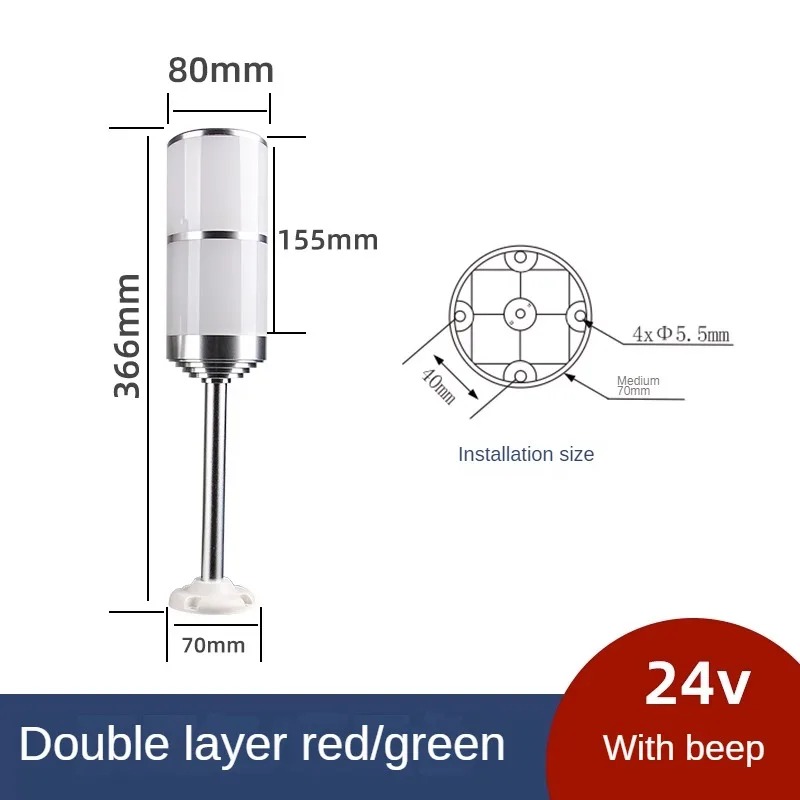

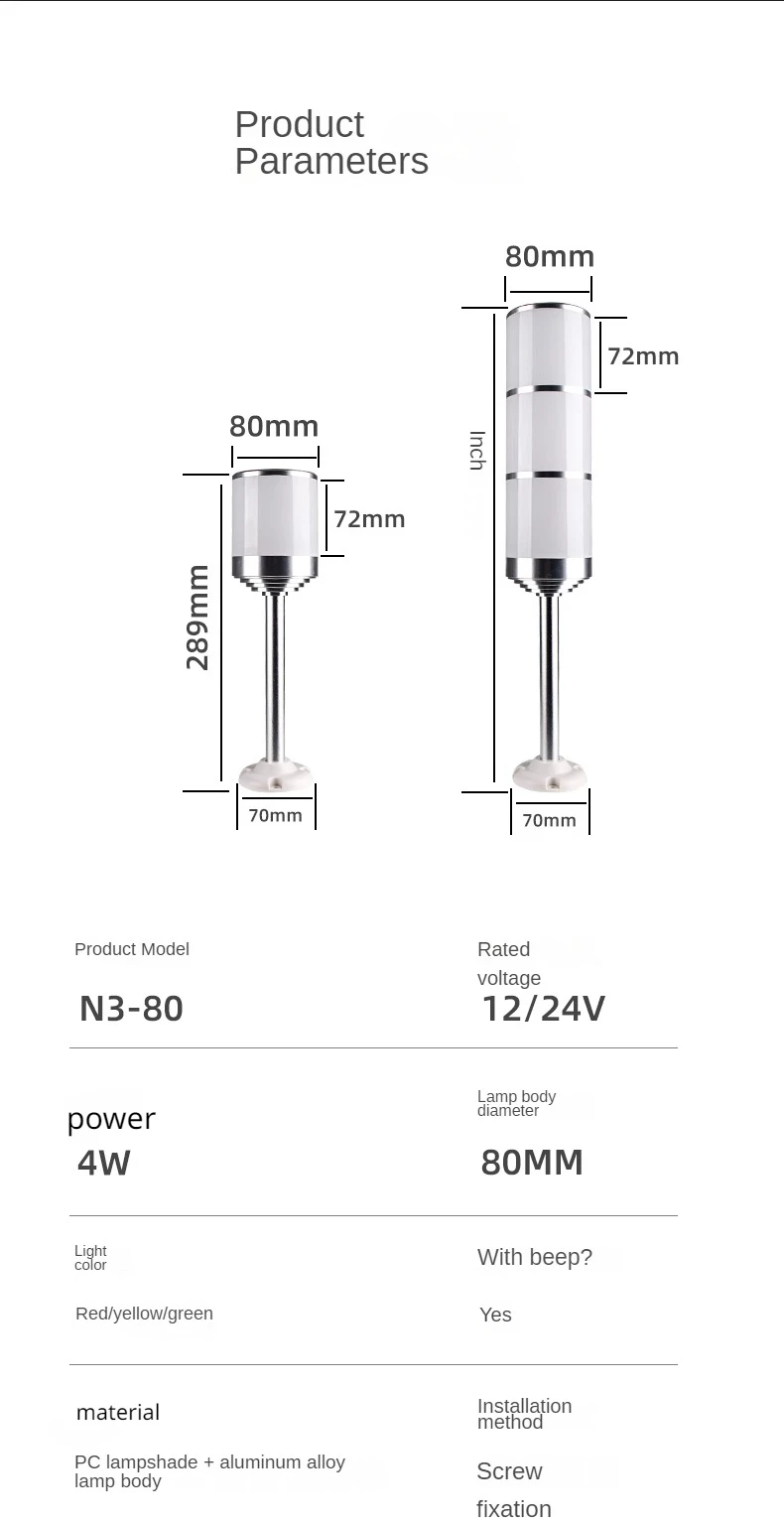

N3-80 Series
80mm Large Diameter LED Signal Tower Light — DC12-24V — Optional Buzzer

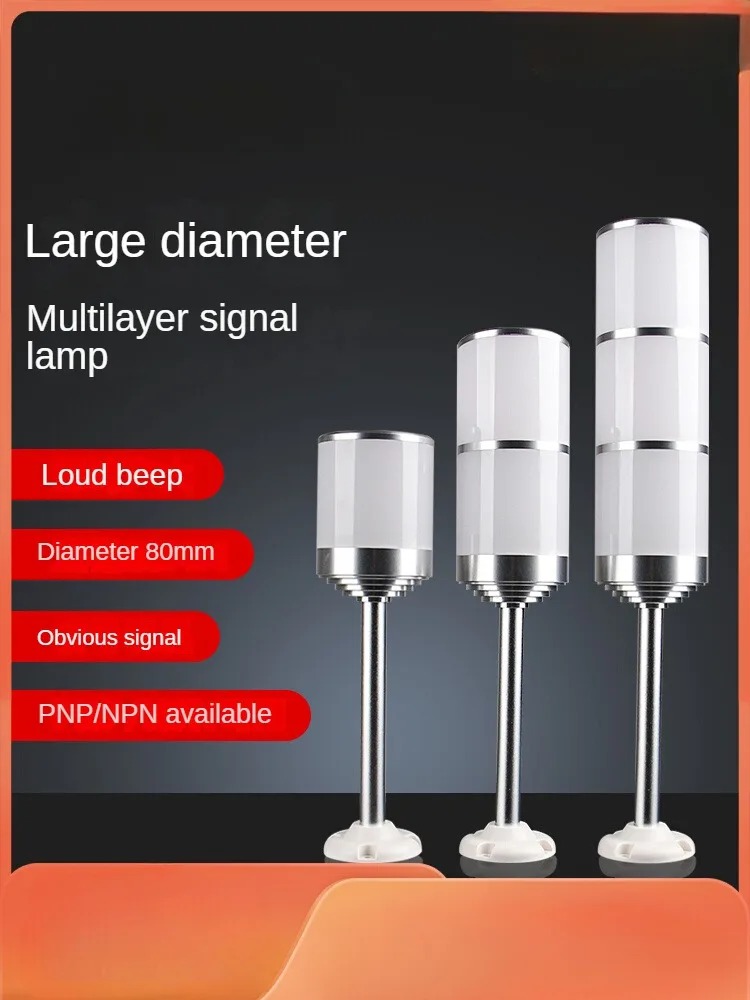

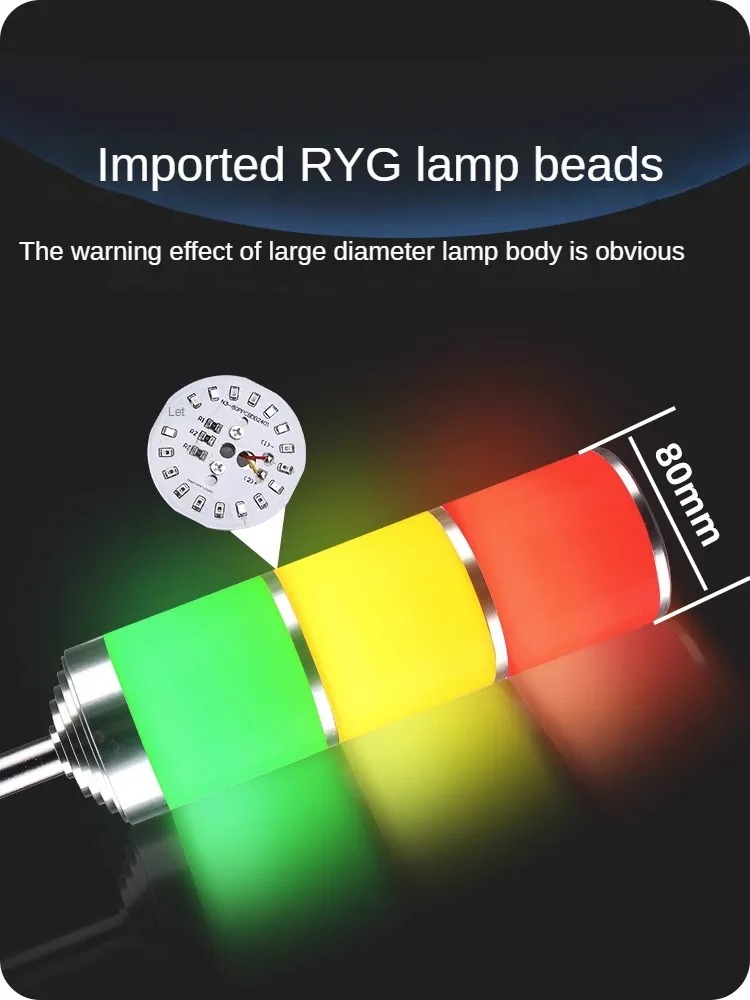

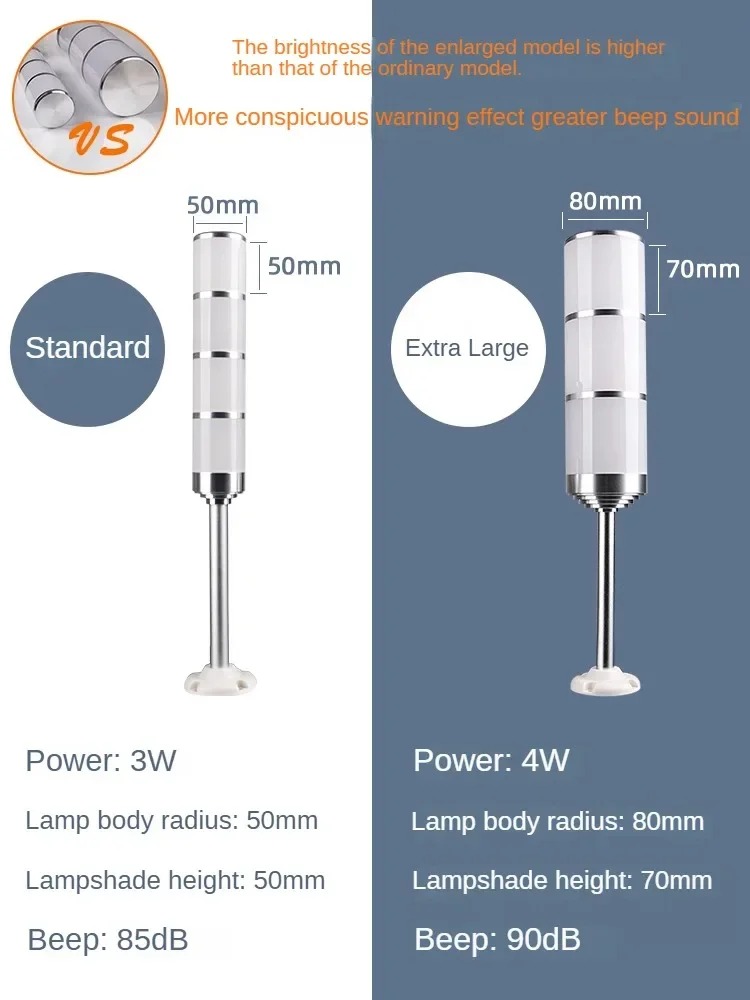

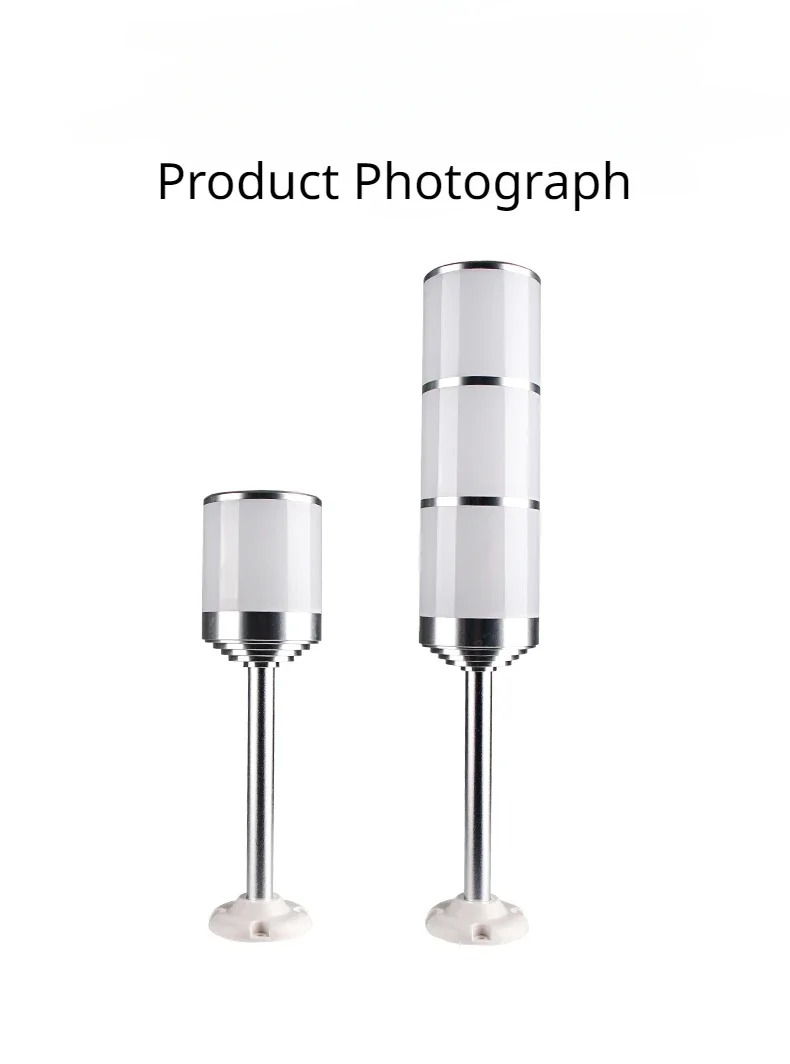

N3-80 80mm Large Diameter Signal Light
Professional large-diameter (80mm) LED signal tower light with imported RYG LED beads. Available in 2-layer (Red/Green) and 3-layer (Red/Yellow/Green) configurations. Features a high-transparency milky white PC lampshade for soft, non-dazzling light, and an optional built-in buzzer (~90dB). High-strength aluminum alloy construction with thickened PC base for durability.
- Diameter: 80mm (extra large for maximum visibility)
- Voltage: DC12-24V (wide range)
- Light colors: Red / Yellow / Green (RYG)

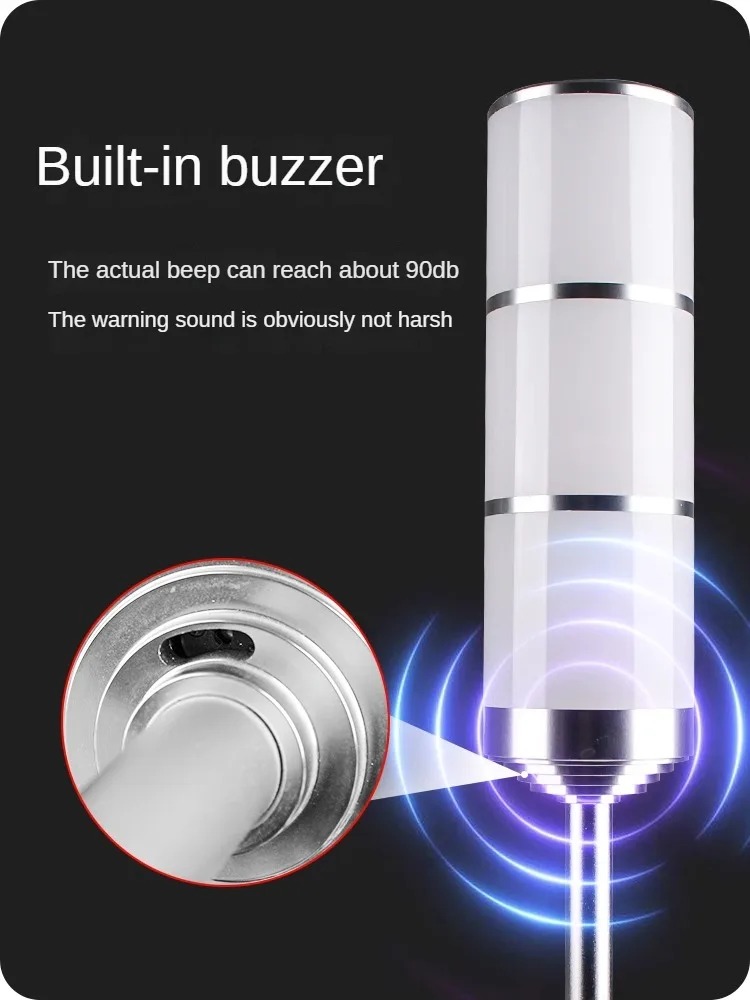

- Optional buzzer: ~90dB loud but not harsh
- Material: Aluminum alloy + PC lampshade
- Configurations: 2-layer (R/G) or 3-layer (R/Y/G)
- PNP/NPN available for PLC integration
| Parameter | N3-80 |
|---|---|
| Model | N3-80 |
| Type | LED Signal Tower Light |
| Diameter | 80mm (large) |
| Rated Voltage | DC12-24V |
| Power | 4W (3-layer with buzzer) |
| Light Colors | Red / Yellow / Green (RYG) |
| Buzzer | ~90dB (optional) |

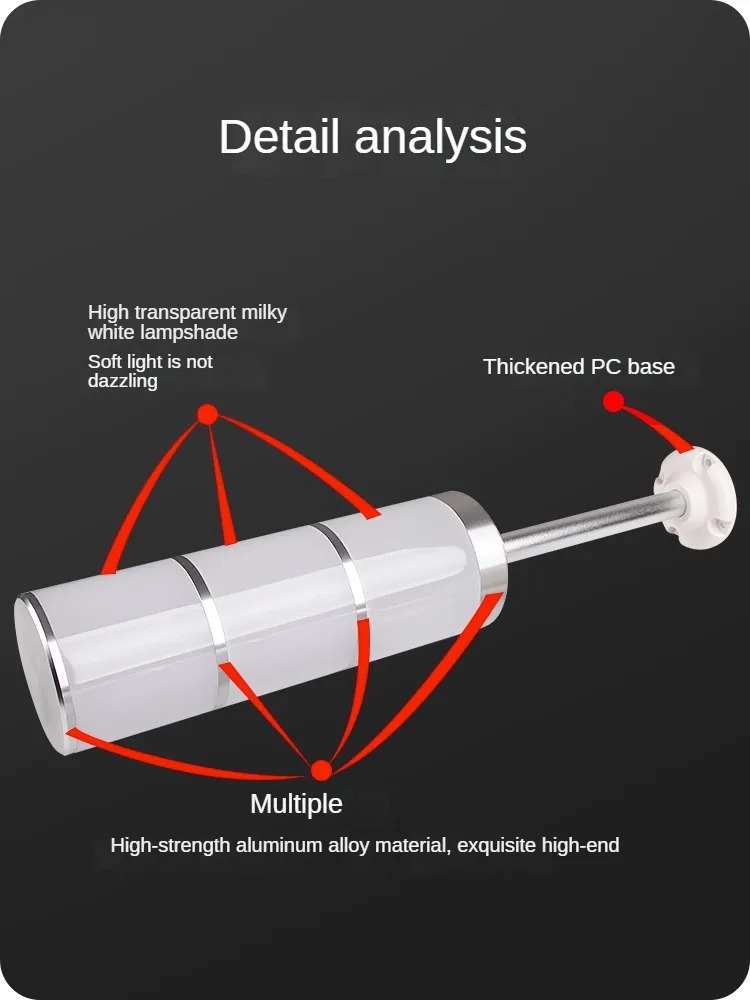

| Lamp Body | High-strength Aluminum Alloy |
| Lampshade | High-transparency PC (milky white) |
| Base | Thickened PC |
| Configurations | 2-layer (R/G) or 3-layer (R/Y/G) |
| PNP/NPN | Available (specify when ordering) |

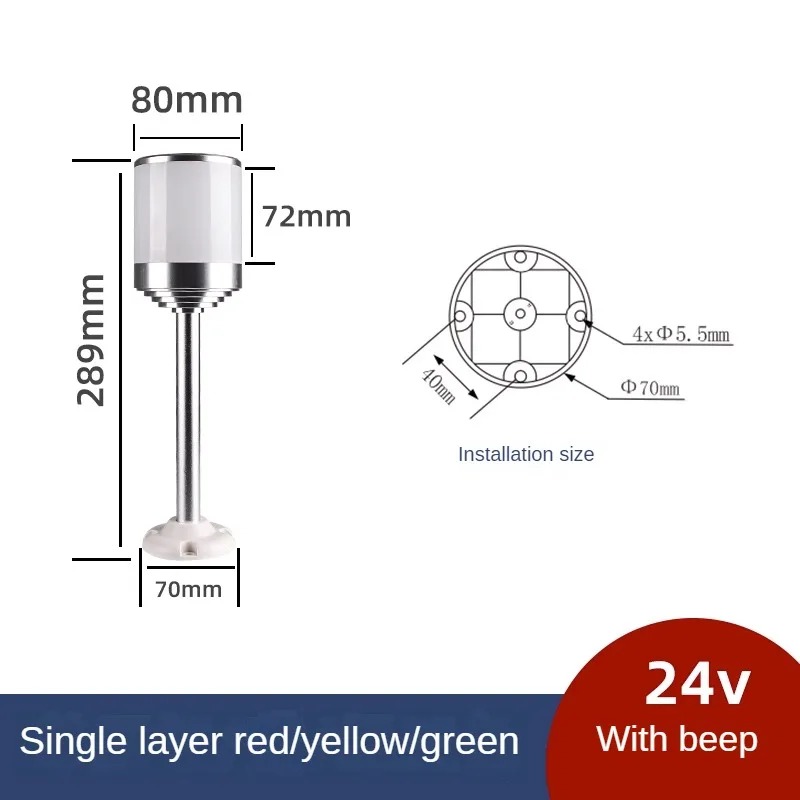

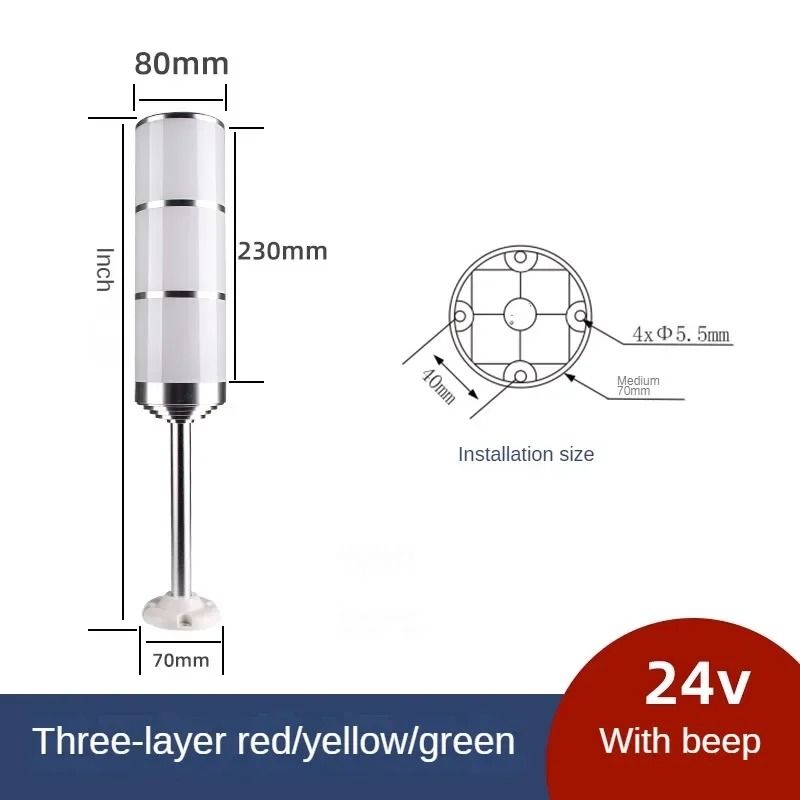

| Mounting | 4x Φ5.5mm on Φ70mm PCD, center Φ40mm |
| Operating Temp | -25°C to +55°C |
Product Gallery
EXZS50NXB Integrated 3-Color Warning Light with 85dB Buzzer
All-in-one single-layer three-color LED warning light with a built-in high-decibel buzzer (up to 85dB) and a 180° foldable base. The Red, Yellow and Green LED groups share one compact Φ50mm transparent PC shade but are wired independently, so a single lamp can display machine running, warning and fault status - and sound the alarm at the same time. The foldable base allows flat panel mounting, vertical installation and easy storage or transport. Suited to CNC lathes, machine tools, automation equipment and packaging machinery. DC24V, 1W per color.
- Colors: Red / Yellow / Green (3 independent channels)
- Power: 1W per color | Input voltage: DC24V (non-polarized)
- Built-in buzzer: 85dB, 24V always-on sound and light together

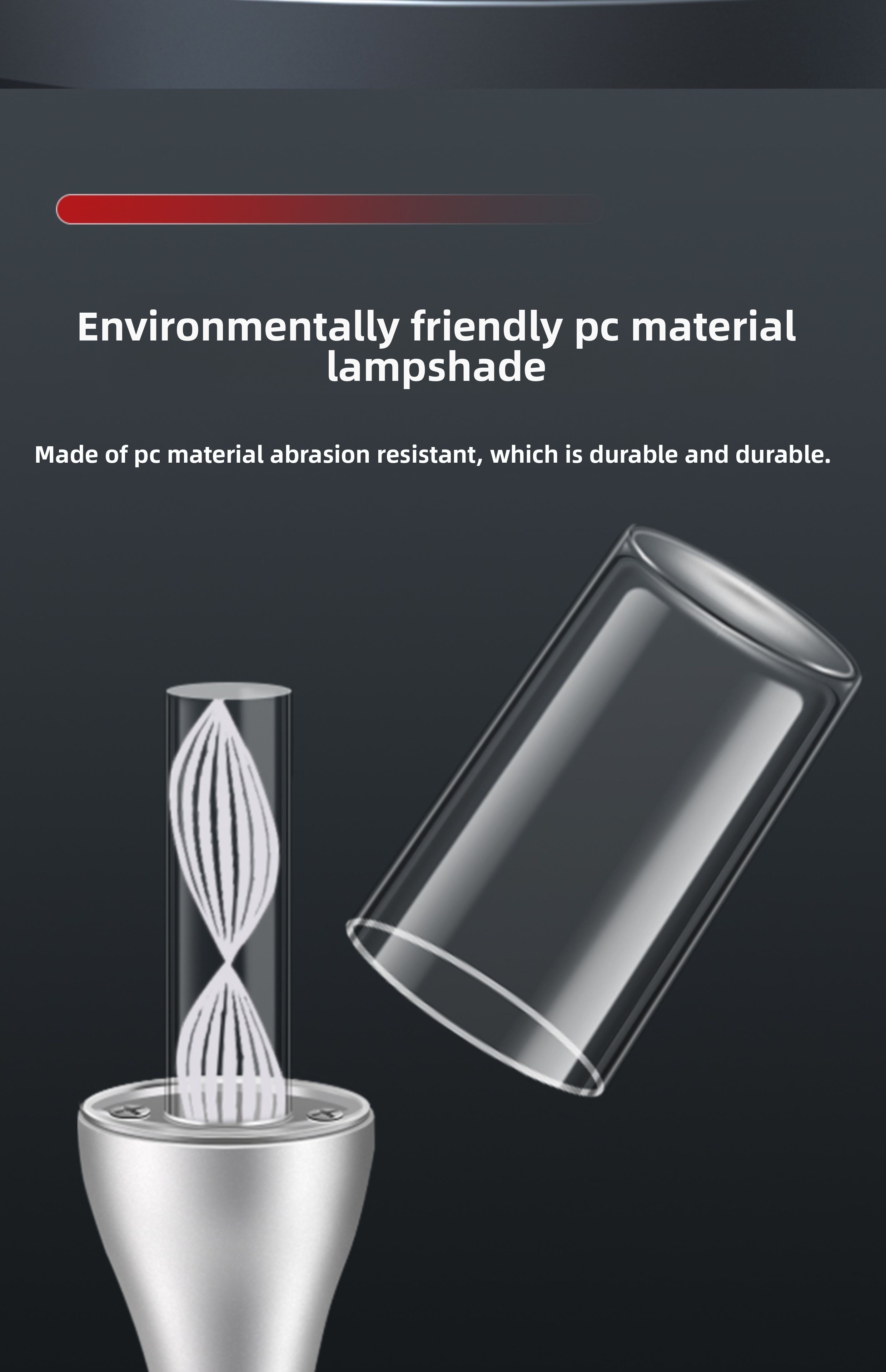

- PC lampshade: abrasion resistant, wide uniform light

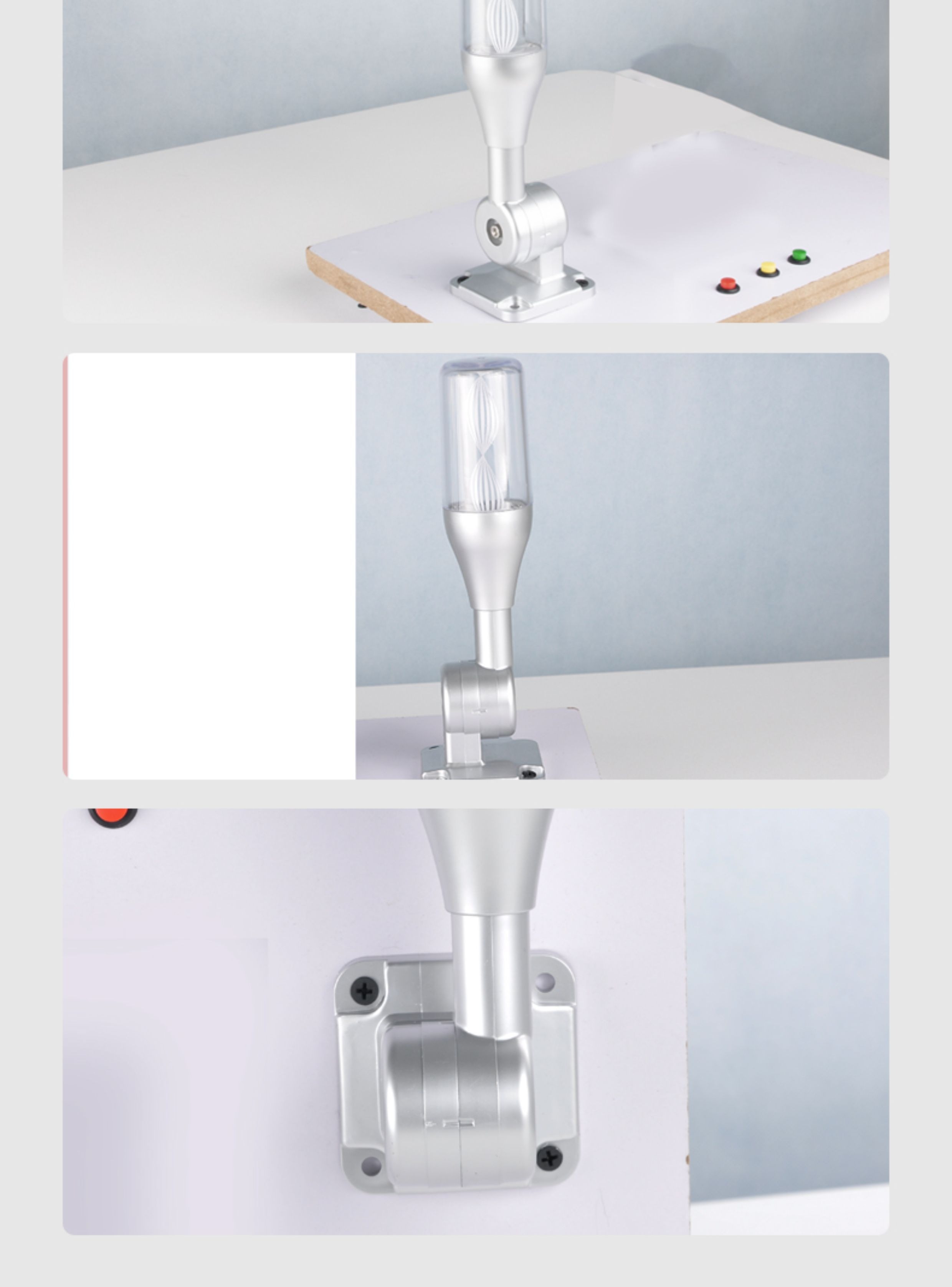

- Size: 50mm | Base: 180° foldable with 4 mounting holes
- CE certified | 1-year warranty | Mounting screws not included
| Parameter | EXZS50NXB |
|---|---|
| Model | EXZS50NXB |
| Type | Integrated 3-Color LED Warning Light (single layer, sound + light) |
| Light Colors | Red / Yellow / Green (independently wired channels) |
| Power | 1W per color |
| Rated Voltage | DC24V |
| Built-in Buzzer | High-decibel, up to 85dB, 24V always-on sound + light |
| Power Input | Non-polarized (+ / - interchangeable) |
| Size | 50mm (lamp head diameter) |
| Base | 180° foldable base with 4 mounting holes |
| Mounting Screws | Not included |
| Lampshade | Environmentally friendly PC (abrasion resistant) |

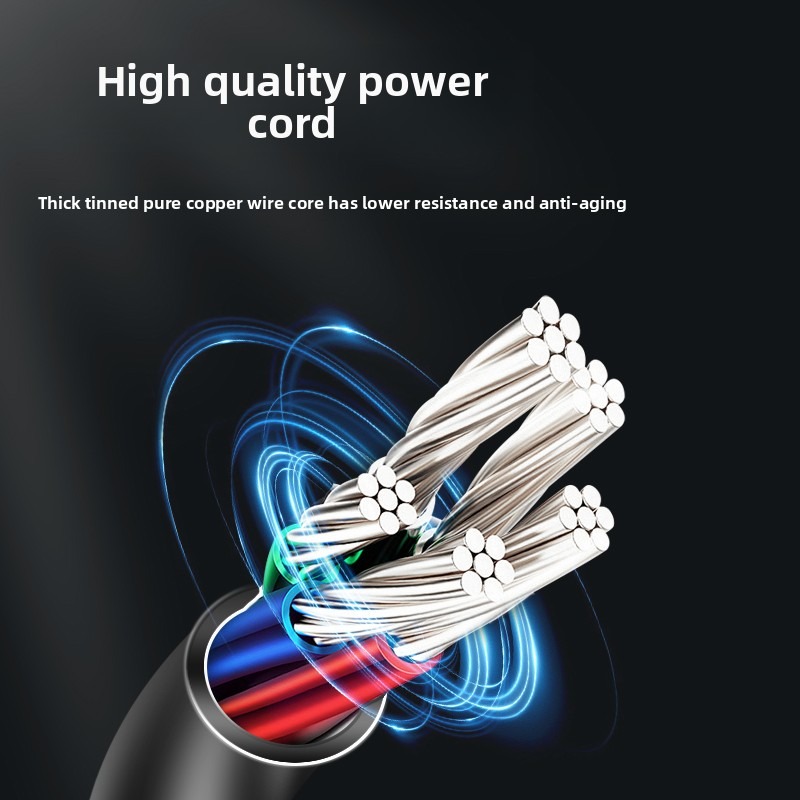

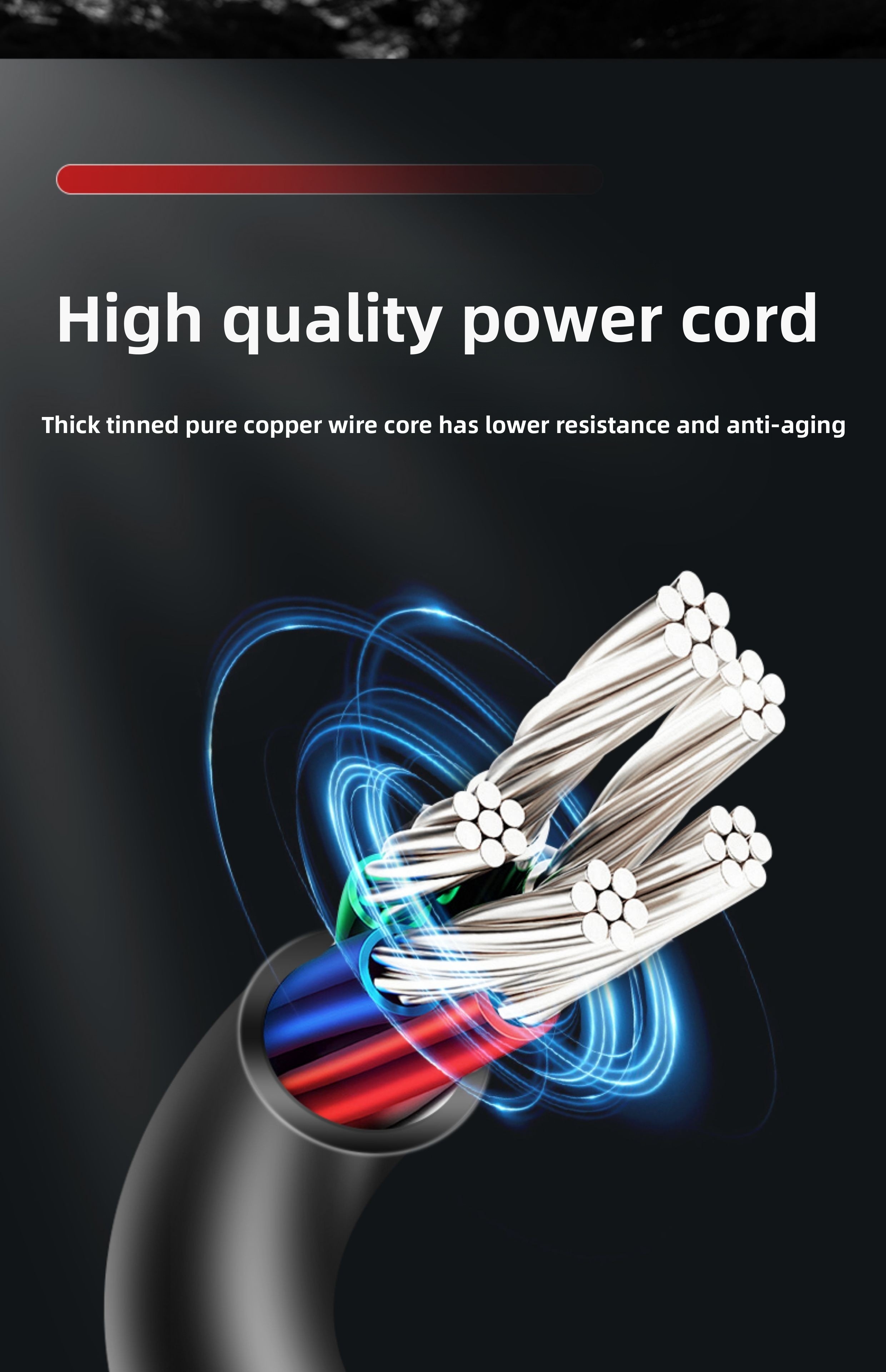

| Cable | 5-core tinned pure copper, pre-attached |
| Ambient / Working Temp | -25°C to +50°C / -15°C to +40°C |
| Certification | CE |
| Warranty | 1 Year |
Product Gallery

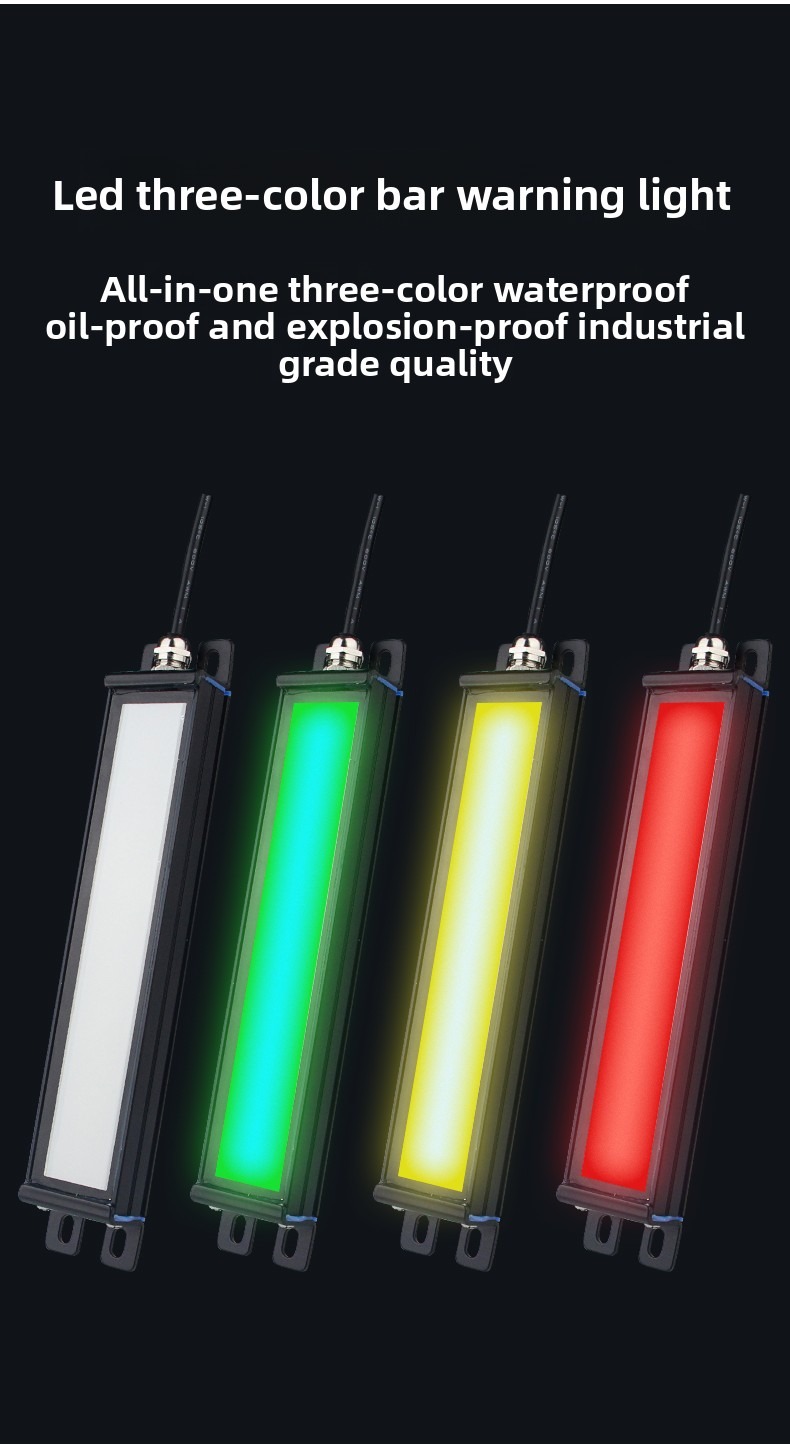

⚠️ H5 Series LED Bar Warning Lights

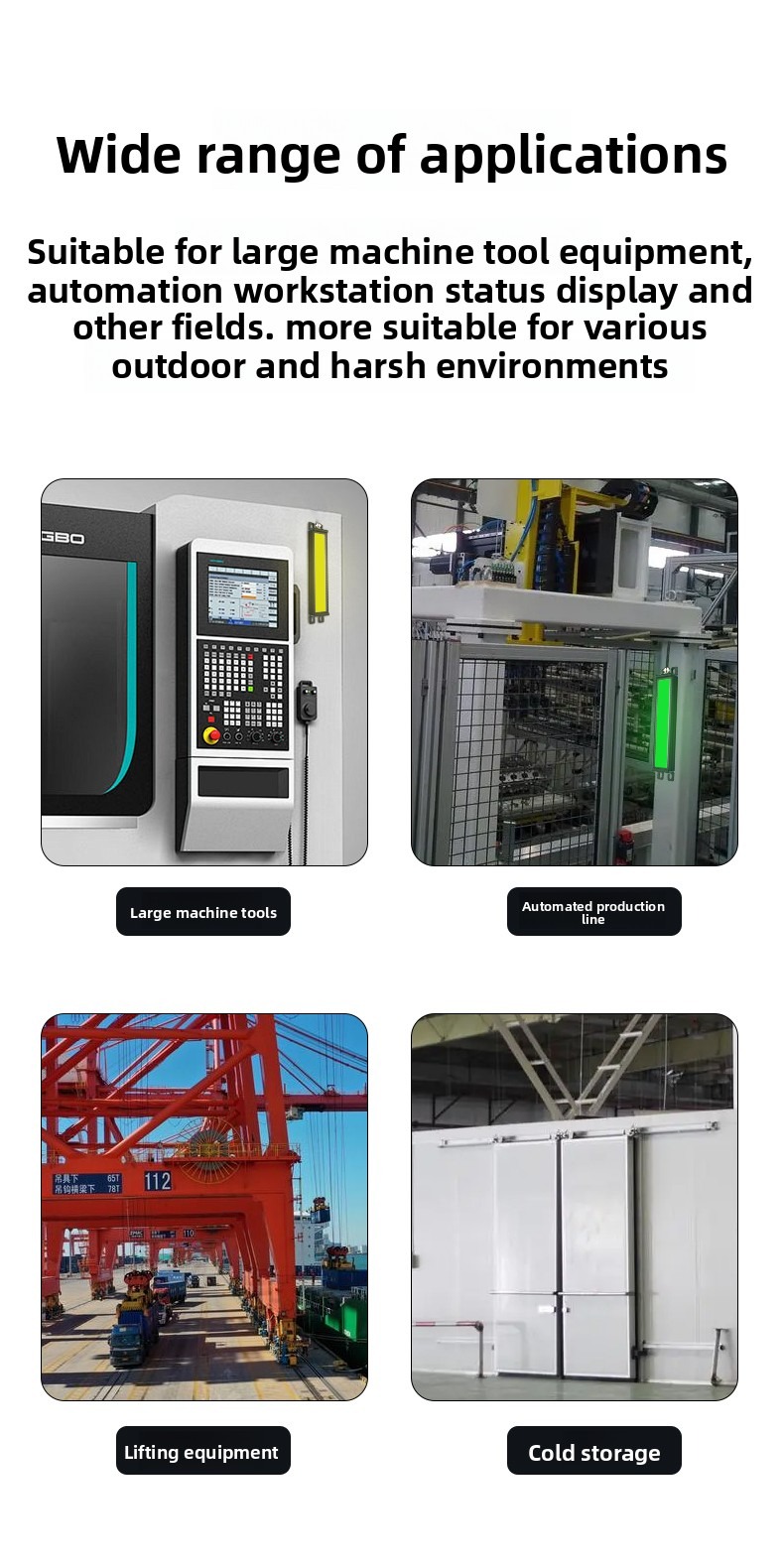

Industrial LED three-color bar warning lights with IP67 waterproof, oil-proof, and explosion-proof protection — available in 4 lengths (200mm to 500mm) for machine tool status indication and automation workstation signaling.

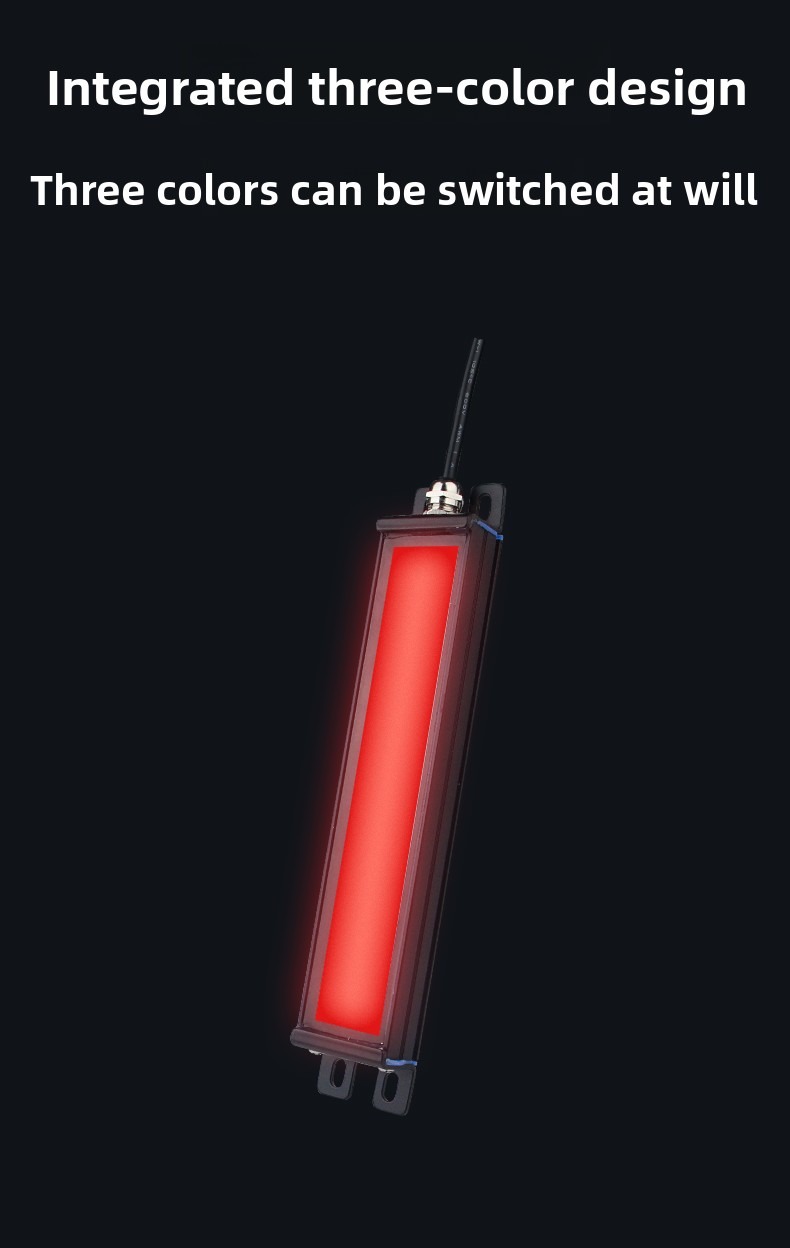

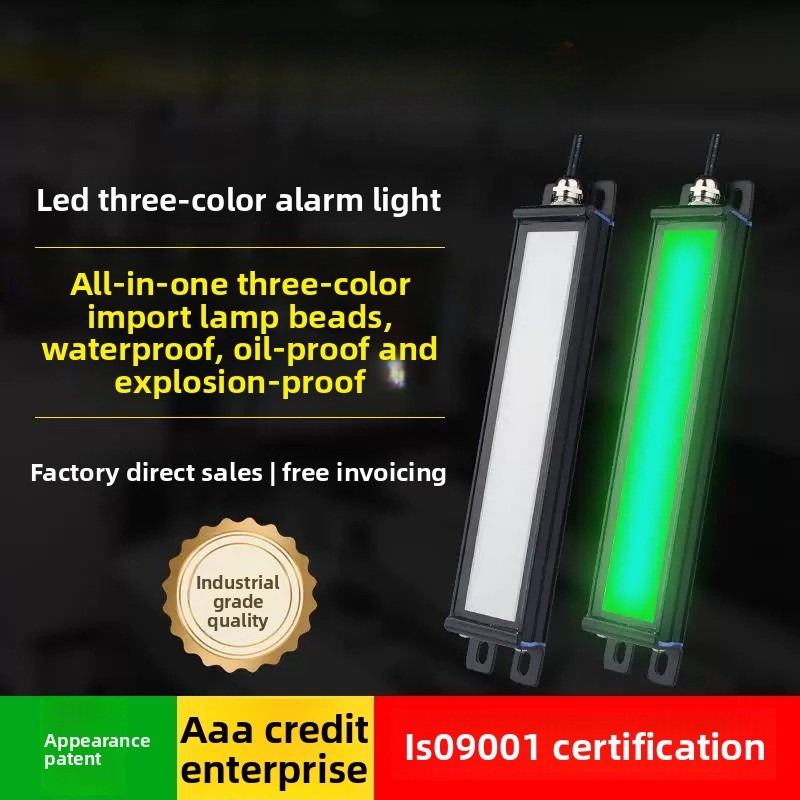

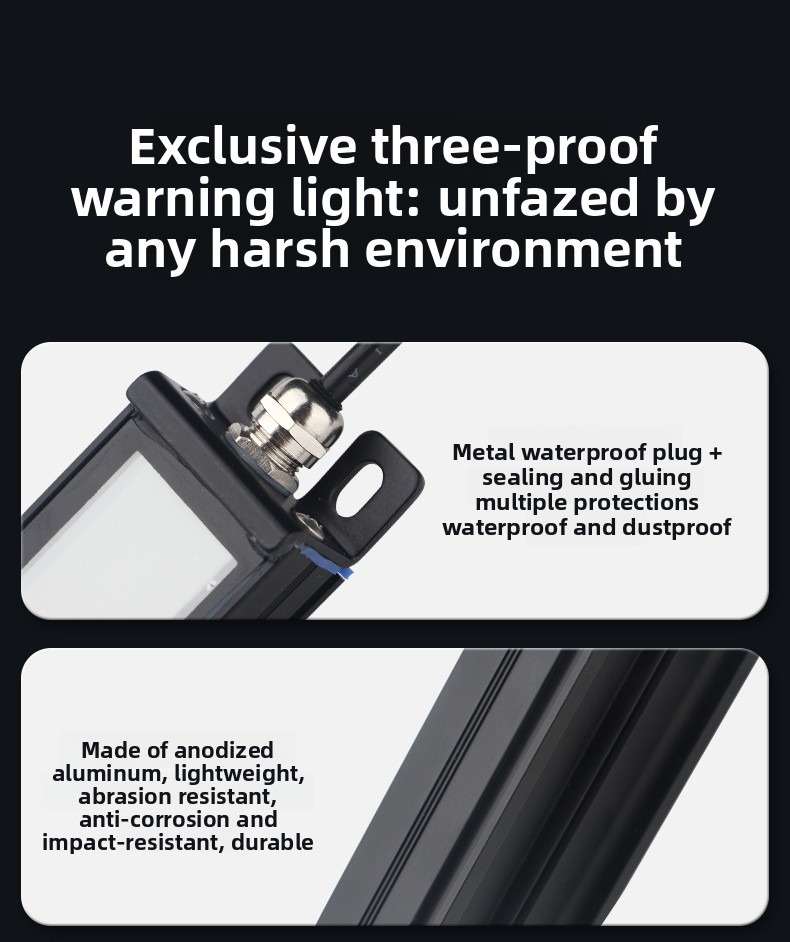

H5 Series LED Three-Color Warning Light
Professional-grade LED bar warning light featuring integrated three-color design (Red/Yellow/Green) with IP67 waterproof, oil-proof, and explosion-proof protection. Constructed with anodized aluminum unibody and 5th generation 3mm tempered glass lens. Available in 4 length options (H5-200, H5-300, H5-400, H5-500) to suit any machine size. DC24V/AC110-220V dual voltage support with simple wiring color configuration.
- Colors: Red / Yellow / Green (wiring-configurable)
- Power: 3W | Voltage: DC24V / AC110~220V
- Protection: IP67 | LED lifespan: 50,000 hours

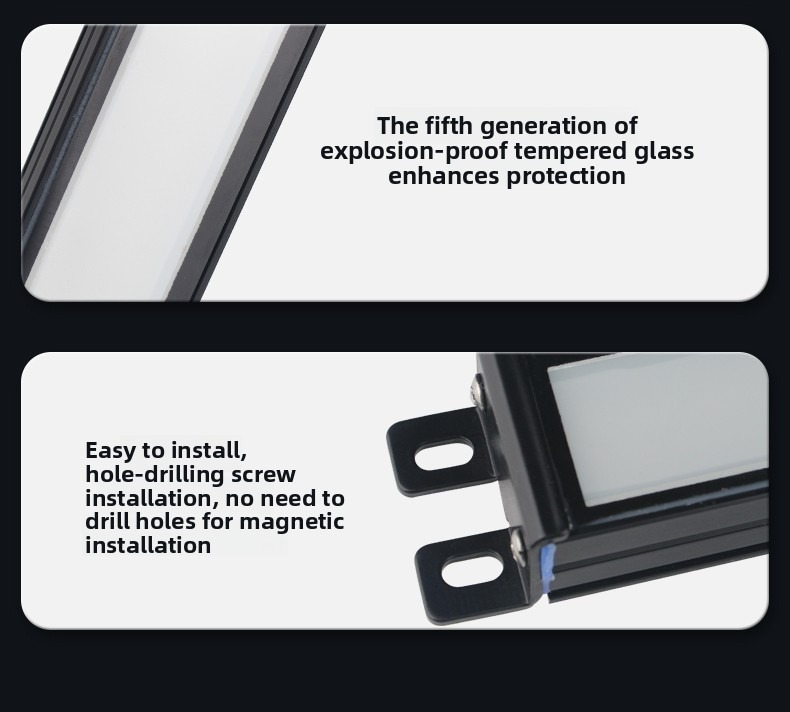

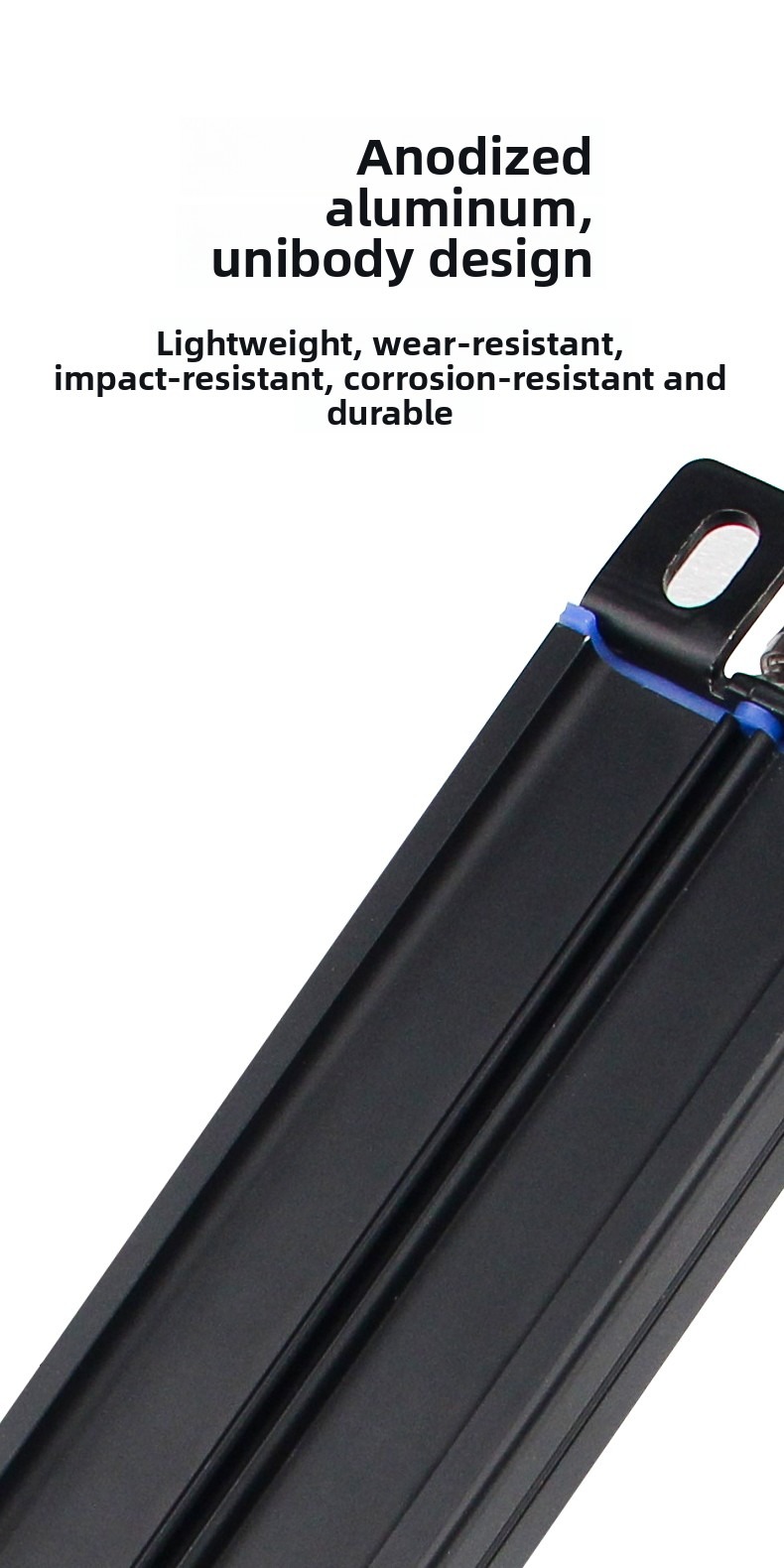

- Material: Anodized aluminum unibody, 5th gen tempered glass (3mm)
- Sizes: H5-200 (245mm), H5-300 (345mm), H5-400 (445mm), H5-500 (545mm)
- Mounting: Screw fixation
- Certifications: CE, RoHS, Explosion-Proof

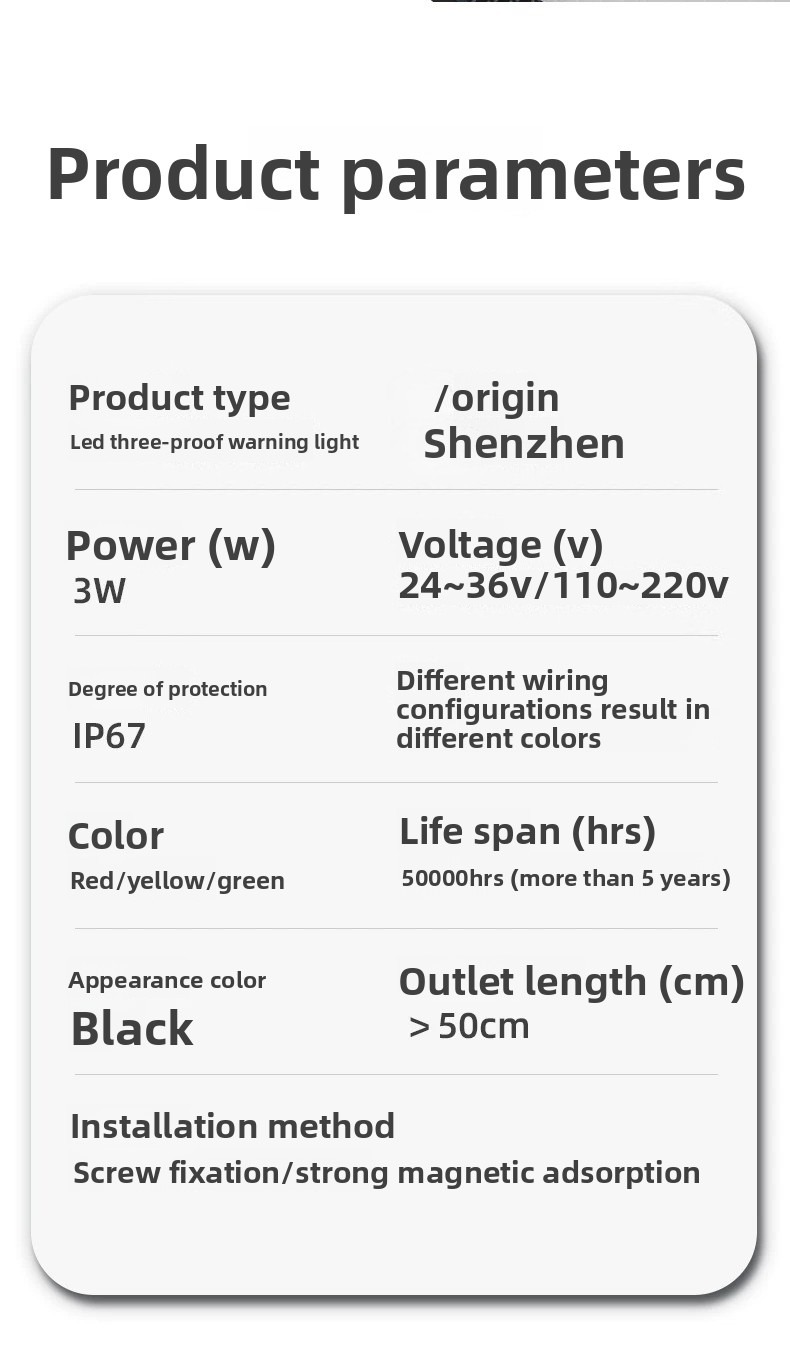

| Parameter | H5 Series |
|---|---|
| Model | H5-200 / H5-300 / H5-400 / H5-500 |
| Type | LED Three-Color Bar Warning Light (Three-Proof) |
| Power | 3W |
| Voltage | DC24V / AC110~220V |
| Protection | IP67 (Waterproof, Oil-Proof, Explosion-Proof) |
| Colors | Red / Yellow / Green |
| LED Source | Imported LED Color Lamp Beads |
| Lifespan | 50,000 hours |
| Housing | Anodized Aluminum Alloy (Unibody) |
| Lens | 5th Gen Tempered Glass (3mm) |
| Cable Length | >50cm |
| Mounting | Screw Fixation |

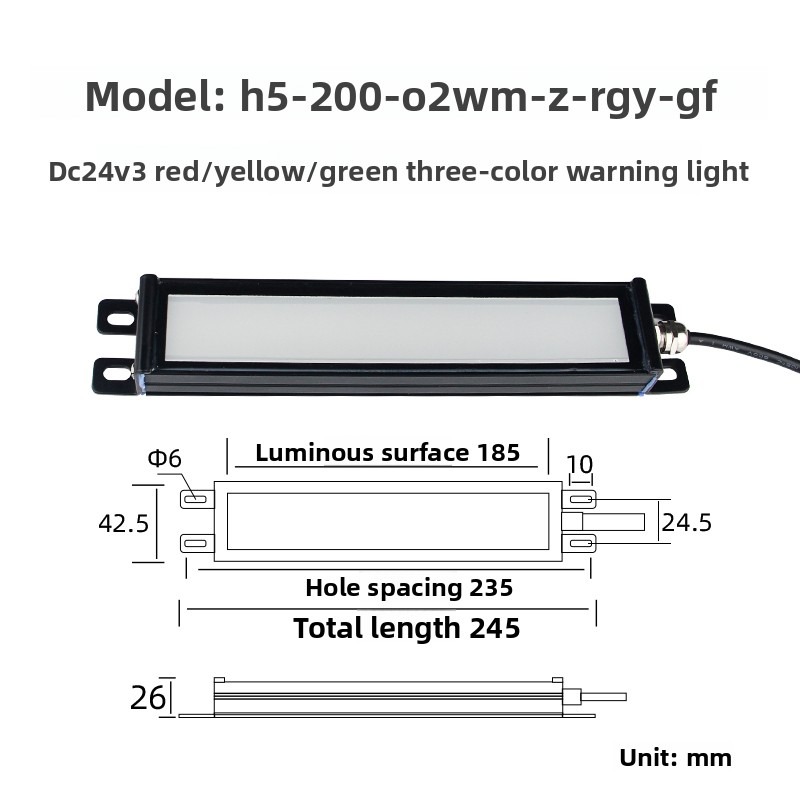

| Dimensions (H5-200) | 245mm(L) × 42.5mm(W) × 26mm(H) — Light Surface 185mm |

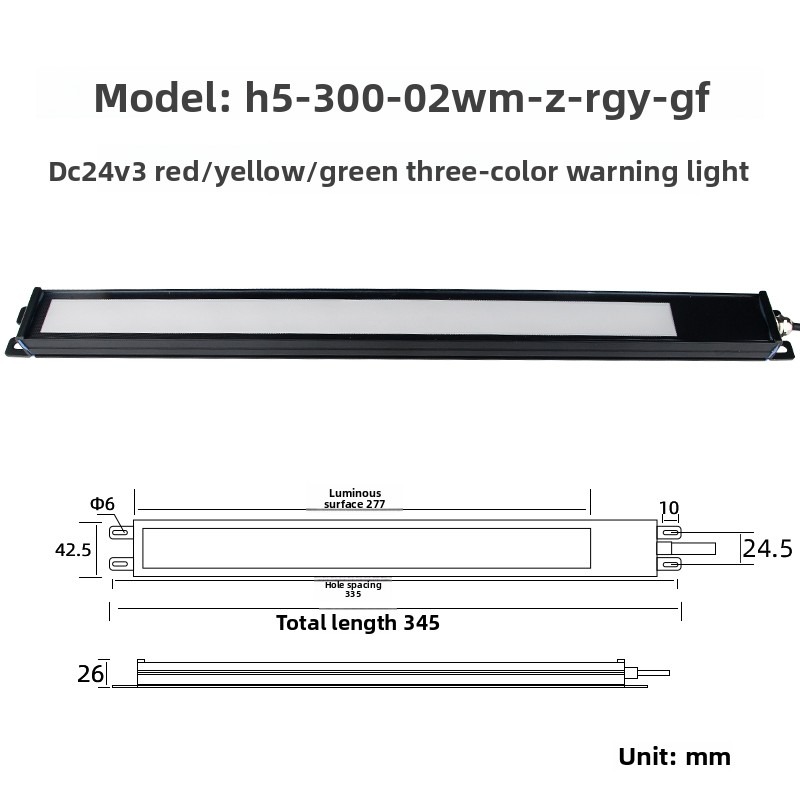

| Dimensions (H5-300) | 345mm(L) × 42.5mm(W) × 26mm(H) |
| Dimensions (H5-400) | 445mm(L) × 42.5mm(W) × 26mm(H) |
| Dimensions (H5-500) | 545mm(L) × 42.5mm(W) × 26mm(H) — Light Surface 420mm |
| Certifications | CE, RoHS, Explosion-Proof |
Product Details & Dimensions
✈️ Aviation Obstruction Lights
High-intensity LED aviation obstruction lights for building warning — solar-powered and AC-powered options, IP65, visible up to 7km.

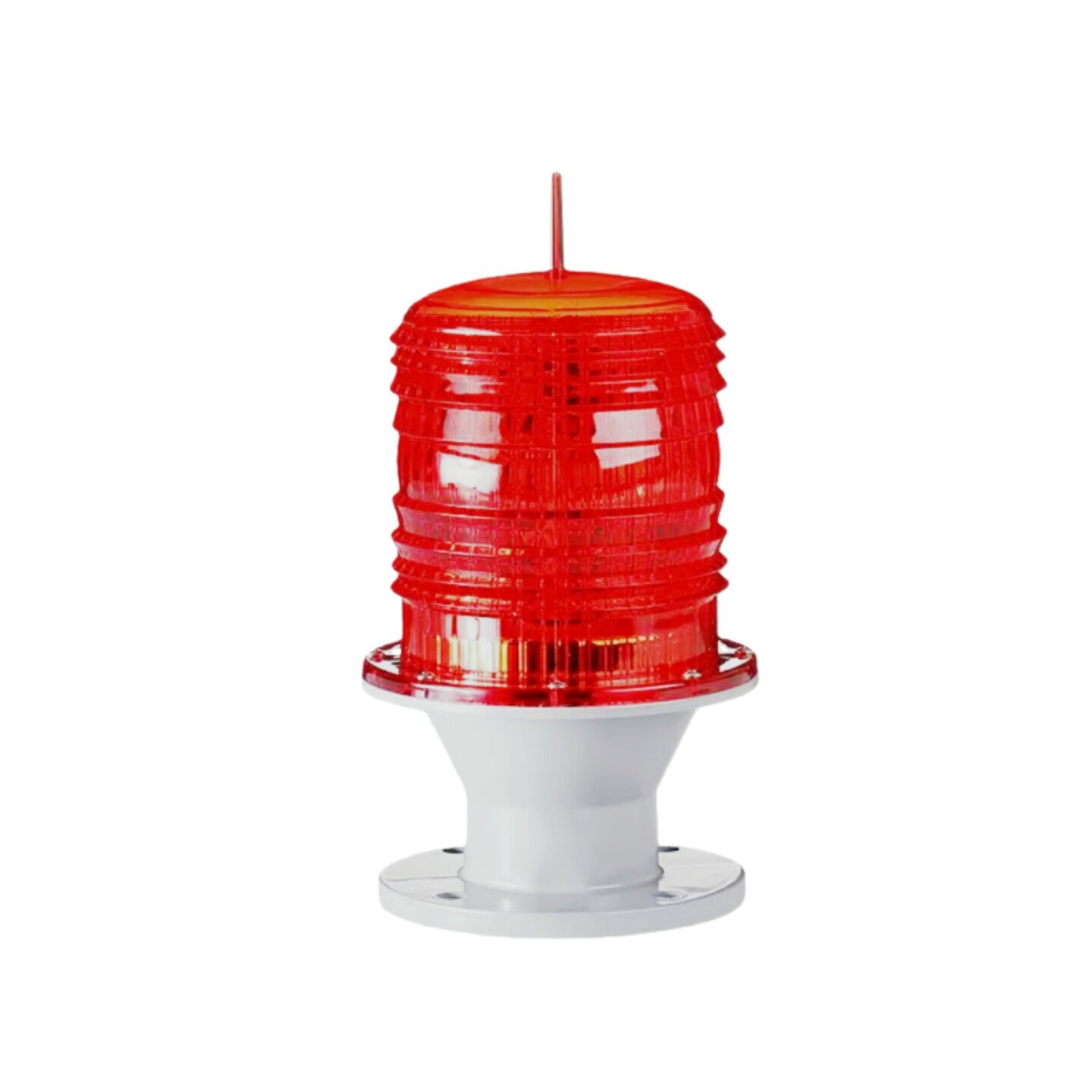

TGZ-122LED / GZ-122LED
Solar & AC Powered Aviation Obstruction Light — IP65 — Visible 6.4km

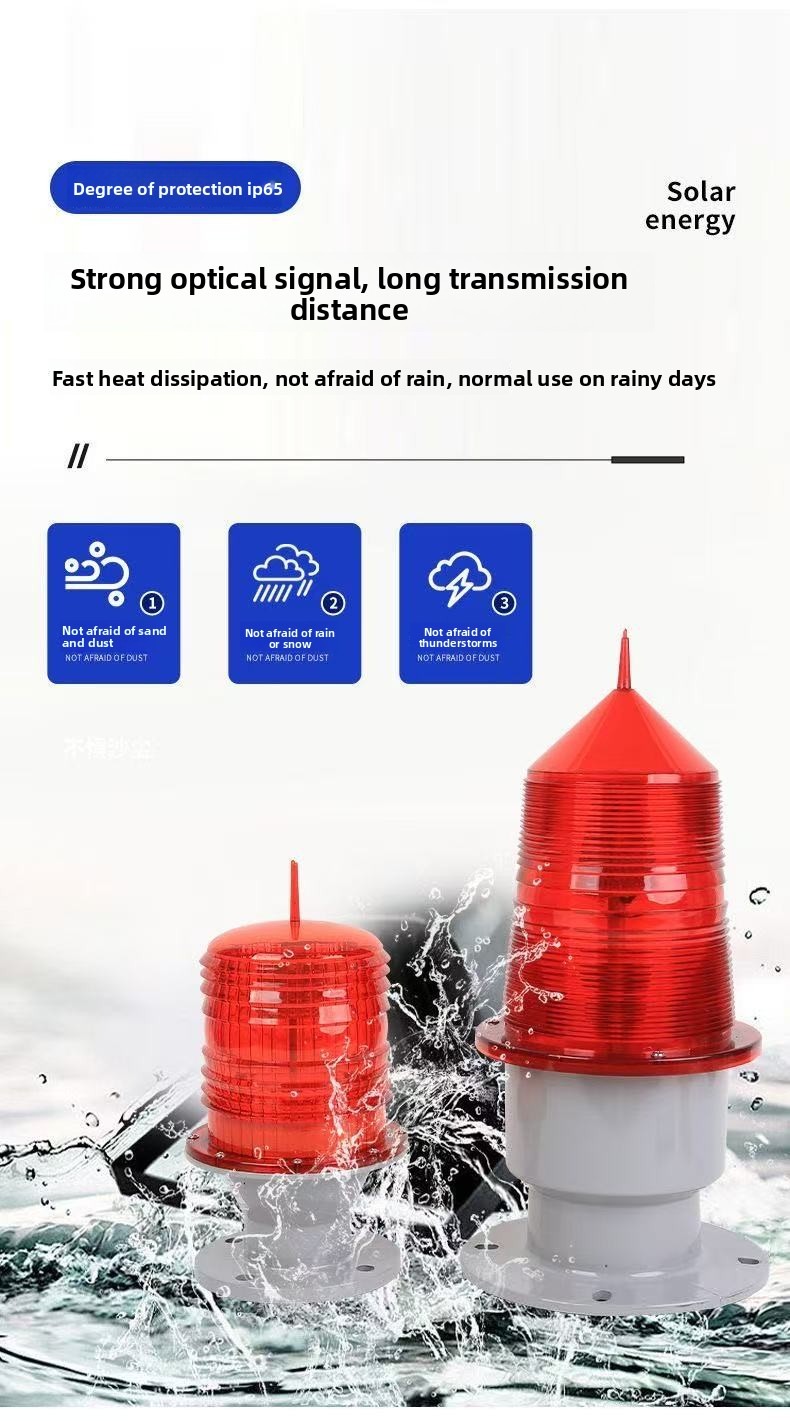

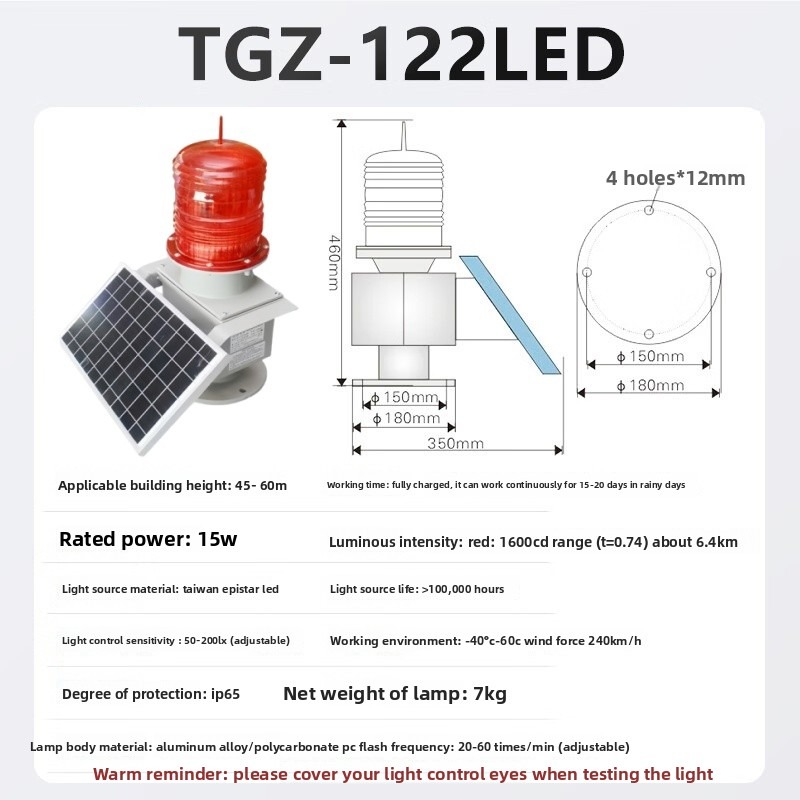

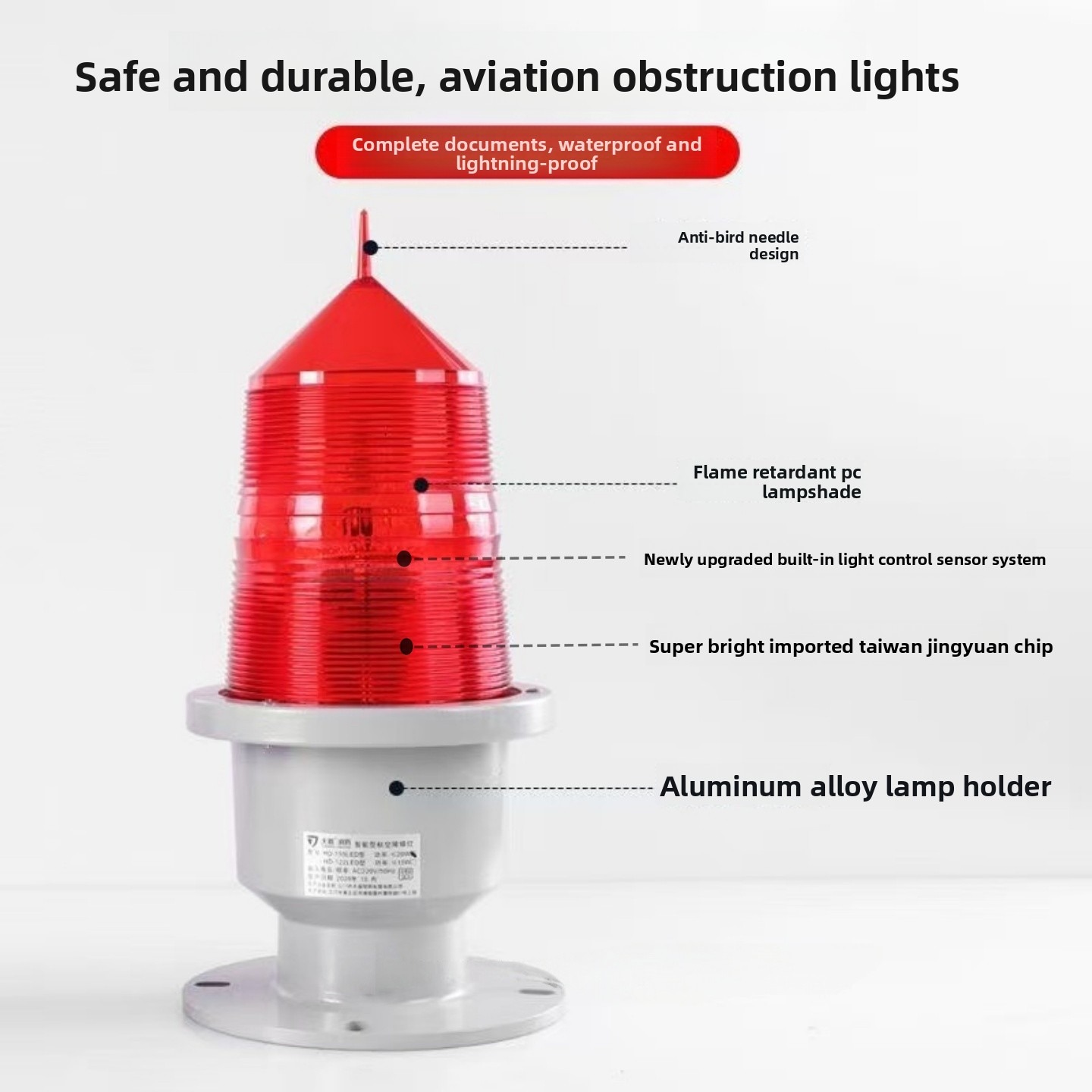

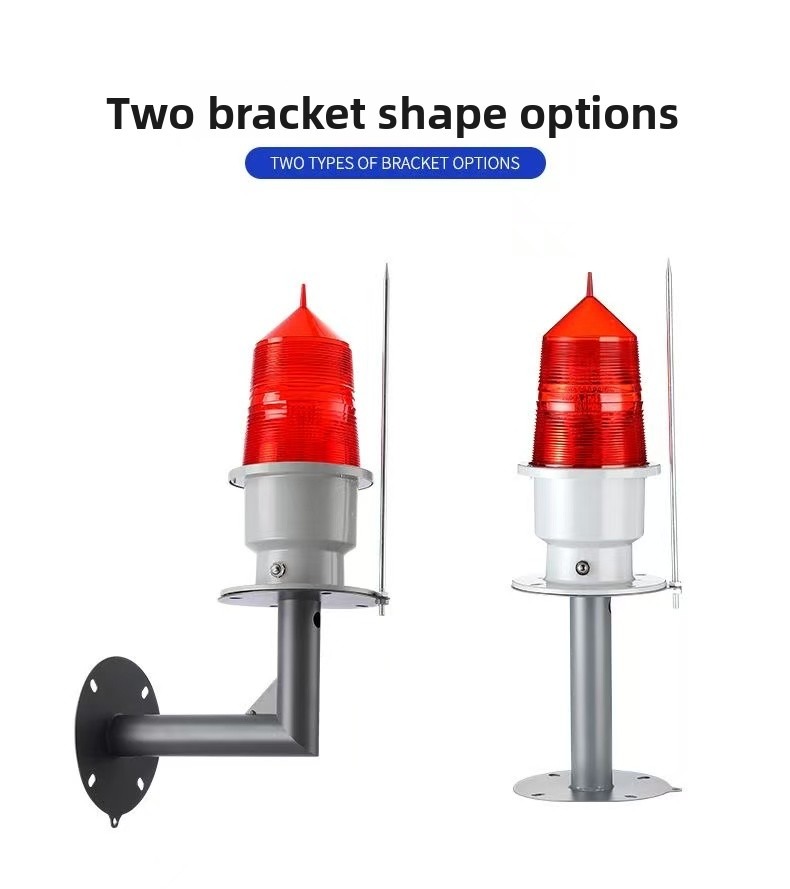

TGZ-122LED Solar Aviation Obstruction Light
Professional-grade aviation obstruction light designed for buildings 45-60 meters high. Features high-intensity red LED with 1600cd luminous intensity visible up to 6.4km. Available in solar-powered (TGZ-122LED) and AC-powered (GZ-122LED) versions. Built with aluminum alloy body and polycarbonate PC lampshade for maximum durability in harsh outdoor conditions.
- Luminous intensity: 1600cd red (visible ~6.4km)

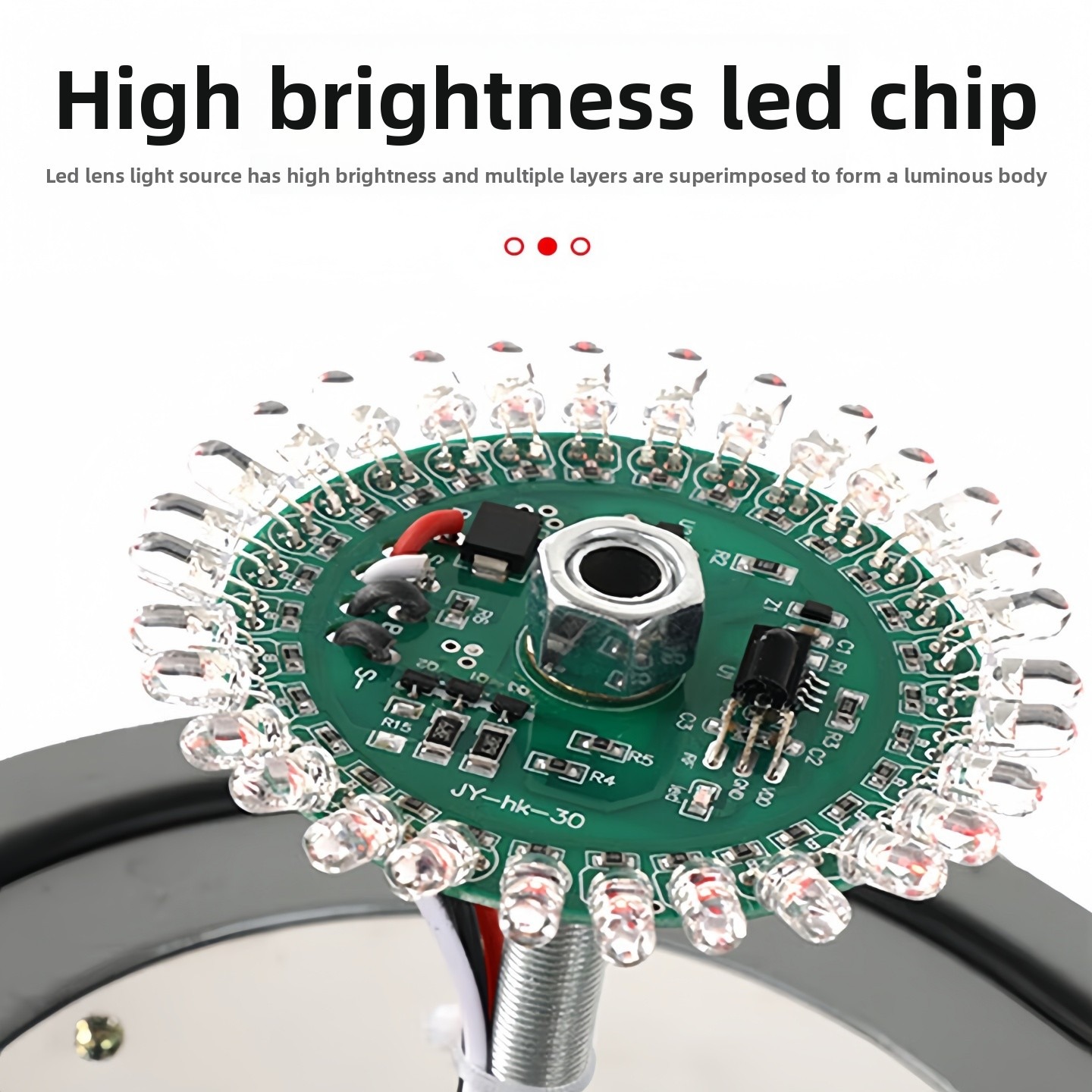

- Light source: Taiwan Epistar LED (>100,000 hrs life)
- Solar version: 15-20 days backup in rainy weather
- AC version: AC220V/50Hz or DC12-48V
- Protection: IP65 | Flash: 20-60 times/min (adjustable)

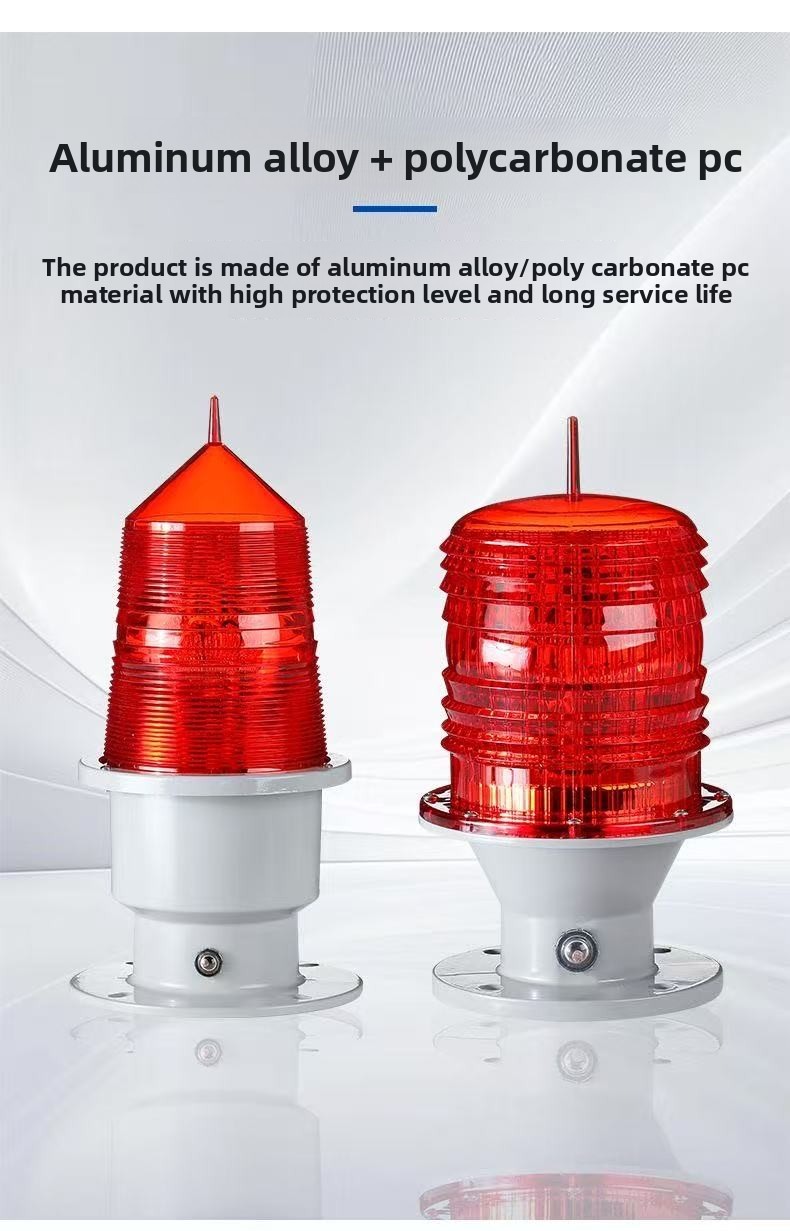

- Material: Aluminum alloy + PC lampshade
- Working temp: -40°C to +60°C, wind 240km/h
- Light control sensitivity: 50-200lx (adjustable)

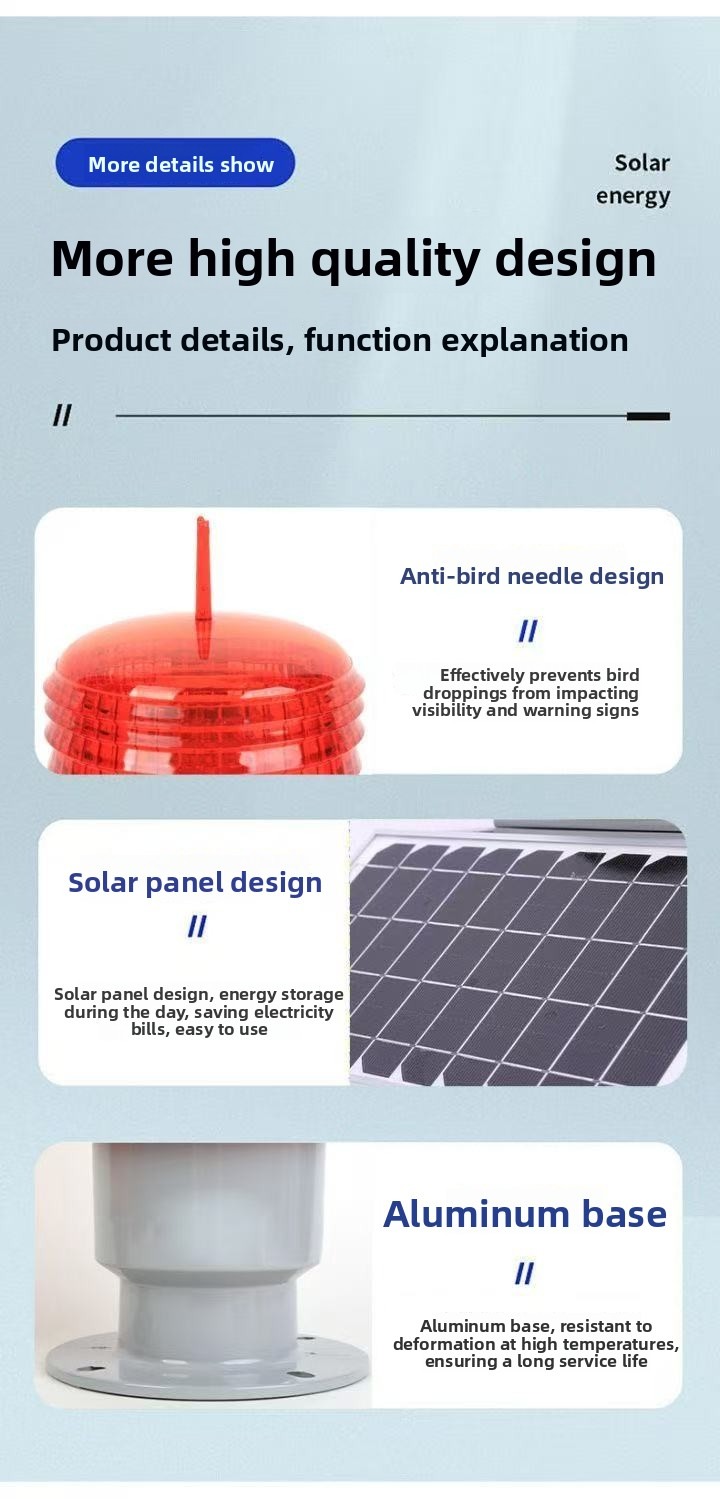

- Features: Anti-bird needle, lightning-proof, waterproof

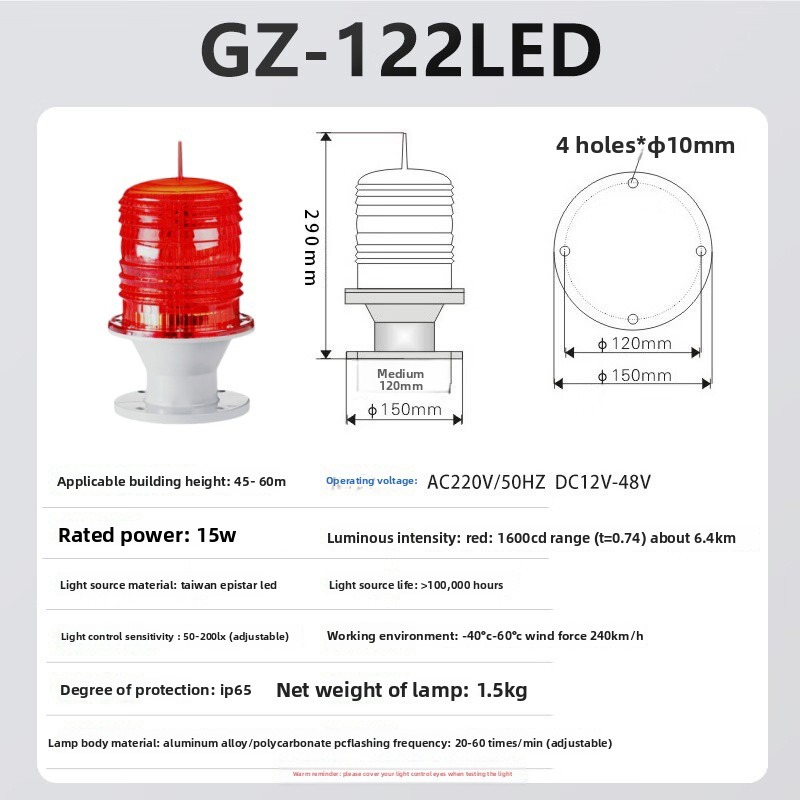

| Parameter | GZ-122LED (AC) | TGZ-122LED (Solar) |
|---|---|---|
| Model | GZ-122LED | TGZ-122LED |
| Type | Aviation Obstruction Light | |
| Building Height | 45-60 meters | |
| Rated Power | 15W | |
| Voltage | AC220V/50Hz or DC12-48V | Solar powered (AC backup) |
| Luminous Intensity | Red: 1600cd (t=0.74) ~6.4km | |
| LED Source | Taiwan Epistar LED | |
| LED Lifespan | >100,000 hours | |
| Flash Frequency | 20-60 times/min (adjustable) | |
| Light Control | 50-200lx (adjustable) | |
| Protection | IP65 | |
| Lamp Body | Aluminum alloy + PC | |
| Net Weight | 1.5kg | 7kg |
| Dimensions | 290mm(H) × 150mm(D) | 460mm(H) × 350mm(W) |
| Mounting | 4×Φ10mm | 4×Φ12mm |
| Working Temp | -40°C to +60°C | |
| Rainy Backup | N/A (direct power) | 15-20 days |
Product Features
🏮 Lamp Hardware Parts
Decorative metal lamp hardware — horn-shaped covers, shade caps and brass M10 swivel joints for pendant lamps, ceiling lamps, wall lamps and table lamps. Chrome, gold and polished copper finishes.

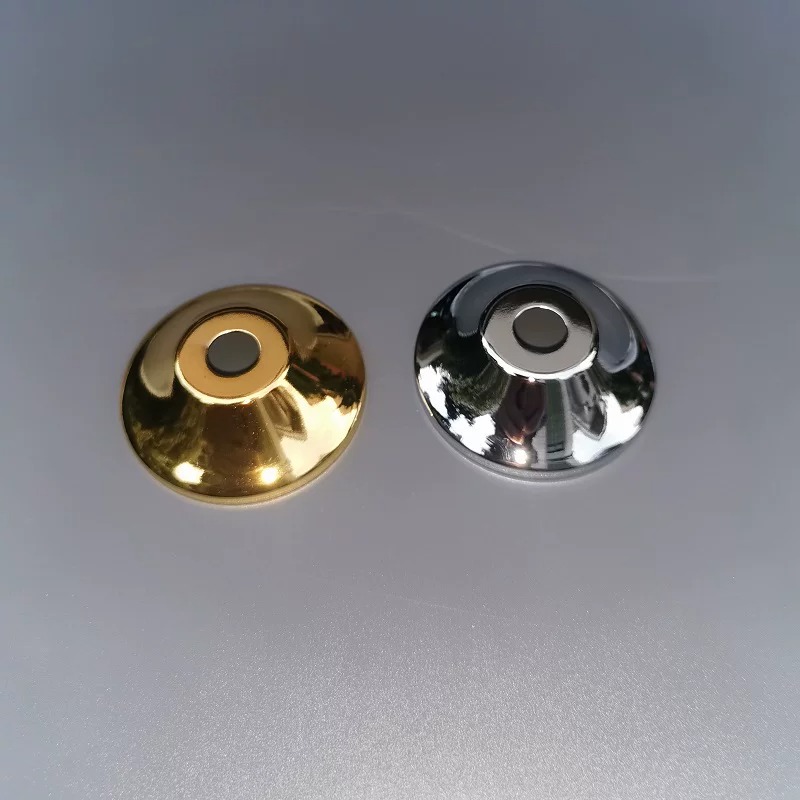

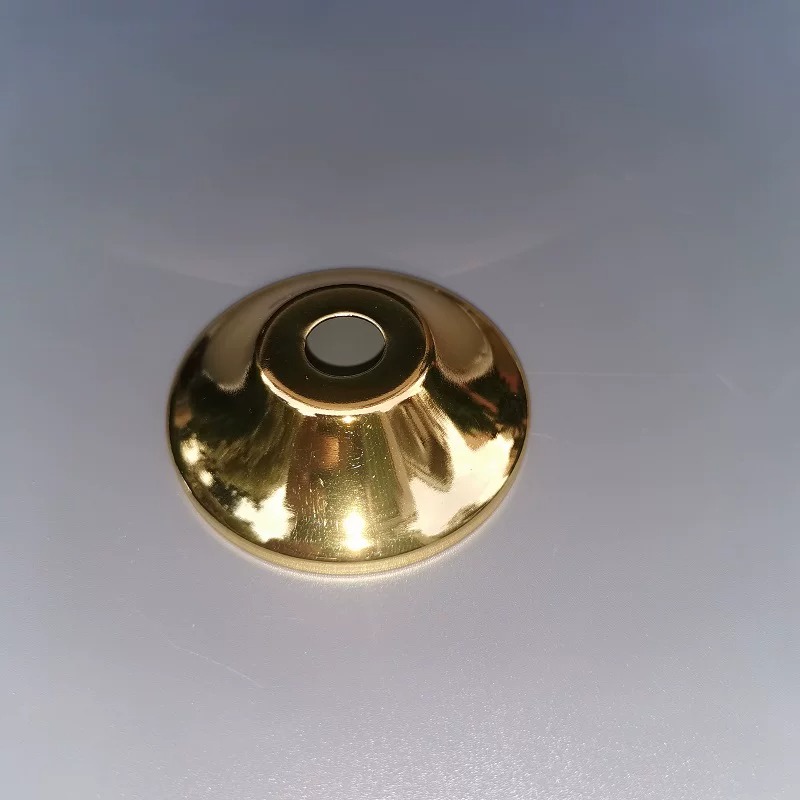

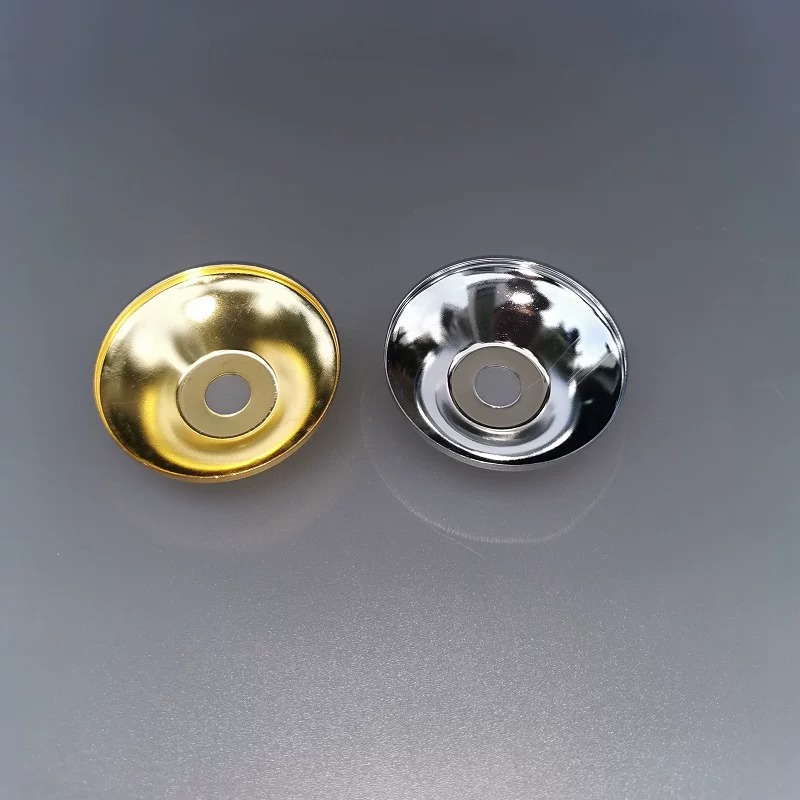

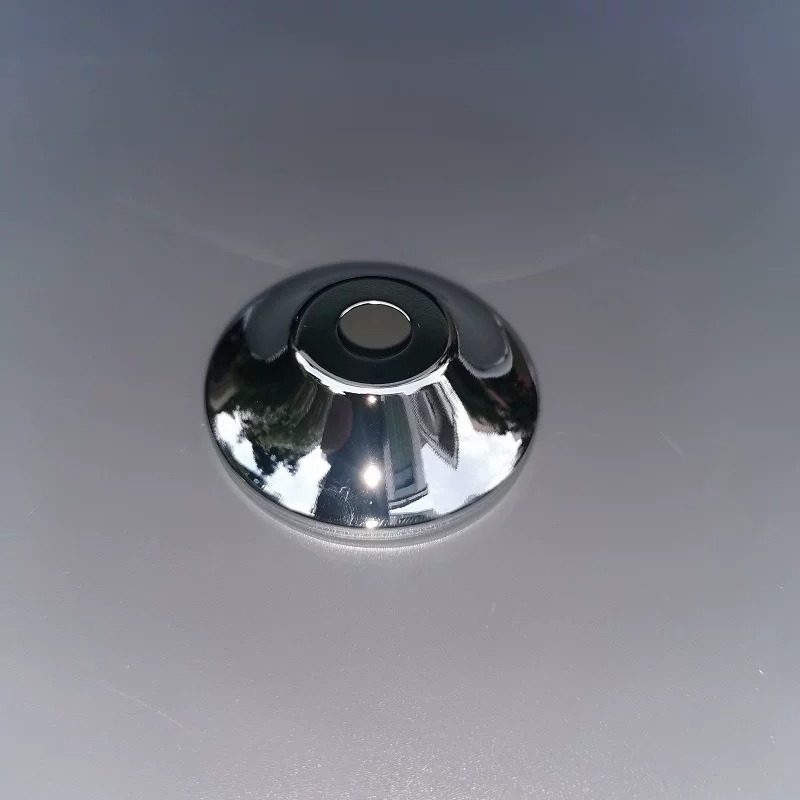

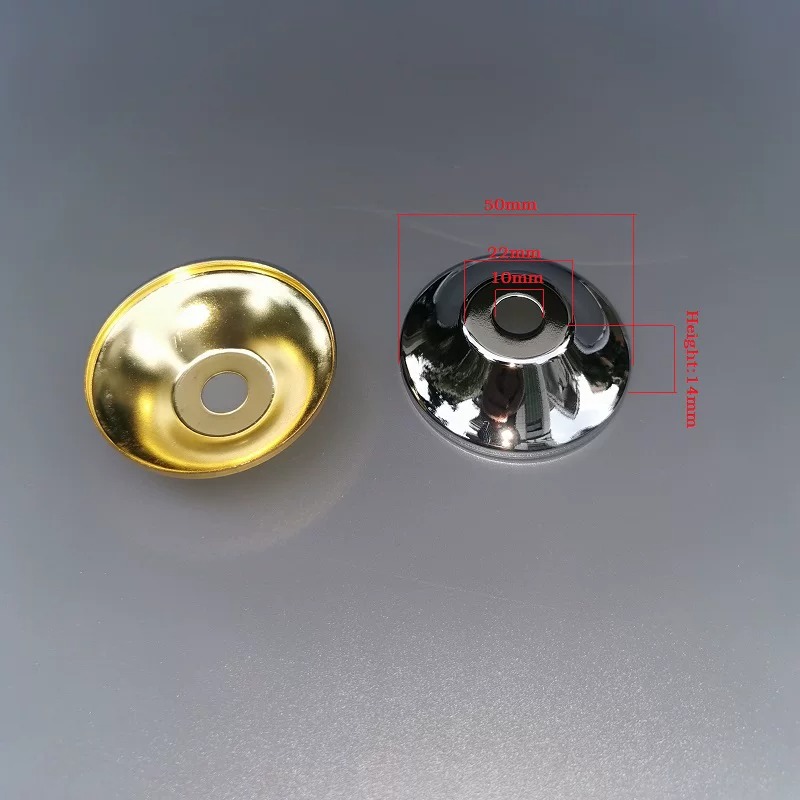

50mm Horn-Shaped Lamp Cover
Classic horn-shaped metal lamp cover made of iron with premium electroplated finish, available in Chrome (silver) and Gold (brass). Designed for pendant lamps, ceiling lamps, wall lamps and table lamps — adds a retro decorative touch while covering the lamp wiring area. Ideal for lamp repair, restoration and DIY lamp making.
- Diameter: 50mm | Height: 14mm
- Center hole: 10mm (fits standard lamp stems)
- Material: Iron, electroplated finish
- Colors: Chrome (silver) / Gold (brass)
- Application: pendant, ceiling, wall & table lamps
- Mechanical mounting — no wiring required
| Parameter | Specification |
|---|---|
| Product Type | Lamp Cover / Horn Shade Cap |
| Diameter | 50mm |
| Height | 14mm |
| Center Hole | 10mm |
| Material | Iron (electroplated) |
| Finish | Chrome (silver) / Gold (brass) |
| Weight | Approx. 20g |
| Installation | Mechanical mounting via center hole |
| Application | Pendant / Ceiling / Wall / Table lamps |
| Electrical Rating | N/A (non-electrical accessory) |
Product Views
601 Desk Lamp Accessory Kit
Replacement Shade + Flexible Gooseneck Arm + Metal Head + Square Base — White / Black
601 Desk Lamp Accessory Kit (DIY Replacement Parts)
Complete parts kit to rebuild or repair a classic 601 gooseneck desk lamp: lampshade (white or black), flexible metal gooseneck tube with threaded metal lamp head, and a square mounting base. Delivered unassembled — wire and assemble it yourself. Ideal for lamp repair, restoration and DIY desk lamp projects.
- Shade: painted metal, white or black, approx. 120mm
- Gooseneck: metal, OD 12mm, approx. 505mm
- Lamp head: metal, threaded connection
- Base: 40x40mm square, 4 mounting holes
- Assembled height: approx. 640mm
- DIY kit — wiring not included
| Parameter | Specification |
|---|---|
| Product Type | Desk Lamp Accessory Kit (replacement parts) |
| Model | 601 |
| Shade | Metal, painted White or Black |
| Shade Height | Approx. 120mm |
| Gooseneck Tube | Metal, OD 12mm, approx. 505mm long |
| Lamp Head | Metal, threaded connection |
| Base | Square metal, 40x40mm, 4 holes (25x25mm, 5mm) |
| Assembled Height | Approx. 640mm |
| Wiring | Not included (DIY assembly) |
Product Views
JH-485 M10 Brass Swivel Joint
Inner + Outer Thread Universal Rotating Lamp Connector — 27x59mm / 24x53mm — 2 Pcs per Pack

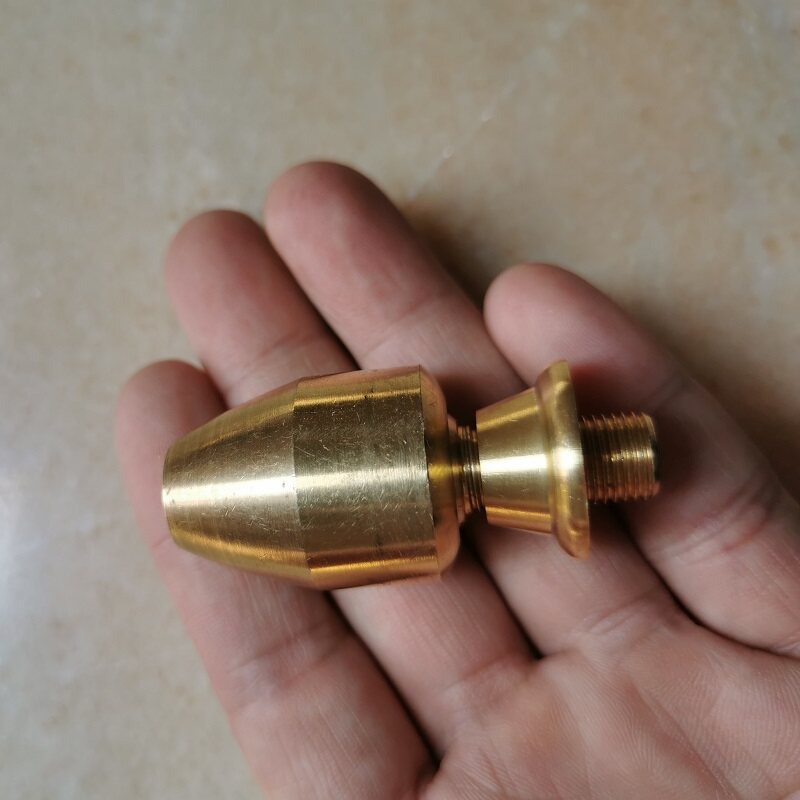

JH-485 M10 Brass Swivel Joint (Rotating Lamp Connector)
Brass M10 swivel joint for table lamps, wall lamps, pendant lamps and DIY lamp projects. One end has an M10 inner (female) thread, the other an M10 outer (male) thread, so the joint screws straight onto a standard M10 lamp tube or lamp arm and receives an M10 lamp head or stem. The swivel head turns so the lamp head can be set to any angle, and a 7mm through hole lets the lamp cable pass through the joint. Two sizes cover most lamp bodies: 27x59mm and 24x53mm. Non-electrical hardware — mechanical mounting only, no wiring.
- Model: JH-485
- Material: Copper (brass), polished golden finish

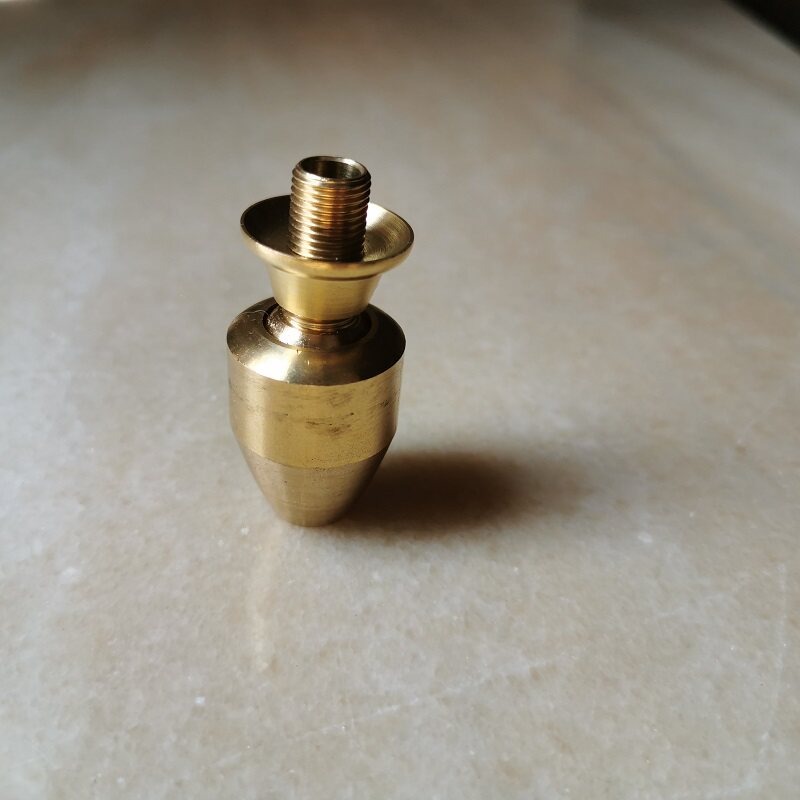

- Thread: M10 inner thread + M10 outer thread
- Sizes: 27x59mm / 24x53mm (diameter x length)
- Cable hole: 7mm through hole | Swivel rotating head
- Application: table, wall, pendant lamps, DIY lamp parts
- Supplied 2 pcs per pack — no wiring required
| Parameter | Specification |
|---|---|
| Product Type | Brass Swivel Joint / Universal Rotating Lamp Connector |
| Model | JH-485 |
| Material | Copper (brass alloy) |
| Finish | Polished golden copper, anti-oxidation |
| Size Options | 27 x 59mm / 24 x 53mm (diameter x length) |
| Thread | M10 inner thread + M10 outer thread |
| Cable Hole | 7mm through hole |
| Rotation | Swivel rotating head, adjustable angle |
| Mounting | Screw-on threaded connection (both ends) |
| Working Temperature | -20°C to +80°C |
| Pack Quantity | 2 pcs per pack |
| Tolerance | ±1-3mm (manual measurement) |
| Application | Table / Wall / Pendant lamps, lamp arms, DIY lamp parts |
| Electrical Rating | N/A (non-electrical accessory) |
Product Views
JH-576 M10 Brass 90 Degree Swivel Joint
Corner Adapter with 270° Adjustable Rotating Head — M10 x 1.0mm Fine Thread (Male + Female) — 4.8mm Cable Hole — 10 Pcs per Pack

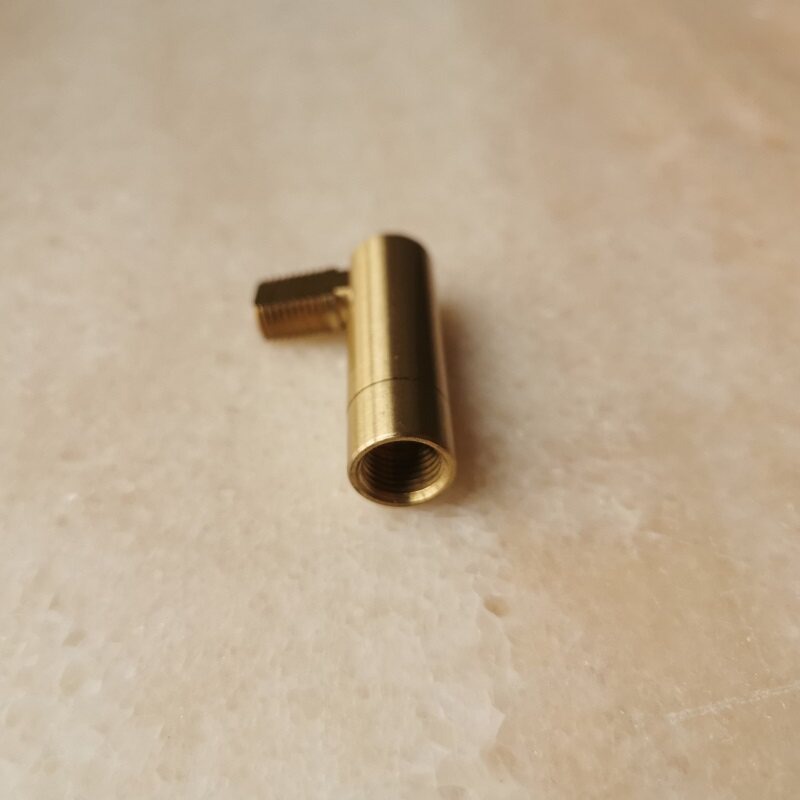

JH-576 M10 Brass 90 Degree Swivel Joint
Solid brass M10 corner adapter for lamp fittings. It bends a lamp arm through 90° and the swivel head turns through 270°, so wall lamps, sconces, pendant lamps and DIY fixtures can be aimed exactly where needed. One end is an M10 male (outer) thread, the other an M10 female (inner) thread — both M10 x 1.0mm fine pitch — so it screws straight onto standard M10 lamp tubes, lamp arms and lamp heads. A 4.8mm through hole accepts cable up to 4.5mm, and the polished, oil-sealed brass finish keeps its golden colour and resists tarnish. Non-electrical hardware — mechanical mounting only, no wiring. Supplied 10 pcs per pack.
- Model: JH-576 — M10 brass swivel joint / corner adapter
- Material: brass (copper alloy), polished + oil-sealed
- Thread: M10 x 1.0mm fine pitch — male end + female end
- Adjustment: 90° elbow bend + 270° rotating head
- Through hole: 4.8mm (cable up to 4.5mm)
- Total length: approx. 54mm | Body dia.: approx. 12.5mm
- Female thread depth: approx. 8mm
- Application: wall lamps, sconces, pendant & table lamps, DIY
- Non-electrical part, supplied 10 pcs per pack
| Parameter | Specification |
|---|---|
| Model | JH-576 |
| Product Type | M10 brass swivel joint / 90° corner adapter |
| Material | Brass (copper alloy) |
| Finish | Polished + oil-sealed (anti-oxidation) |
| Thread | M10 x 1.0mm fine pitch — one male (outer) end + one female (inner) end |
| Adjustment | 90° elbow bend + 270° rotating head |
| Through Hole | 4.8mm inner bore — accepts cable up to 4.5mm |
| Total Length | Approx. 54mm |
| Body Diameter | Approx. 12.5mm |
| Female Thread Depth | Approx. 8mm |
| Mounting | Screw-on threaded connection (both ends) |
| Working Temperature | -20°C to +80°C |
| Electrical Rating | N/A (non-electrical part) |
| Pack Quantity | 10 pcs |
| Application | Wall lamps / sconces, pendant & table lamps, lamp arms, DIY lamp parts |
Product Views
🔌 Lighting Accessories
Universal fluorescent lamp starters for 4-65W tube lamps — plus E27 ceramic lamp holders with pre-attached wire for pendant, ceiling and wall lighting.

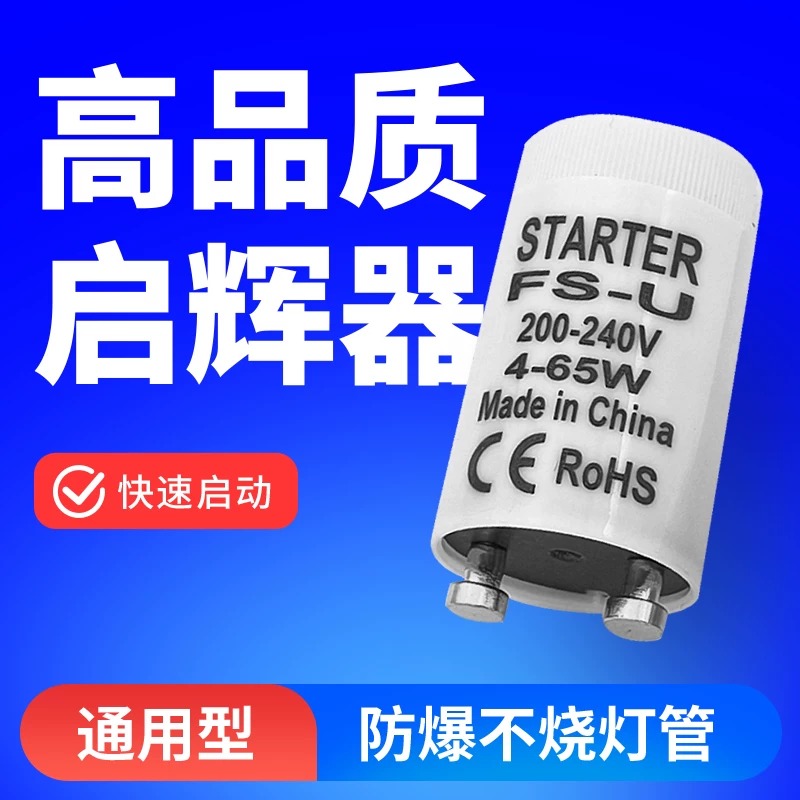

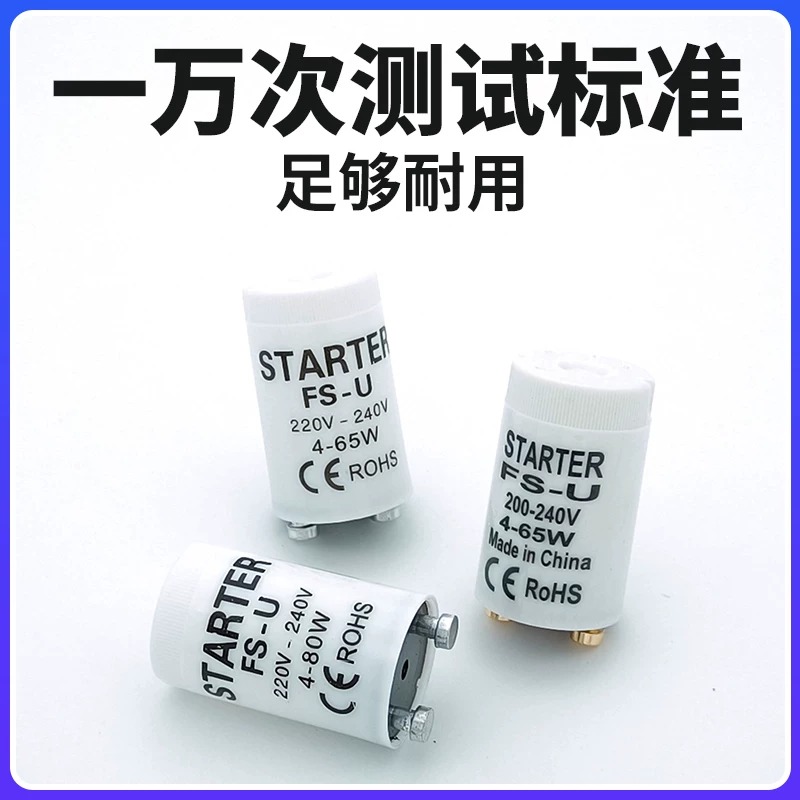

FS-U Fluorescent Lamp Starter

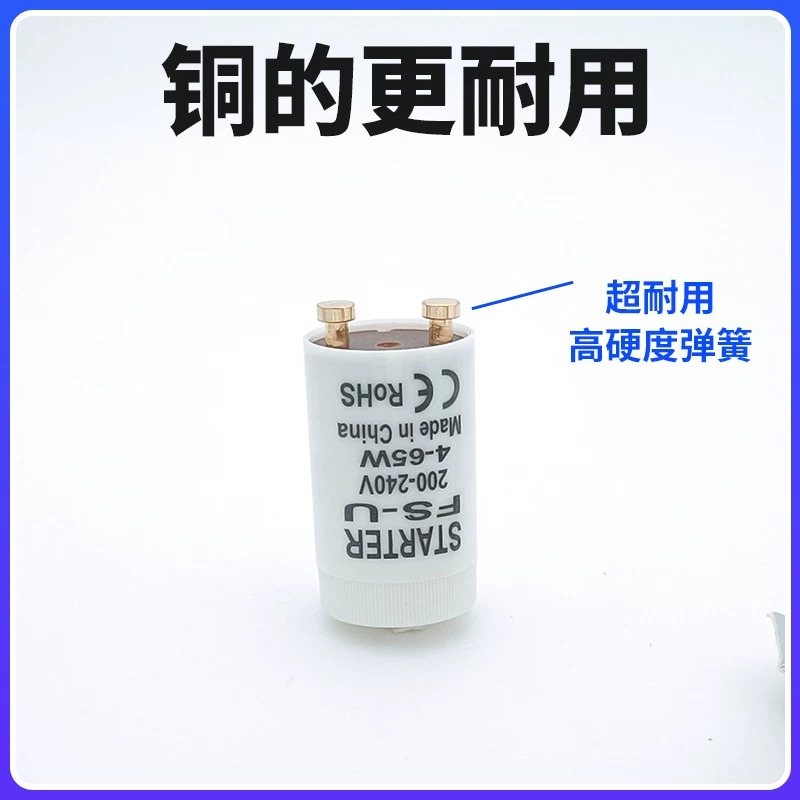

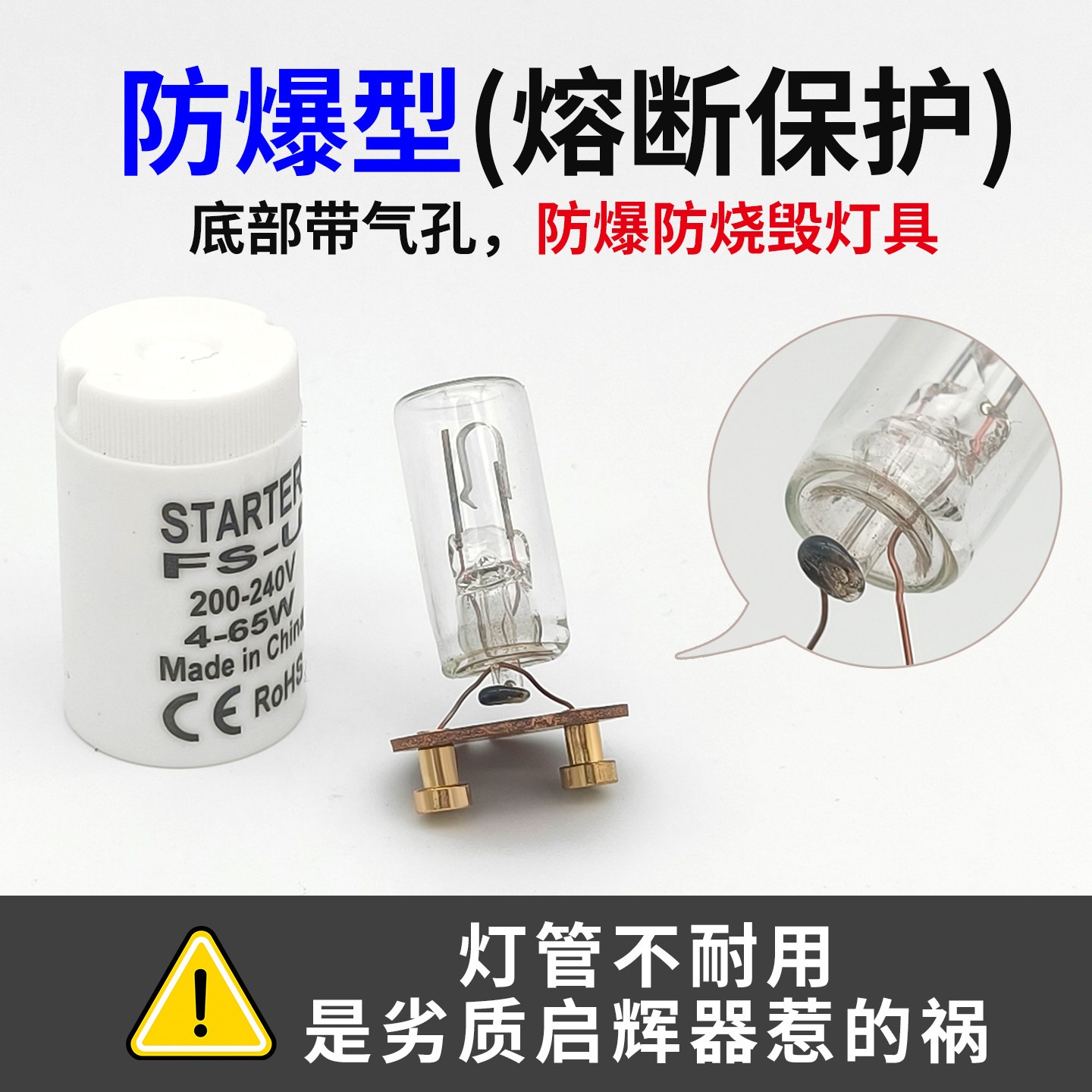

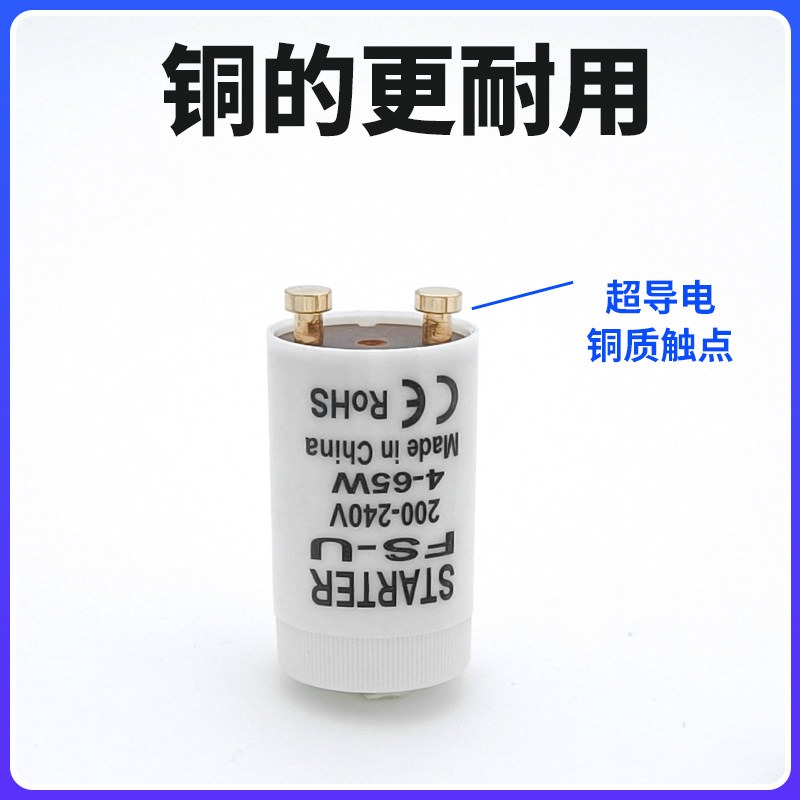

Universal fluorescent lamp starter (glow starter) for 4-65W tube lamps at 200-240V AC. Quick-start ignition with super-conductive copper contacts and a high-hardness spring rated for 8000+ start cycles. Explosion-proof vent design protects the tube and fixture, while CE & RoHS certification guarantees safe, environment-friendly performance. A direct drop-in replacement for worn-out starters in office, home and commercial fluorescent fixtures.
- Voltage: 200-240V AC | Power: 4-65W
- Super-conductive copper contacts

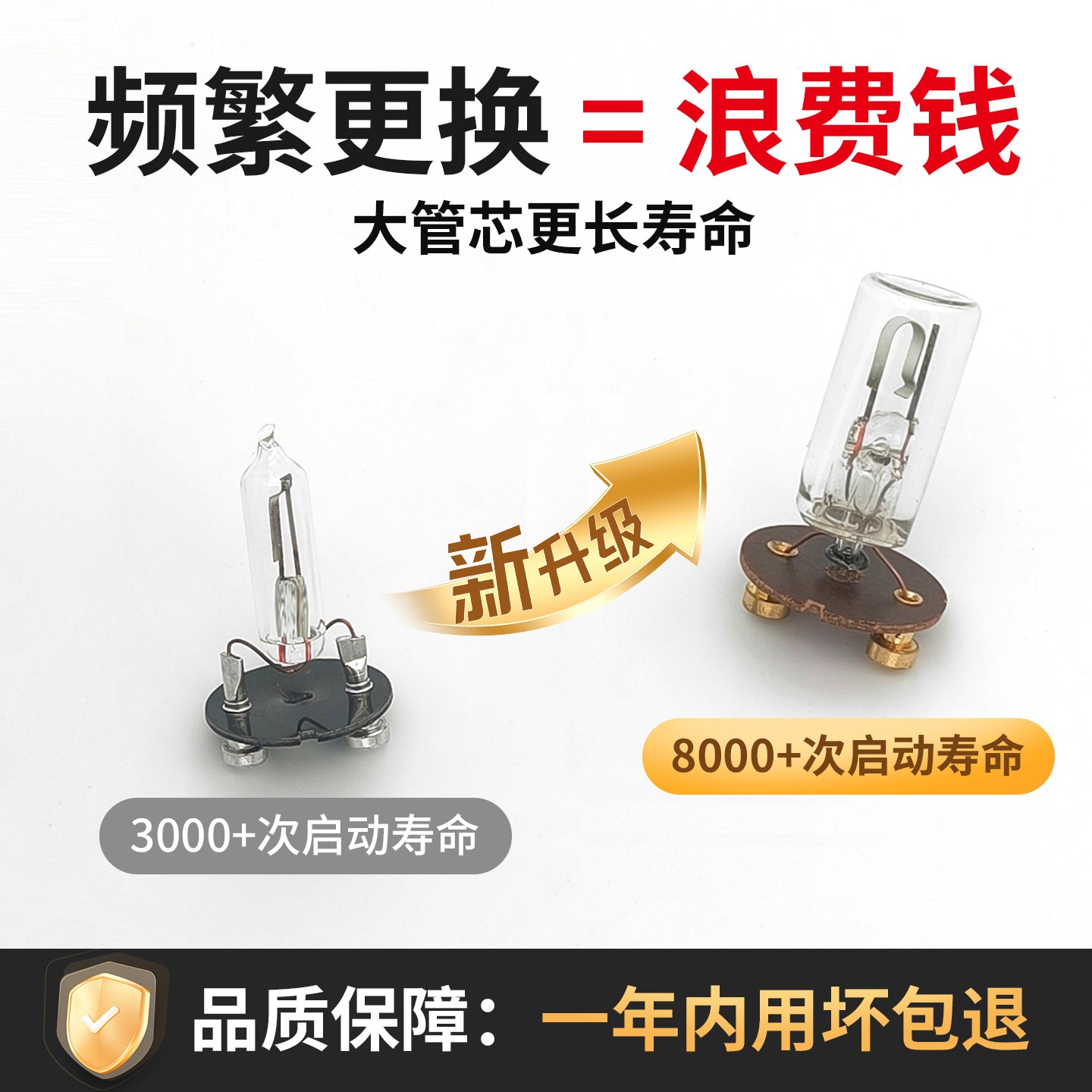

- 8000+ start cycles (tested to 10000)
- Explosion-proof vent design

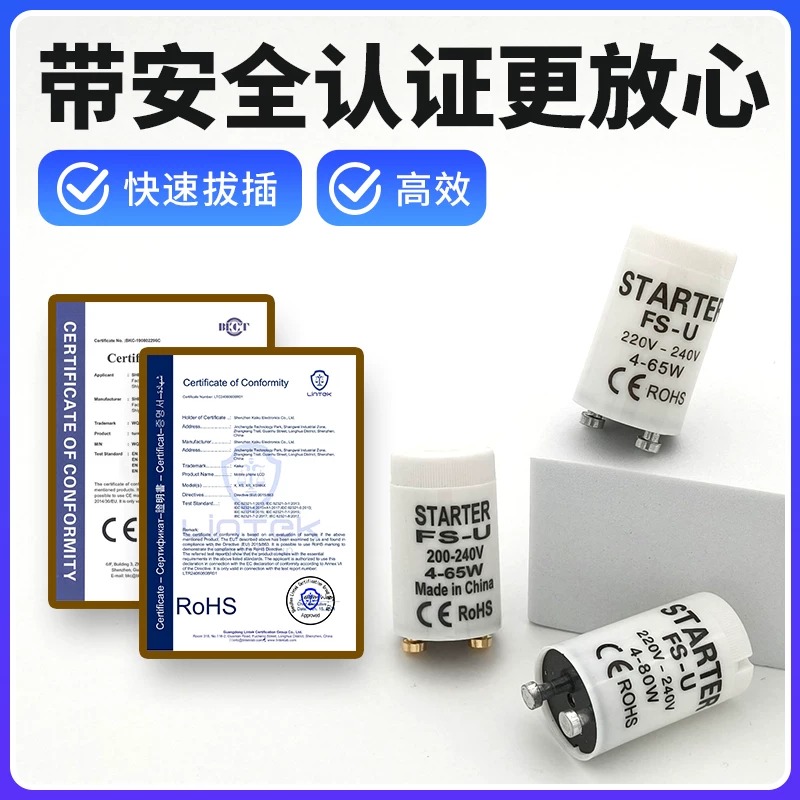

- CE & RoHS certified | Made in China

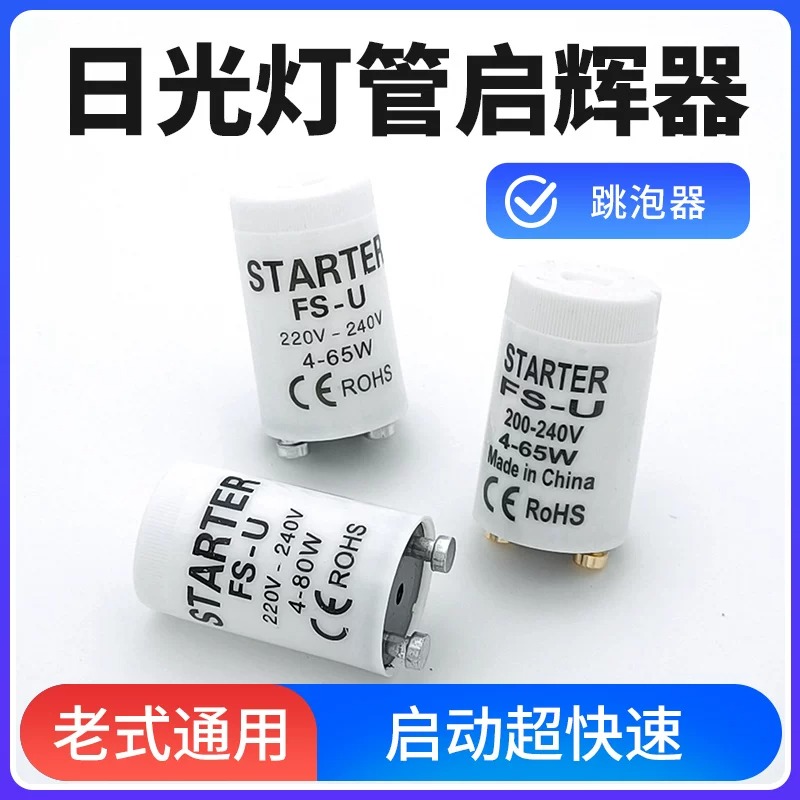

| Parameter | Specification |
|---|---|
| Model | FS-U |
| Type | Fluorescent lamp starter (glow starter) |
| Voltage | 200-240V AC |
| Power Range | 4-65W |
| Contacts | Super-conductive copper pins |
| Spring | High-hardness steel spring |
| Start Cycles | 8000+ (tested to 10000 cycles) |
| Housing | White flame-retardant plastic |
| Protection | Explosion-proof vent design |
| Certifications | CE, RoHS |
| Origin | Made in China |
Product Views
JH-600 E27 Ceramic Lamp Holder
Heat-Resistant Porcelain Screw Socket with 30cm Pre-Attached Wire — Copper Contact Ring — 4A / 250V AC — 5 Pcs per Pack
JH-600 E27 Ceramic Lamp Holder with 30cm Wire
Heat-resistant ceramic (porcelain) E27 screw socket supplied with a 30cm 2-core wire already attached — ready to fit straight out of the pack. The porcelain body will not burn, melt or yellow like a plastic holder, and the copper screw ring gives a firm, low-resistance contact for stable brightness. Rated 4A / 250V AC and CE marked, it suits E27 LED or incandescent bulbs in pendant lamps, chandeliers, ceiling lamps, wall lamps, candle lamps, bar lighting and DIY lamp projects. Sold 5 pcs per pack.
- Model: JH-600 — E27 ceramic lamp holder (screw socket)
- Base: E27 Edison screw, 27mm
- Body: heat-resistant ceramic / porcelain, grey white
- Contact ring: copper
- Wire: 2-core (black + white), 30cm, factory attached
- Rating: 4A / 250V AC | CE marked
- Body size: approx. 40 x 35mm (M4 hole)
- Application: pendant, chandelier, ceiling, wall, candle & bar lamps, DIY
- 5 pcs per pack — bulb not included
| Parameter | Specification |
|---|---|
| Model | JH-600 |
| Product Type | E27 ceramic lamp holder (screw socket) with wire |
| Base | E27 Edison screw, 27mm |
| Body Material | Ceramic (porcelain), grey white |
| Contact Ring | Copper |
| Wire | 2-core flexible wire, black + white, 30cm (factory attached) |
| Rated Voltage | 250V AC |
| Rated Current | 4A |
| Recommended Bulb | E27 LED or incandescent bulb (bulb not included) |
| Body Size | Approx. 40 x 35mm (M4 hole) |
| Mounting | Wire-through / fixture bracket mount (screws not supplied) |
| Certification | CE |
| Operating Temperature | -20°C to +120°C (ceramic body) |
| Pack Quantity | 5 pcs per pack |
| Tolerance | ±2mm (manual measurement) |
| Application | Pendant / chandelier / ceiling / wall / candle / bar lamps, DIY lamp making |
Product Views
🔦 Diving Flashlights
High-output underwater torches — D05 delivers 6000LM from 5 Cree XM-L2 LEDs, IPX8 waterproof to 80m, built for diving, snorkeling, night outdoor use and rescue operations.

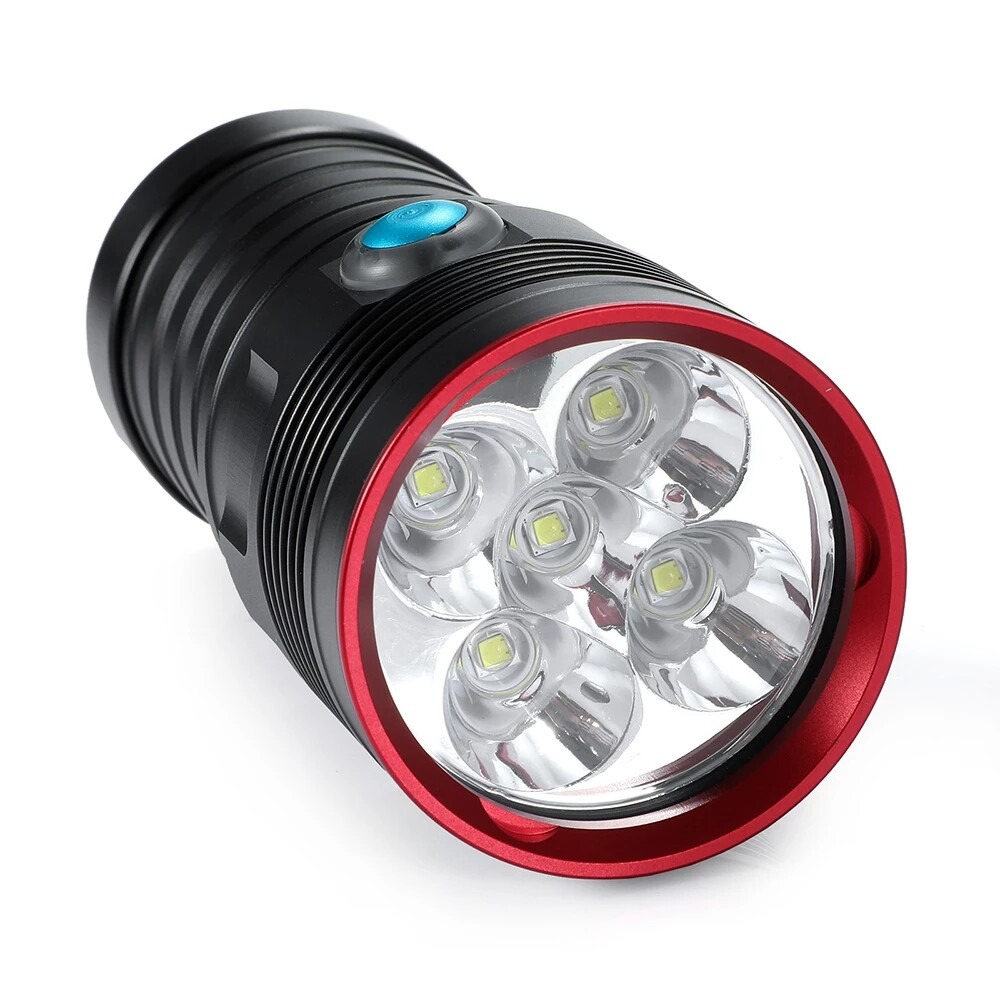

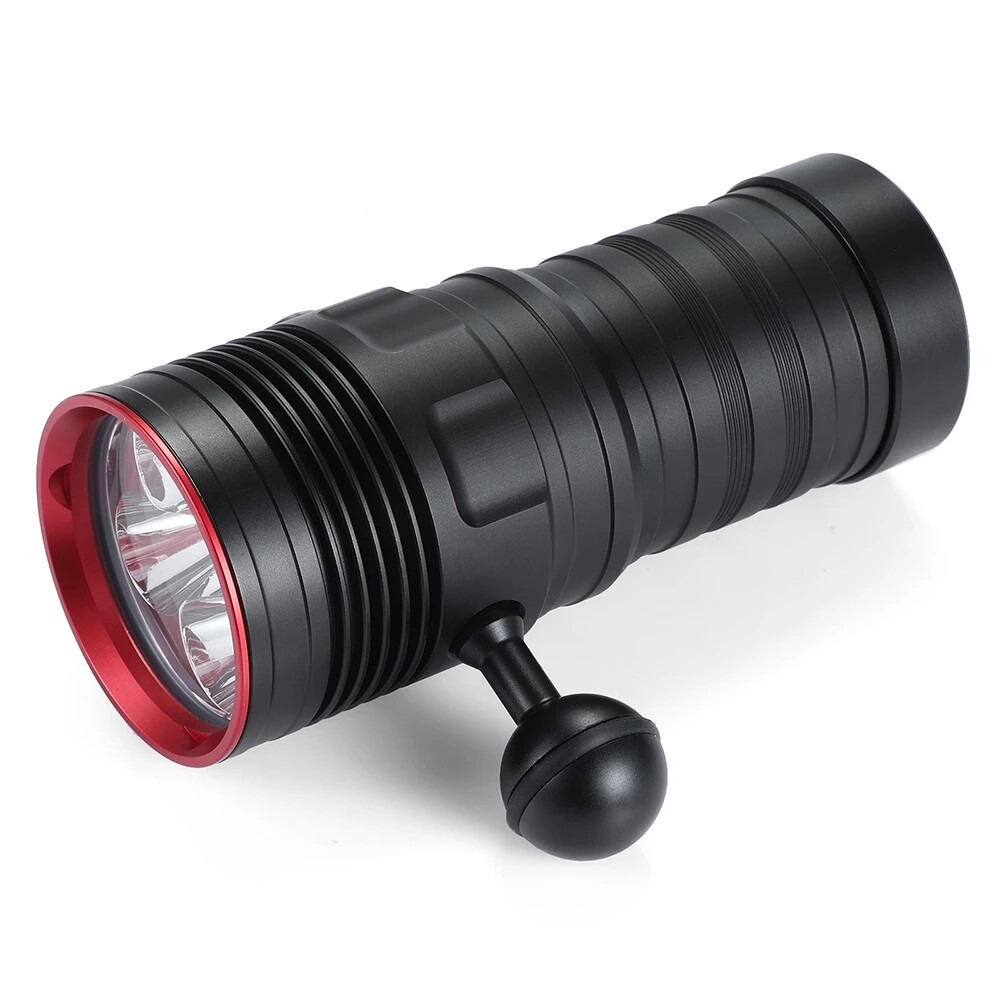

D05 LED Diving Flashlight

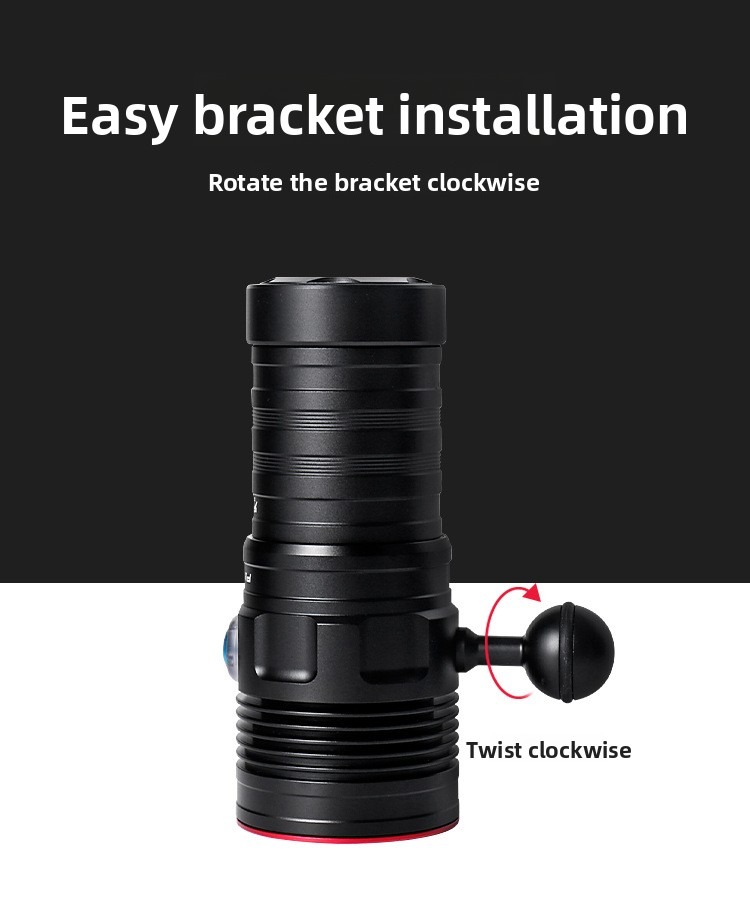

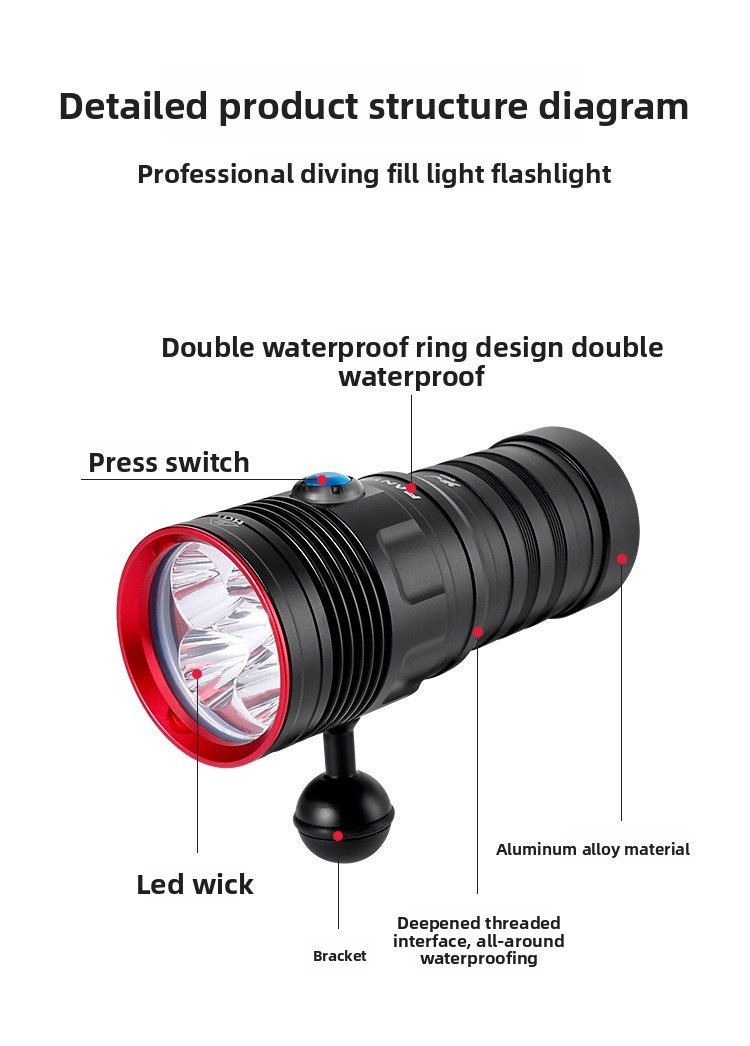

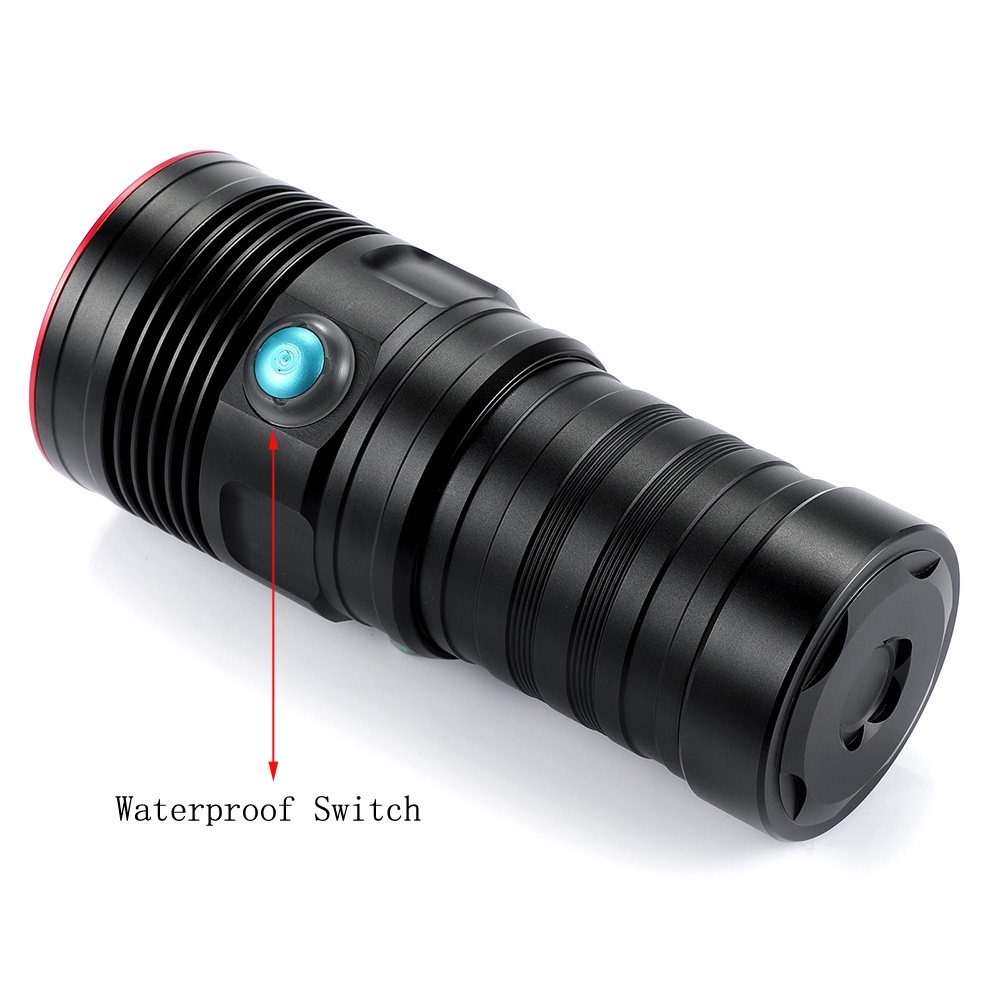

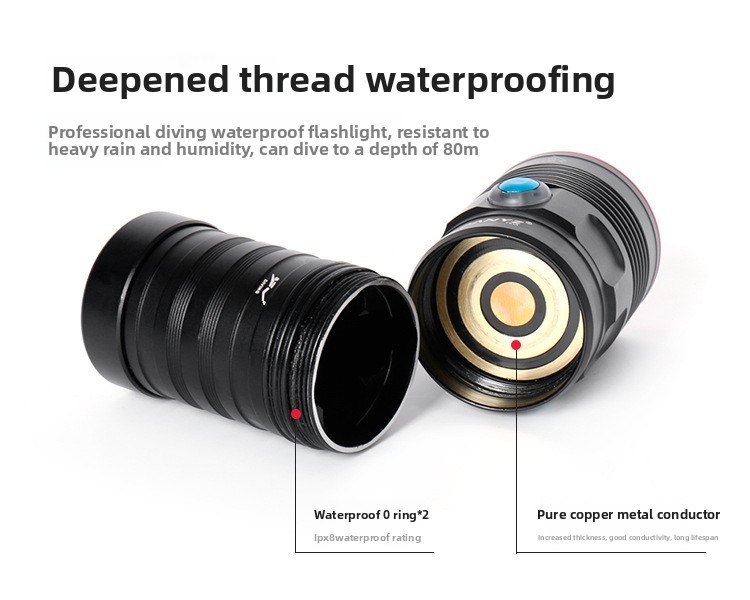

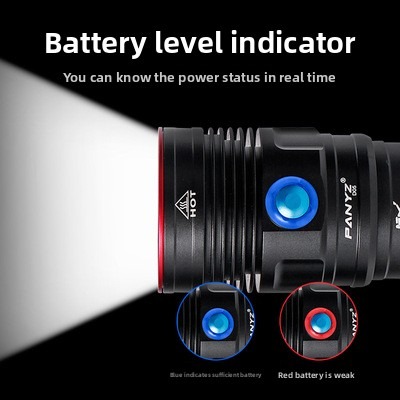

Professional underwater torch delivering up to 6000 lumens from 5 Cree XM-L2 LEDs. IPX8 waterproof rated to 80m depth with double waterproof rings and deepened threads. 6061 aviation-grade aluminum body with Type III hard anodizing resists saltwater corrosion. Built-in battery level indicator (blue = sufficient, red = low), three modes (High / Low / Strobe) via the waterproof side switch, and a rotatable bracket for dive rig or tripod mounting. Batteries and charger are sold separately — we can supply compatible 18650 batteries and a 4-bay smart charger on request.
- Output: max 6000LM | 5 x Cree XM-L2, 7000K
- Waterproof: IPX8, dive depth up to 80m
- Beam: 60° angle, up to 200m distance
- Battery: 4 x 18650 Li-ion (not included)
- Modes: High / Low / Strobe, side switch

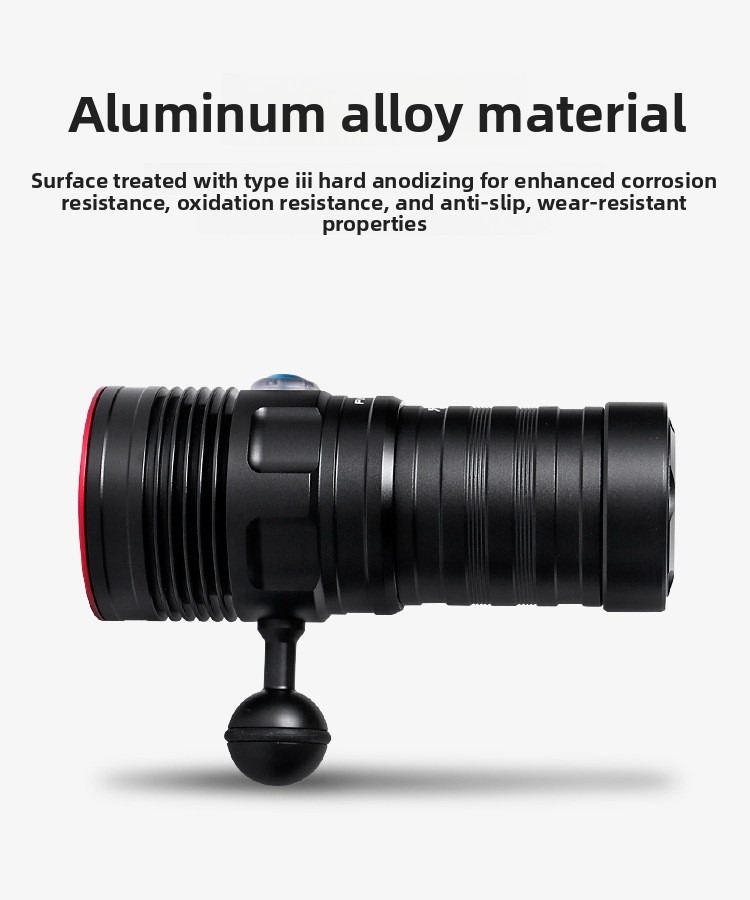

- 6061 aluminum, Type III hard anodized

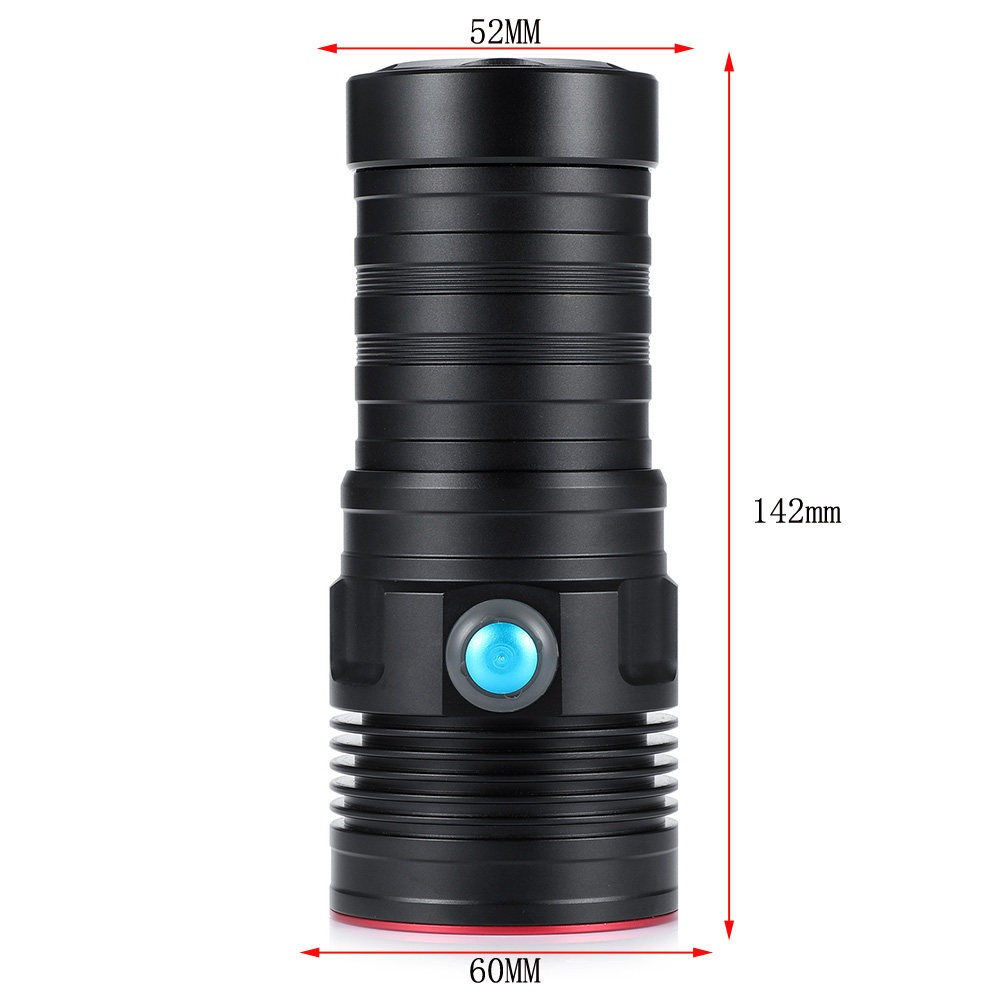

- Size: 142 x 60 x 53 mm | 450g

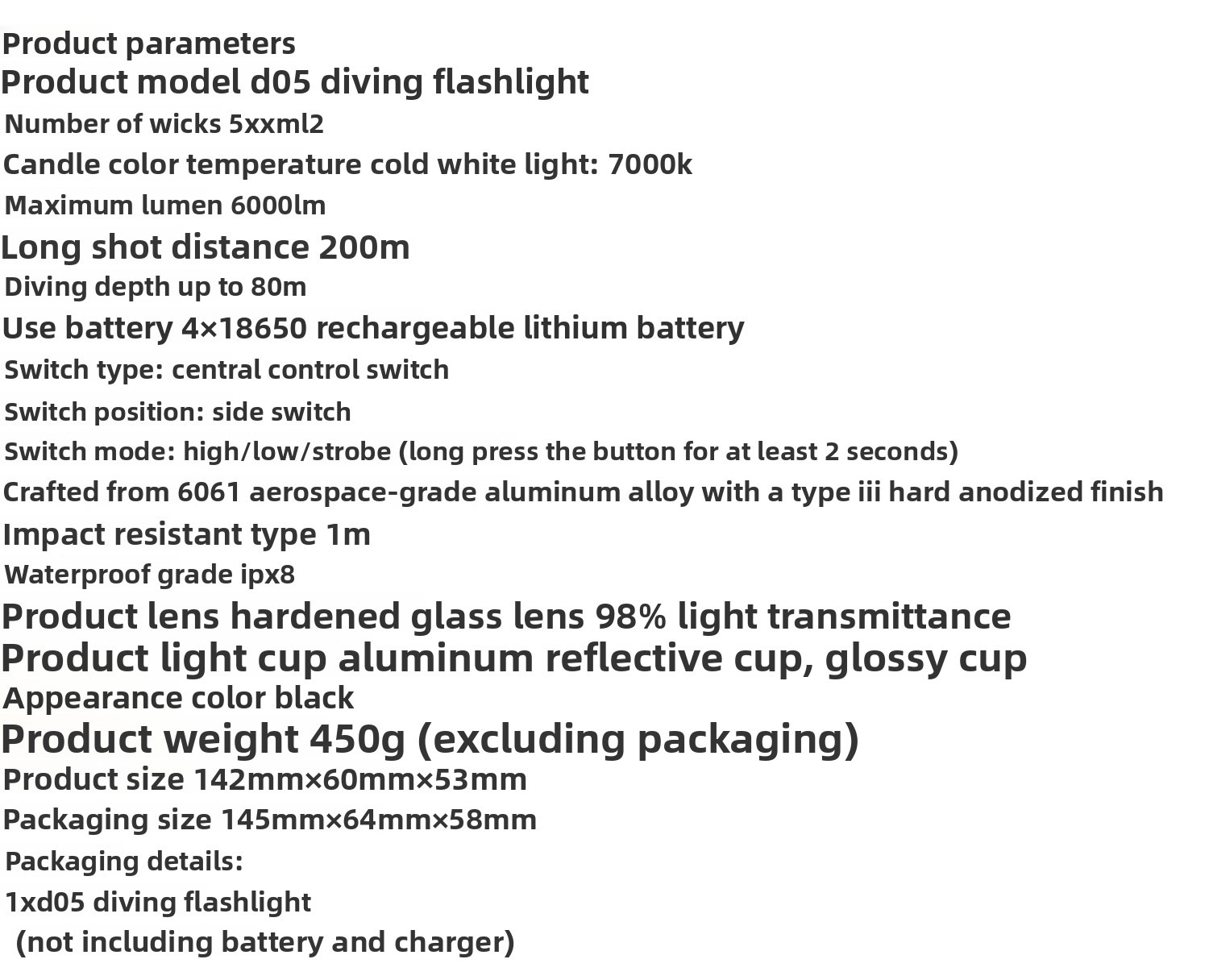

| Parameter | Specification |
|---|---|
| Model | D05 |
| LED | 5 x Cree XM-L2 |
| Color Temperature | 7000K (cold white) |
| Maximum Output | 6000 lm |
| Beam Angle | 60 degrees |
| Beam Distance | up to 200m |
| Dive Depth | up to 80m |
| Waterproof Rating | IPX8 |
| Drop Resistance | 1m |
| Battery | 4 x 18650 rechargeable Li-ion (not included) |
| Voltage | 3.7V |
| Switch | Waterproof side press switch |
| Modes | High / Low / Strobe (long-press 2s to cycle) |
| Battery Indicator | Blue = sufficient, Red = low battery |
| Lens | Tempered glass, 98% transmittance |
| Material | 6061 aviation aluminum, Type III hard anodized |
| Size | 142 x 60 x 53 mm |
| Weight | 450g (without batteries) |
Product Views
